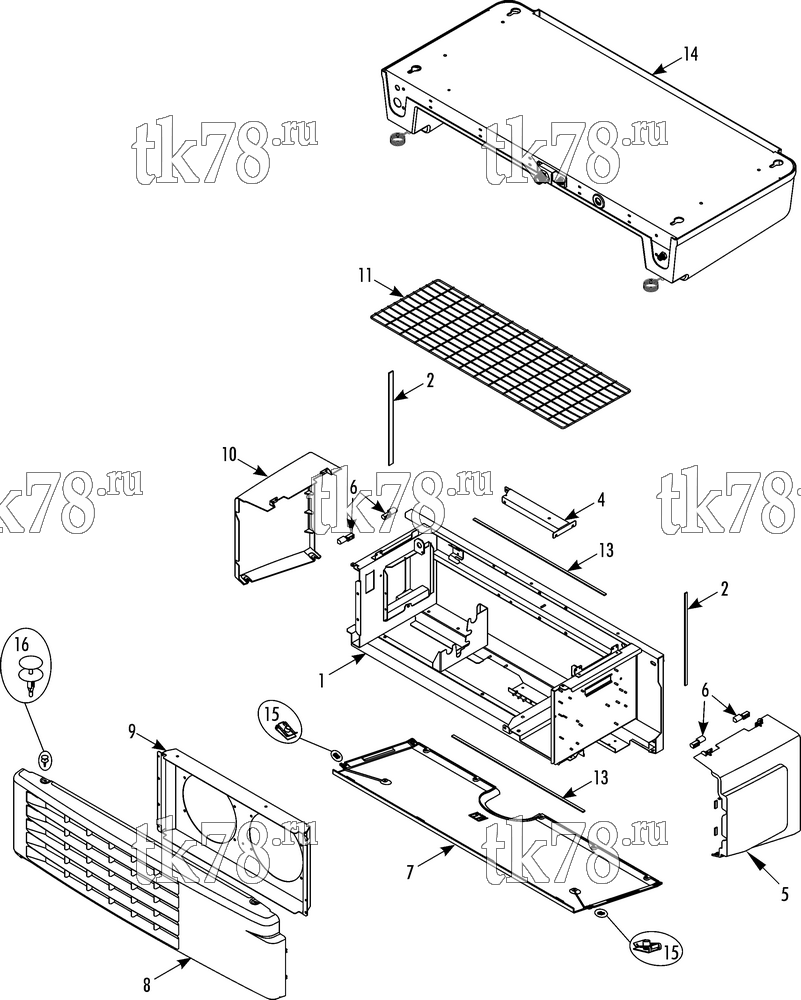

Установкa Thermo King V-500 Series DSR (Oct-2011 & after) схема FRAME GROUP – 256A0
Обновление от: 6/10/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8808 | FRAME - condenser | 1 | |
| 2 | 91-9989 | TAPE - sealant (3 x 20) | A/R | |
| 3 | 91-9991 | TAPE - sealant (3 x 10) | A/R | |
| 4 | 92-9249 | BRACKET - coil | 1 | |
| 51-2010 | SCREW - bracket | 5 | ||
| 51-2012 | NUT - captive | 2 | ||
| 5 | 98-8767 | COVER - control box | 1 | |
| 51-2010 | SCREW - cover | 2 | ||
| 6 | 92-9250 | HINGE - cover | 4 | |
| 51-2150 | SCREW - hinge | 16 | ||
| 7 | 98-8768 | COVER - bottom | 1 | |
| 51-2010 | SCREW - cover | 11 | ||
| 8 | 98-8765 | GRILLE - condenser | 1 | |
| 9 | 98-8809 | HOUSING - condenser coil | 1 | |
| 55-8375 | NUT - captive | 11 | ||
| 10 | 98-8766 | COVER - side (opposite of control box) | 1 | |
| 51-2010 | SCREW - cover | 2 | ||
| 11 | 98-8810 | GRILLE - condenser (top) | 1 | |
| 55-9825 | CLAMP - grille | 5 | ||
| 51-2010 | SCREW - grille | 5 | ||
| 12 | 55-9919 | SCREW - unit to truck wall | 4 | |
| 51-793 | FLATWASHER | 4 | ||
| 55-7000 | LOCKWASHER | 4 | ||
| 55-7348 | NUT | 4 | ||
| 13 | 33-2660 | STRIP - seal | 3 | |
| 14 | NSS | EVAPORATOR (V-600 see 270C2, V-500 see 192H7 - V-400 see 197C9) | 1 | |
| 15 | 55-9505 | CLIP - threaded (side covers) | 4 | |
| 16 | 55-9964 | DRIVE - lock (cover) | 2 |
