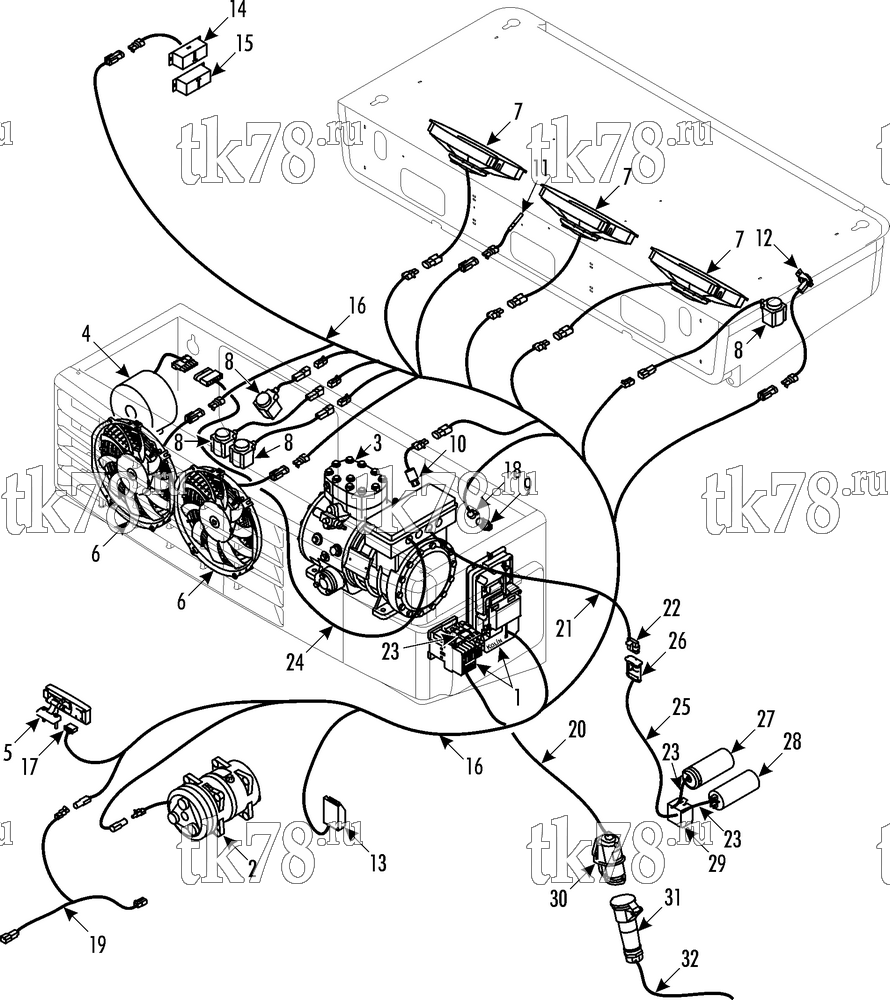

Установкa Thermo King V-500 AC 10, 20 DSR схема ELECTRICAL COMPONENTS (V-500 AC 20 1PH) – 219G5
Обновление от: 11/12/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROL BOX (see 219G7) | 1 | |
| 2 | 102-842 | COMPRESSOR (TM-16 XD, 12V, see 133F14) | 1 | |
|
10-TM-16 | Компрессор, TM-16, 12V 2A, R134A/R404A | 22 740 ₽ |
|
| 102-843 | COMPRESSOR (TM-16 XD, 24V, see 133F14) | 1 | ||
|
10-TM-16-24 | Компрессор, TM-16, 24V 2A, R134A/R404A | 22 740 ₽ |
|
| 3 | 102-882 | COMPRESSOR (230VAC, 1PH) | 1 | |
| 4 | 41-7943 | TRANSFORMER (see 219F6) | 1 | |
| 5 | 45-2072 | CONTROLLER - in-cab (see 191A6) | 1 | |
| 6 | 78-1375 | FAN - condenser (12V) | 2 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 690 ₽ |
|
|
| 78-1376 | FAN - condenser (24V) | 2 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 55-7340 | SCREW - condenser | 8 | ||
| 55-7404 | LOCKWASHER | 8 | ||
| 55-9826 | WASHER | 8 | ||
| 7 | 78-1373 | FAN - evaporator (12V) | 3 | |
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| 78-1374 | FAN - evaporator (24V) | 3 | ||
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 470 ₽ |
|
| 8 | 41-5789 | COIL - solenoid (12V) | 4 | |
| 41-5791 | COIL - solenoid (14V) | 4 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 760 ₽ |
|
| PP-41-5791 | Катушка соленоида 24V, V-Series | 1 830 ₽ |
|
|
| 9 | 41-5781 | TRANSDUCER | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 10 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 11 | 41-5784 | SENSOR - temperature | 1 | |
| 42-3067 OEM | Датчик температуры, V/C-Series | 13 780 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V/C-Series | 9 420 ₽ |
|
|
| 12 | 41-3136 | SWITCH - defrost | 1 | |
| 13 | 41-5785 | HOLDER - fuse | 1 | |
| 41-5786 | FUSE (40 amp, 32V) | 1 | ||
| 44-2792 | TERMINAL (yellow, 10) | 2 | ||
| 41-7856 | TERMINAL (yellow, dia 8/13) | 2 | ||
| 14 | 41-4266 | SWITCH - magnetic | 1 | |
| 15 | 44-8584 | MAGNET - door | 1 | |
| 51-792 | SCREW - switch & magnet | 4 | ||
| 16 | 41-7878 | HARNESS - condenser (for connector see 115D14, 112D9) | 1 | |
| 17 | 41-5804 | CONNECTOR (5-pin) | 1 | |
| 41-5805 | RETAINER | 1 | ||
| 18 | 41-5799 | CONNECTOR (female, 3 way) | 1 | |
| 19 | 41-7877 | HARNESS - connection (Nissan - DSR) | 1 | |
| 20 | 41-6032 | CABLE - mains | 1 | |
| 21 | 41-7868 | CABLE - power | 1 | |
| 22 | 41-6149 | CONNECTOR | 1 | |
| 23 | 41-7633 | HARNESS - control box | 1 | |
| 24 | 41-7636 | HARNESS - control box (for connectors see 115D14) | 1 | |
| 25 | 41-7634 | HARNESS - control box | 1 | |
| 26 | 41-6091 | CONNECTOR (male, 4-pin) | 1 | |
| 27 | 41-4327 | CAPACITOR (250-300 uF) | 1 | |
| 28 | 41-3785 | CAPACITOR (40 uF) | 1 | |
| 29 | 41-3735 | RELAY - starter | 1 | |
| 41-4483 | RESISTOR (15 kOhm) | 1 | ||
| 92-6063 | BRACKET - starting box | 1 | ||
| 30 | 41-3667 | RECEPTACLE - power (220/1/50, mates w/ 41-972) | 1 | |
| 51-1644 | SCREW - plug | 4 | ||
| 31 | 41-972 | PLUG - power (220/1/50, mates w/ 41-3667) | 1 | |
| 32 | 41-3778 | CABLE (3 x 2.5 1KV) | A/R | |
| 51-1645 | BOX - packing (PG-13,5) | 1 | ||
| 33-1646 | SEAL - rubber (PG-13,5) | 1 |
