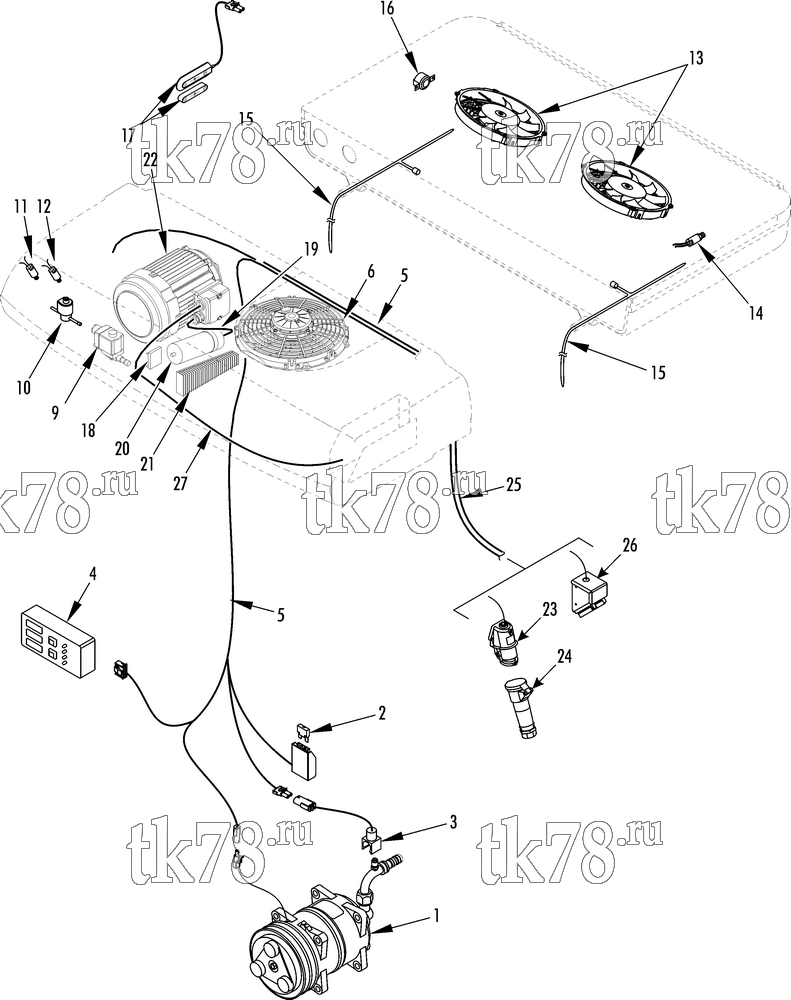

Установкa Thermo King V-300 схема ELECTRIC COMPONENTS – 233E1
Обновление от: 2/21/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR (see compressor grid) | 1 | |
| 2 | 41-5786 | FUSE (40 amp) | 1 | |
| 41-3665 | HOLDER - fuse | 1 | ||
| 3 | 44-9020 | SWITCH - thermo (jet cool) | 1 | |
| 4 | 45-1780 | CONTROLLER - in cab (M13) | 1 | |
| 5 | 41-8082 | HARNESS - main (V-300 10, see 250E8) | 1 | |
| 41-3776 | HARNESS - main (3 phase, before 10/01) | 1 | ||
| 41-5307 | HARNESS - main (3 phase, 10/01 - 12/07, see 250E9) | 1 | ||
| 41-8084 | HARNESS - main (3 phase, 12/07 & after) | 1 | ||
| 6 | 78-1185 | FAN - condenser (12V, draw) | 1 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 870 ₽ |
|
|
| 78-1186 | FAN - condenser (24V, draw) | 1 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 9 | 41-5047 | COIL - valve (12V) | 1 | |
| 41-5051 | COIL - valve (24V) | 1 | ||
| 10 | 66-5908 | VALVE - pilot (12V, jet cool) | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 66-7071 | VALVE - pilot (24V, jet cool) | 1 | ||
| 11 | 44-7992 | SWITCH - condenser pressure (200 psi) | 1 | |
| 12 | 44-8064 | SWITCH - HPCO (375 psi) | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 13 | 78-1181 | FAN - evaporator (12V, blow) | 2 | |
| 78-1182 | FAN - evaporator (24V, blow) | 2 | ||
| 14 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 15 | 41-9627 | HARNESS - drain heater (12V, before 2/12) | 2 | |
| 42-230 | HARNESS - drain heater (12V, 2/12 & after) | 2 | ||
| 41-3156 | HARNESS - drain heater (24V, before 2/12) | 2 | ||
| 42-395 | HARNESS - drain heater (24V, 2/12 & after) | 2 | ||
| 16 | 41-3136 | SWITCH - defrost termination | 1 | |
| 55-9900 | SCREW - switch | 2 | ||
| 17 | 40-907 | SWITCH - door | 1 | |
| 51-792 | SCREW - door switch | 4 | ||
| 18 | 41-8632 | HARNESS - rectifier (12V) | 1 | |
| 41-8633 | HARNESS - rectifier (24V) | 1 | ||
| 19 | 41-5970 | HARNESS - motor to start/run capacitor | 1 | |
| 20 | 41-3785 | CAPACITOR - motor (start/run, 40UF, see 161H9) | 1 | |
| 21 | 92-597 | HEATSINK - radiator (see 169C8) | 1 | |
| 22 | 41-5698 | MOTOR (208-230/3/60, 1.8 kW, R404A) | 1 | |
| 104-781 | MOTOR (400/3/50, 1.8 kW) | 1 | ||
| 104-782 | MOTOR (220/1/50, 1.5 kW) | 1 | ||
| 23 | 41-978 | RECEPTACLE - power (380/3/50, mates w/ 41-2026) | 1 | |
| 41-3667 | RECEPTACLE - power (220/1/50, mates w/ 41-972) | 1 | ||
| 55-9502 | SCREW - receptacle | 4 | ||
| 24 | 41-2026 | PLUG - power (3 ph) | 1 | |
| 41-972 | PLUG - power (220/1/50, mates w/ 41-3667) | 1 | ||
| 25 | 41-3780 | CABLE - power socket to unit (3 ph) | 1 | |
| 41-3779 | CABLE - power socket to unit (1 ph) | 1 | ||
| 26 | NSS | BOX - power receptacle (see 162A3) | 1 | |
| 27 | 41-4491 | CABLE - control box to motor (3 ph) | 1 |
