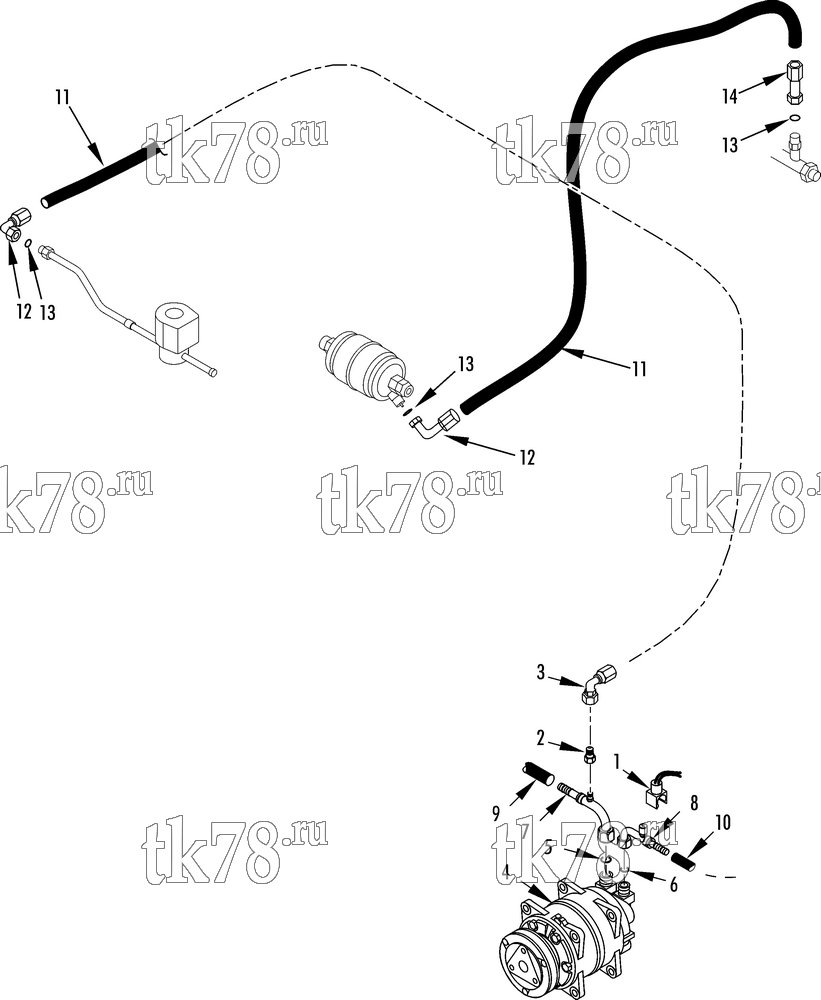

Установкa Thermo King V-300 схема JET COOL (V-300 10 & 20) – 169C4
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9020 | SWITCH - thermo (jet cool) | 1 | |
| 2 | 66-5029 | ORIFICE - jet cool | 1 | |
| 66-5028 | FILTER | 1 | ||
| 3 | 51-2417 | FITTING - 90 deg (1/4 flare, #4 hose) | 1 | |
| 4 | NSS | COMPRESSOR - TM15-XD (see 169C2) | 1 | |
| NSS | COMPRESSOR - TM16-XD (see 179A7) | 1 | ||
| 5 | 33-566 | O-RING - discharge | 1 | |
| 6 | 33-2115 | O-RING - suction | 1 | |
| 7 | 51-2432 | FITTING - 90 deg (w/ 7/16-20 charging port, #8) | 1 | |
| 11-7777 | VALVE (Schrader) | 1 | ||
| 8 | 51-2469 | FITTING - suction (V-200, #10) | 1 | |
| 51-2462 | FITTING - suction (V-300, #12 hose & #10 fitting) | 1 | ||
| 11-7777 | VALVE (Schrader) | 1 | ||
| 9 | 61-627 | HOSE - discharge (#8, see 165D6) | 1 | |
| 10 | 61-637 | HOSE - suction (V-200, #10, see 165D6) | 1 | |
| 61-643 | HOSE - suction (V-300, #12, 50 ft) | 1 | ||
| 11 | 67-1782 | HOSE (#4, 300 ft) | A/R | |
| 12 | 51-2437 | FITTING - 90 deg (o-ring seal, #4 hose) | 1 | |
| 13 | 33-1461 | O-RING (#4) | 4 | |
| 14 | 51-2465 | FITTING - straight (o-ring seal, #4 hose) | 1 |
