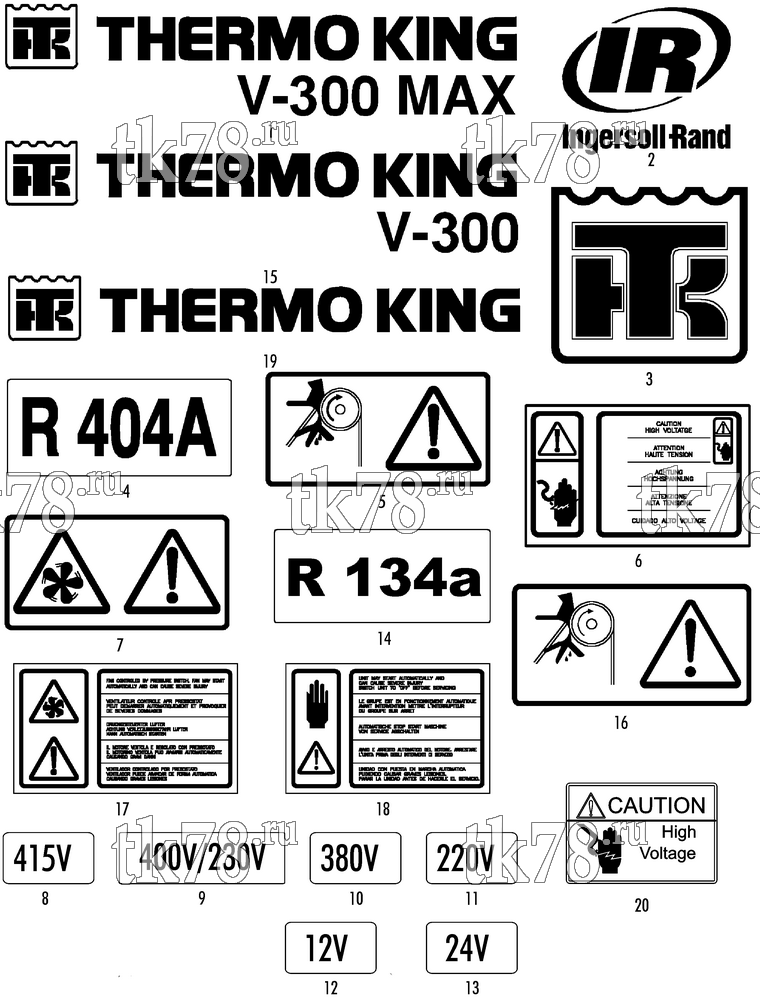

Установкa Thermo King V-300 схема NAMEPLATES – 168B3
Обновление от: 4/2/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-2846 | NAMEPLATE - V-300 MAX | 2 | |
| 2 | 92-1504 | NAMEPLATE - Ingersoll Rand | 1 | |
| 3 | 91-6958 | NAMEPLATE - TK Logo | 1 | |
| 4 | 91-7499 | NAMEPLATE - R404A | 1 | |
| 5 | 91-7128 | NAMEPLATE - Caution, Belt | 1 | |
| 6 | 92-590 | NAMEPLATE - Caution, High Voltage | 1 | |
| 7 | 92-589 | NAMEPLATE - Danger, Fan | 1 | |
| 8 | 92-620 | NAMEPLATE - Voltage (415/3/50) | 1 | |
| 91-6403 | NAMEPLATE - Voltage (380/3/50) | 1 | ||
| 92-1314 | NAMEPLATE - Voltage (230/3/60) | 1 | ||
| 92-621 | NAMEPLATE - Voltage (220/3/50) | 1 | ||
| 91-6695 | NAMEPLATE - Voltage (220/1/50) | 1 | ||
| 91-9758 | NAMEPLATE - Voltage (230/1/60) | 1 | ||
| 99-4530 | NAMEPLATE - Voltage (115V) | 1 | ||
| 9 | 92-619 | NAMEPLATE - Voltage (415/380/220) | 1 | |
| 10 | 91-7235 | NAMEPLATE - Voltage (380V) | 1 | |
| 11 | 91-8486 | NAMEPLATE - Voltage (220V) | 1 | |
| 12 | 92-1662 | NAMEPLATE - Voltage 12V) | 1 | |
| 13 | 92-2810 | NAMEPLATE - Voltage (24V) | 1 | |
| 14 | 92-920 | NAMEPLATE - R134a | 1 | |
| 15 | 92-1503 | NAMEPLATE - V-300 | 2 | |
| 16 | 92-1663 | NAMEPLATE - Caution, Fan | 1 | |
| 17 | 92-609 | NAMEPLATE - Caution, Fan | 1 | |
| 18 | 92-1664 | NAMEPLATE - Service | 1 | |
| 19 | 91-9643 | NAMEPLATE - Thermo King (25 mm tall) | 1 | |
| 92-1902 | NAMEPLATE - Thermo King (15 mm tall) | 1 | ||
| 20 | 99-5307 | NAMEPLATE Caution High Voltage | 1 |
