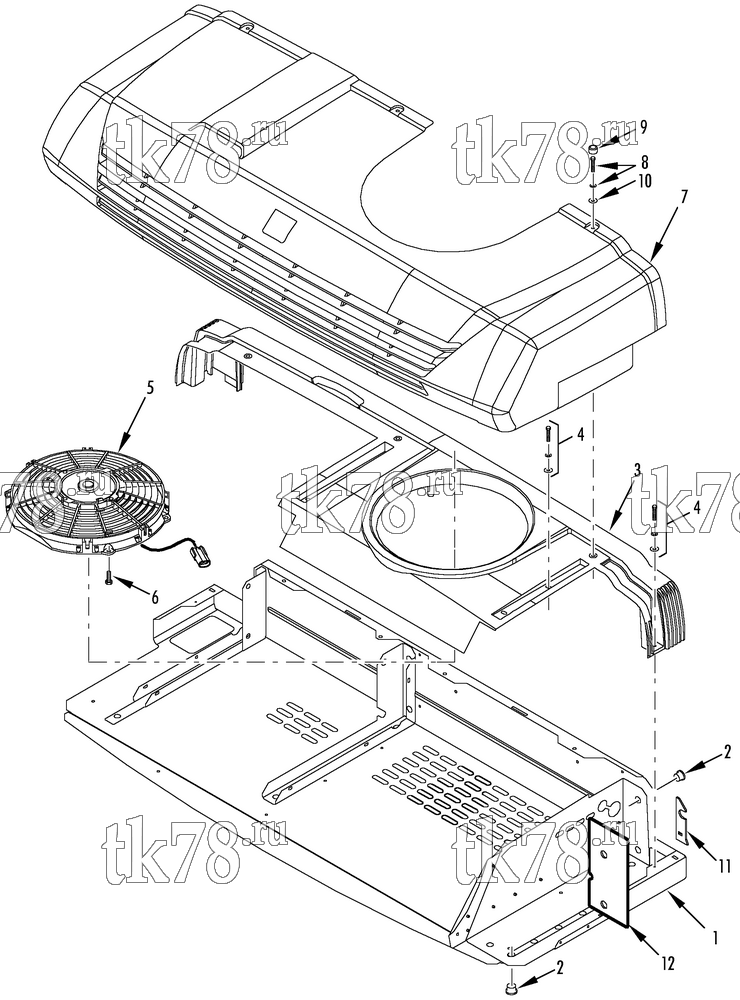

Установкa Thermo King V-300 схема GRILLE, FAN & FRAME GROUP – 168B1
Обновление от: 6/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6071 | FRAME - condenser (V-300) | 1 | |
| 33-3284 | GROMMET (21 mm) | 1 | ||
| 33-2656 | GROMMET (65 mm) | 2 | ||
| 2 | 55-9493 | PLUG - cover | 12 | |
| 3 | 91-9857 | SPINNING - fan | 1 | |
| 4 | 55-9489 | SCREW - spinning (25 mm) | 4 | |
| 55-7407 | SCREW (16 mm) | 2 | ||
| 55-7366 | SCREW (20 mm) | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-9826 | FLATWASHER | 4 | ||
| 55-9512 | WASHER - cap | 2 | ||
| 5 | 78-1185 | FAN (12V) | 1 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 870 ₽ |
|
|
| 78-1186 | FAN (24V) | 1 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 6 | 55-9489 | SCREW - fan | 4 | |
| 7 | 91-9527 | COVER - condenser | 1 | |
| 8 | 55-7387 | SCREW - cover | 3 | |
| 55-9490 | WASHER - spring | 3 | ||
| 9 | 55-9491 | CAP - cosmetic | 3 | |
| 10 | 55-9492 | WASHER - cosmetic | 3 | |
| 11 | 33-3923 | SEAL | 1 | |
| 12 | 33-3924 | SEAL | 1 |
