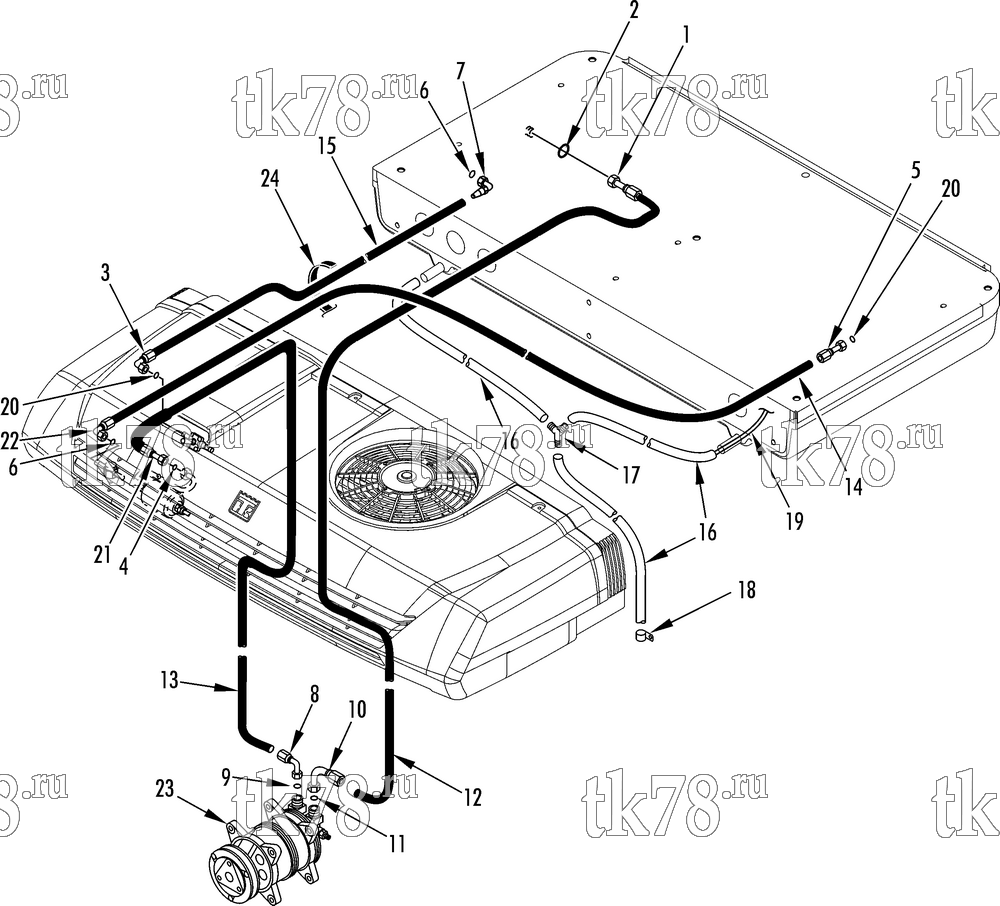

Установкa Thermo King V-300 схема HOSE CONNECTIONS (TK2000, V-300 10 & 30) – 168A8
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 51-2448 | FITTING - 90 deg (V-200, #10 hose) | 1 | |
| 51-2488 | FITTING - 90 deg (V-300, #12 hose x #10 fitting) | 1 | ||
| 51-2503 | FITTING - straight (V-300, #12 hose x #10 fitting) | 1 | ||
| 3 | 51-2436 | FITTING - 90 deg (o-ring seal, #6 hose) | 2 | |
| 2 | 33-2115 | O-RING (5/8, #10) | 1 | |
| 51-2482 | FITTING - straight (o-ring seal, #6 hose) | 1 | ||
| 4 | 33-1015 | O-RING (3/8, #6) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 5 | 51-2465 | FITTING - straight (o-ring seal, #4 hose) | 2 | |
| 6 | 33-1461 | O-RING (5/16, #4) | 2 | |
| 7 | 51-2492 | FITTING - 90 deg (expansion valve, #6) | 1 | |
| 8 | 51-2432 | FITTING - discharge (w/ charging port, #8) | 1 | |
| 9 | 33-2350 | O-RING - discharge (7/16) | 1 | |
| 10 | 51-2469 | FITTING - suction (V-200, #10) | 1 | |
| 51-2462 | FITTING - suction (V-300, #12 hose & #10 fitting) | 1 | ||
| 11 | 33-672 | O-RING - suction (9/16) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 12 | 67-1710 | HOSE (V-200, #10, 5/8 x 300 ft) | A/R | |
| 61-637 | HOSE (V-300, #12, 50 ft) | A/R | ||
| 13 | 67-1709 | HOSE (#8, 1/2 x 300 ft) | A/R | |
| 61-627 | HOSE (#8, 1/2 x 300 ft) | A/R | ||
| 14 | 67-1782 | HOSE (#4, 1/4 x 50 ft) | A/R | |
| 15 | 67-1708 | HOSE (#6, 3/8 x 300 ft) | A/R | |
| 61-617 | HOSE (#6, 3/8 x 50 ft) | A/R | ||
| 16 | 11-9223 | HOSE - drain (15 x 21 x 3.5 m) | 1 | |
| 17 | 55-9258 | HOSE - connection (Y) | 1 | |
| 33-2660 | TAPE - sealant | 3 | ||
| 18 | 92-1690 | CLAMP (50 mm) | 2 | |
| 91-6692 | CLAMP (45 mm) | 5 | ||
| 92-1903 | CLAMP (22 mm) | 5 | ||
| 51-346 | SCREW - clamp | 12 | ||
| 19 | 41-9627 | HARNESS - drain heater (12V, before 2/12) | 2 | |
| 42-230 | HARNESS - drain heater (12V, 2/12 & after) | 2 | ||
| 41-3156 | HARNESS - drain heater (24V, before 2/12) | 2 | ||
| 42-395 | HARNESS - drain heater (24V, 2/12 & after) | 2 | ||
| 20 | 33-1015 | O-RING (3/8 id, #6) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 21 | 51-2441 | FITTING - o-ring seal (straight, #8) | 1 | |
| 22 | 51-2437 | FITTING - 90 deg (o-ring seal, #4 hose) | 1 | |
| 23 | NSS | COMPRESSOR - TM15-XD (see 169C2) | 1 | |
| NSS | COMPRESSOR - TM16-XD/HD/DM (see 179A7) | 1 | ||
| 24 | 33-1216 | GROMMET - hose | 1 |
