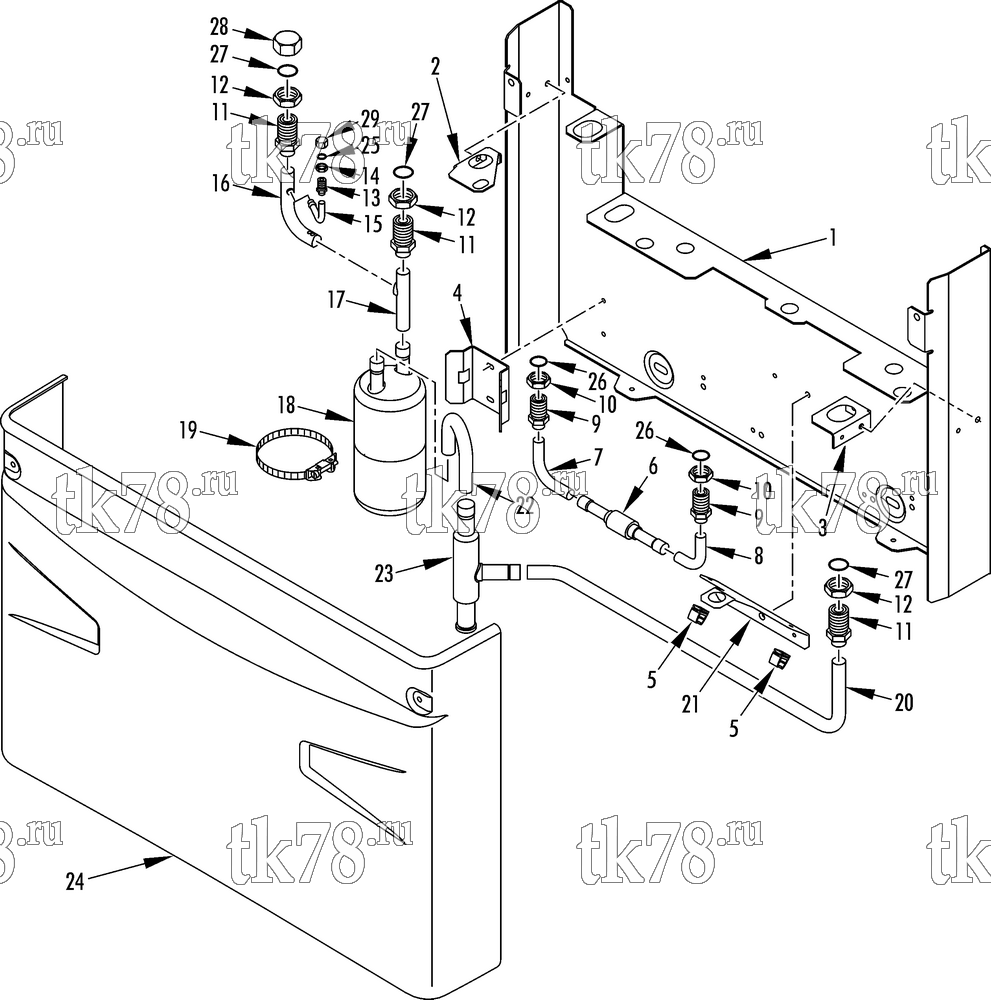

Установкa Thermo King V-300 Series DSR схема HEAT COMPONENTS (V-100/200/300 30, before Jan 09) – 191A0
Обновление от: 1/15/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6777 | FRAME | 1 | |
| 55-7172 | SCREW - frame | 4 | ||
| 55-8893 | WASHER - special | 8 | ||
| 55-7042 | NUT | 4 | ||
| 2 | 92-1577 | BRACKET - left | 1 | |
| 3 | 92-1578 | BRACKET - right | 1 | |
| 4 | 92-1579 | SUPPORT - receiver tank | 1 | |
| 55-9898 | RIVET - bracket | 8 | ||
| 5 | 92-1580 | SADDLE - tube routing (1/2 in) | 2 | |
| 6 | 61-412 | VALVE - check (liquid) | 1 | |
| 7 | 61-1149 | TUBE - fitting to valve (liquid) | 1 | |
| 8 | 61-1150 | TUBE - valve to fitting (liquid) | 1 | |
| 9 | 61-434 | FITTING - o-ring seal (#6) | 2 | |
| 10 | 55-9836 | NUT - fitting (#6) | 2 | |
| 11 | 61-432 | FITTING - o-ring seal (#10) | 3 | |
| 12 | 55-9929 | NUT - fitting (#10) | 3 | |
| 13 | 55-9925 | FITTING - o-ring seal (#4) | 1 | |
| 14 | 55-9926 | NUT - fitting (#4) | 1 | |
| 15 | 61-1151 | TUBE - oil return | 1 | |
| 16 | 61-2507 | TUBE - suction | 1 | |
| 17 | 61-2506 | TUBE - outlet | 1 | |
| 18 | 67-1693 | TANK - accumulator | 1 | |
| 19 | 55-2688 | BAND | 1 | |
| 20 | 61-2509 | TUBE - valve to adapter | 1 | |
| 21 | 92-1707 | BRACKET - saddle | 1 | |
| 55-9898 | RIVET - bracket | 2 | ||
| 22 | 61-2508 | TUBE - tank to valve | 1 | |
| 23 | 22-1073 | VALVE - pressure regulator | 1 | |
| 24 | 98-6170 | COVER | 1 | |
| 55-9505 | CLIP - cover | 2 | ||
| 55-7407 | SCREW - cover | 2 | ||
| 55-9492 | WASHER - cosmetic | 2 | ||
| 55-9490 | LOCKWASHER | 2 | ||
| 55-9491 | CAP - cosmetic | 2 | ||
| 55-9921 | SCREW - cover | 2 | ||
| 25 | 33-1461 | O-RING (#4, 5/16 id) | 1 | |
| 26 | 33-1015 | O-RING (#6, 3/8 id) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 27 | 33-2115 | O-RING (#10, 5/8 id) | 3 | |
| 28 | 51-938 | CAP - female (#10) | 1 | |
| 29 | 51-913 | CAP - female (#4) | 1 |
