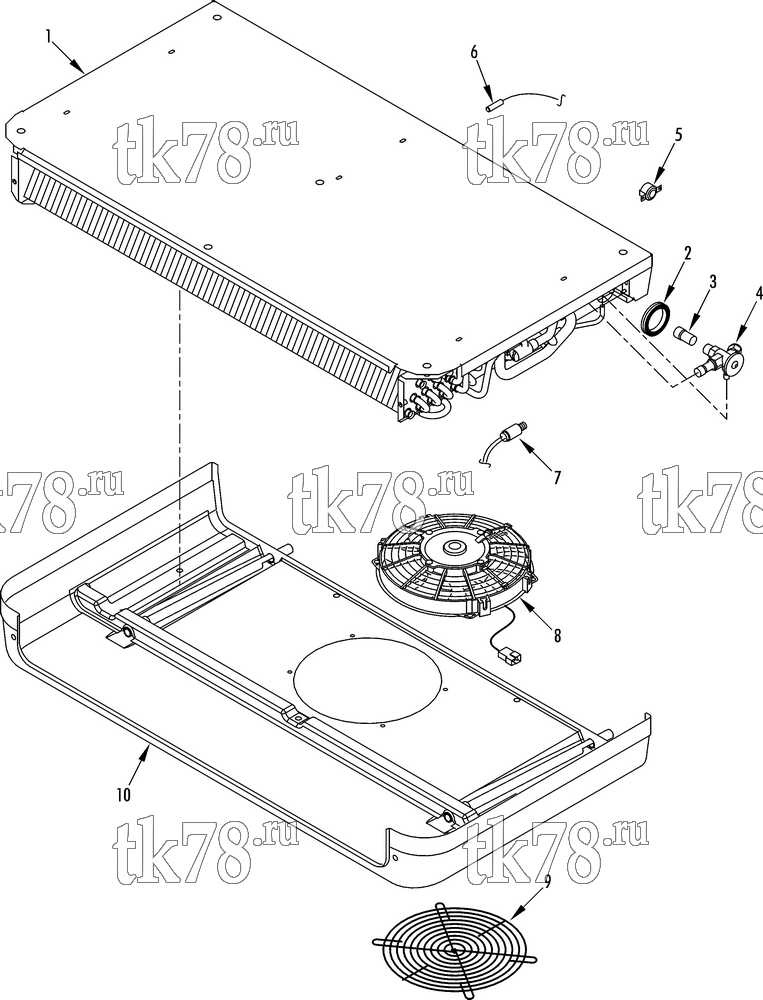

Установкa Thermo King V-300 MAX TC & TCI схема EVAPORATOR COMPONENT (ES150) – 171C1
Обновление от: 8/25/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1799 | COIL - evaporator | 1 | |
| 2 | 33-3135 | GROMMET (35 mm dia) | 5 | |
| 3 | 61-1261 | FILTER - expansion valve | 1 | |
| 4 | 66-9314 | BODY - expansion valve (ES150) | 1 | |
|
66-9314 OEM | ТРВ, V/VM-Series MAX (R404A) | 31 890 ₽ |
|
| 5 | 41-3136 | SWITCH - defrost (host unit only) | 1 | |
| 55-9900 | SCREW - switch | 2 | ||
| 41-3774 | SWITCH - thermostat (MTCI) | 1 | ||
| 55-9348 | SCREW - switch | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 6 | 41-3143 | SENSOR - temperature (w/ connector) | 1 | |
| 55-9825 | CLAMP - sensor | 1 | ||
| 55-9452 | SCREW - clamp | 1 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7861 | LOCKWASHER | 1 | ||
| 55-7698 | NUT | 1 | ||
| 7 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 8 | 78-1181 | FAN - special (225 mm, 12V) | 1 | |
| 78-1182 | FAN - special (225 mm, 24V) | 1 | ||
| 9 | 92-596 | SCREEN - fan | 1 | |
| 55-7407 | SCREW - fan & screen | 4 | ||
| 55-9826 | FLATWASHER | 8 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7367 | NUT | 4 | ||
| 10 | 98-6219 | COVER - evaporator | 1 | |
| 55-7366 | SCREW - cover | 7 | ||
| 55-7404 | LOCKWASHER | 7 | ||
| 55-7089 | FLATWASHER | 7 |
