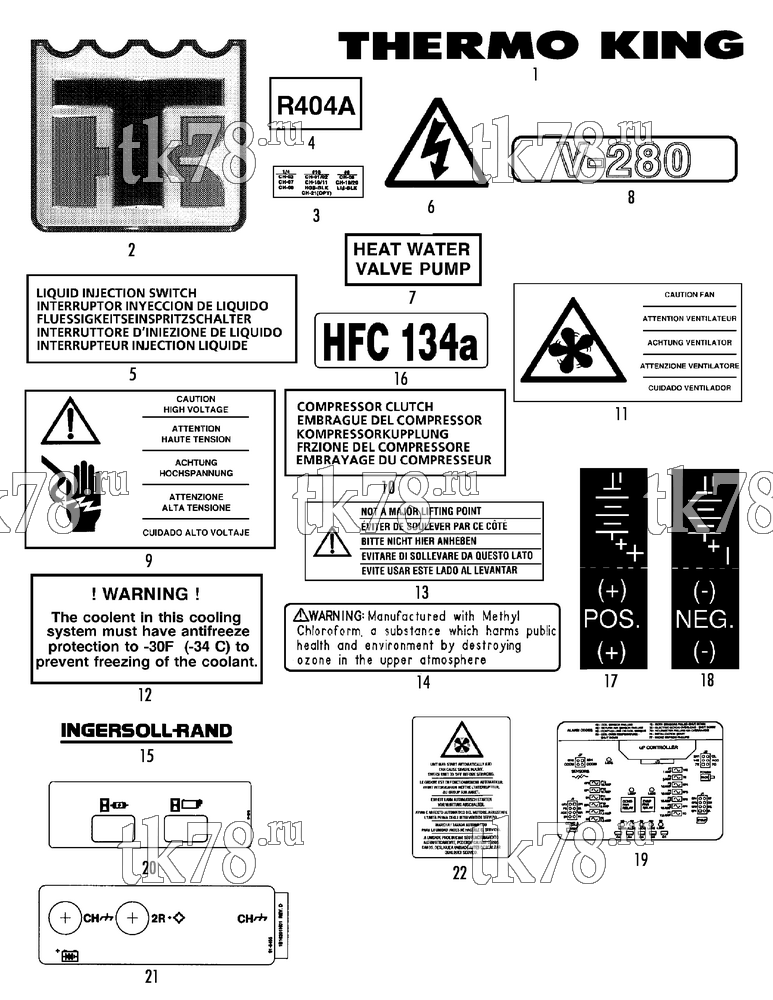

Установкa Thermo King V-280 схема NAMEPLATES – 153B4
Обновление от: 8/23/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6469 | NAMEPLATE - Thermo King | 1 | |
| 2 | 91-6232 | NAMEPLATE - TK Logo | 1 | |
| 3 | 91-9572 | NAMEPLATE - Ground Studs | 1 | |
| 4 | 91-5882 | NAMEPLATE - R404A | 1 | |
| 5 | 91-982 | NAMEPLATE - Liquid Injection Switch | 1 | |
| 6 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 7 | 91-4342 | NAMEPLATE - Valve | 1 | |
| 8 | 91-9575 | NAMEPLATE - V-280 | 1 | |
| 9 | 91-4816 | NAMEPLATE - Caution, High Voltage | 1 | |
| 10 | 91-978 | NAMEPLATE - Compressor Clutch | 1 | |
| 11 | 91-4815 | NAMEPLATE - Caution, Fan | 1 | |
| 12 | 91-2367 | NAMEPLATE - Warning Coolant | 1 | |
| 13 | 91-1739 | NAMEPLATE - Warning, Not A Major Lifting Point | 1 | |
| 14 | 91-5294 | NAMEPLATE - Warning | 1 | |
| 15 | 91-8746 | NAMEPLATE - Ingersoll Rand | 1 | |
| 16 | 91-3175 | NAMEPLATE - HFC 134a (1.50 high) | 1 | |
| 91-9571 | NAMEPLATE - HFC R134a (1.25 high) | 1 | ||
| 17 | 91-979 | NAMEPLATE - Battery (Positive) | 1 | |
| 18 | 91-980 | NAMEPLATE - Battery (Negative) | 1 | |
| 19 | 91-9570 | NAMEPLATE - Controller Box | 1 | |
| 20 | 91-6247 | NAMEPLATE - Box Low Volt | 1 | |
| 21 | 91-6455 | NAMEPLATE - Terminal Box Low Volt | 1 | |
| 22 | 91-8586 | NAMEPLATE - Fan | 1 |
