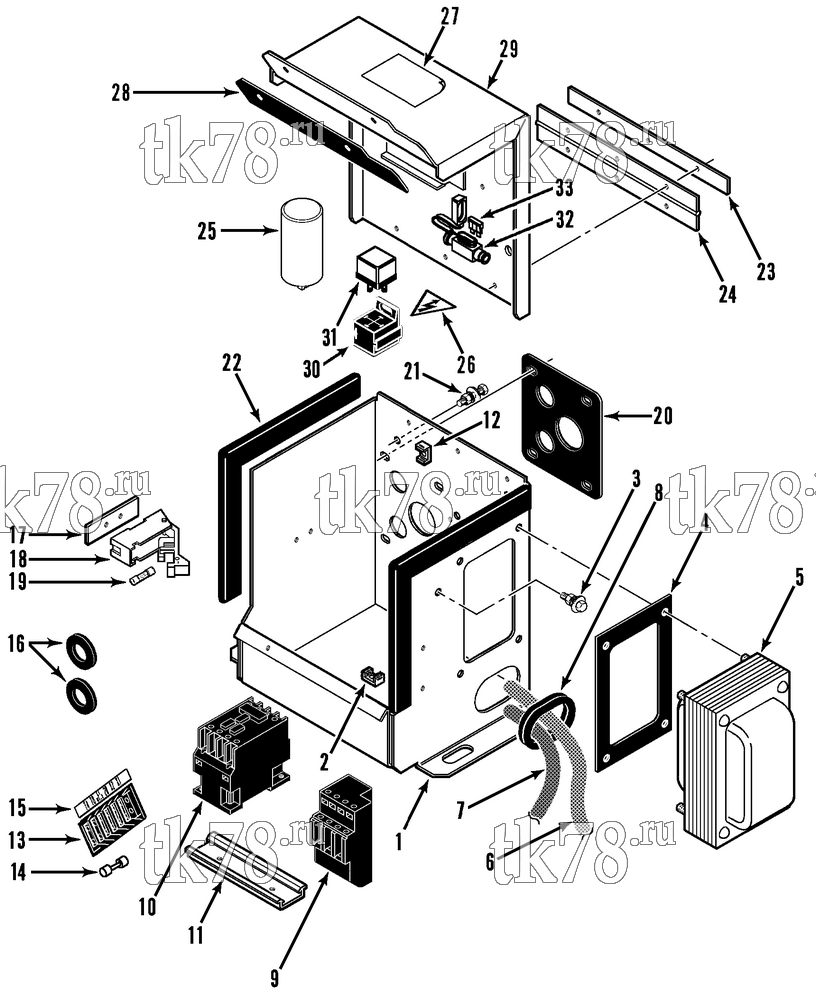

Установкa Thermo King V-280 схема HIGH VOLTAGE ASSEMBLY - 3 PHASE – 153B12
Обновление от: 7/21/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5281 | ENCLOSURE - high voltage | 1 | |
| 2 | 99-3281 | MOUNT - cable tie | 1 | |
| 3 | 51-2082 | SCREW - ground | 1 | |
| 55-3023 | WASHER - sealing | 1 | ||
| 55-3800 | LOCKWASHER (internal tooth) | 2 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 55-2990 | NUT | 2 | ||
| 4 | 33-2991 | GASKET - transformer | 1 | |
| 5 | 41-2424 | TRANSFORMER (230/3/60) | 1 | |
| 41-2438 | TRANSFORMER (400/3/50) | 1 | ||
| 55-2965 | NUT - transformer | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 6 | 41-3079 | HARNESS - control (low voltage) | 1 | |
| 41-363 | RECTIFIER (50 amp, 200 VRM) | 1 | ||
| 7 | 41-2439 | CABLE - power (230/3/60) | 1 | |
| 41-2440 | CABLE - power (400/4/60) | 1 | ||
| 8 | 33-1275 | GROMMET (1-1/2 id) | 1 | |
| 9 | 41-736 | RELAY - overload | 1 | |
| 10 | 41-5629 | CONTACTOR (3 pole) | 1 | |
| 11 | 91-8581 | CHANNEL - din | 1 | |
| 55-2989 | SCREW - channel | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 12 | 99-3427 | MOUNT - cable tie | 1 | |
| 55-1714 | RIVET | 1 | ||
| 13 | 44-5350 | BOARD - terminal | 1 | |
| 55-3511 | SCREW - board | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 14 | 44-3579 | STRIP - jumper | 1 | |
| 15 | 91-9579 | MARKSTRIP (230V) | 1 | |
| 41-2443 | MARKSTRIP (400V) | 1 | ||
| 16 | 303-654 | GROMMET (5/8 id) | 2 | |
| 17 | 91-8577 | SUPPORT - fuse holder | 1 | |
| 55-1714 | RIVET - support | 2 | ||
| 18 | 40-1004 | HOLDER - fuse | 1 | |
| 55-3511 | SCREW - holder | 1 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 19 | 41-1475 | FUSE (4 amp, 380V) | 1 | |
| 20 | 33-2992 | GASKET - motor | 1 | |
| 21 | 55-3623 | SCREW - ground | 1 | |
| 55-3008 | WASHER - sealing | 1 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 2 | ||
| 22 | 33-2993 | GASKET - enclosure | 2 | |
| 23 | 91-8578 | PLATE - hinge | 2 | |
| 24 | 91-8579 | HINGE - plastic | 1 | |
| 55-3628 | RIVET - hinge | 6 | ||
| 25 | 41-1873 | CAPACITOR (33000 MFD) | 1 | |
| 55-2331 | BANDWRAP - capacitor | 2 | ||
| 26 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 27 | 91-8580 | NAMEPLATE - Warning | 1 | |
| 28 | 33-2994 | GASKET - flange | 1 | |
| 29 | 98-5554 | COVER - enclosure | 1 | |
| 51-2082 | SCREW - cover | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 30 | 44-5537 | SOCKET - relay | 1 | |
| 31 | 41-895 | RELAY - mini | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 32 | 41-3074 | HOLDER - fuse | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 33 | 41-3080 | FUSE - mini (2 amp, 32V, gray) | 1 | |
| 44-5763 | DIODE - silicone rectifier | 2 |
