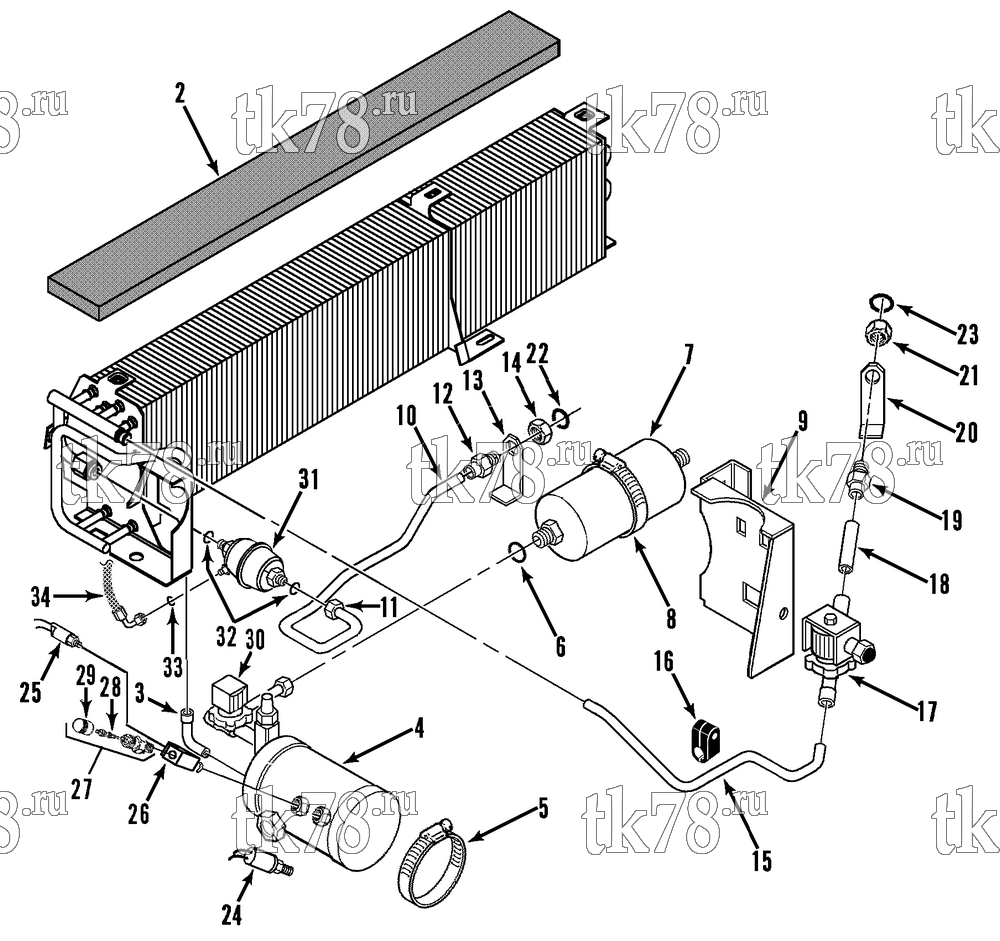

Установкa Thermo King V-280 схема REFRIGERATION - CONDENSER (10s) – 151E13
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1574 | COIL - condenser (w/ oil separator) | 1 | |
| 55-2114 | NUT - coil | 1 | ||
| 55-3504 | LOCKWASHER | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 2 | 99-7245 | STRIP - coil (50 ft) | A/R | |
| 3 | 55-1464 | ELBOW | 1 | |
| 4 | 67-1210 | TANK - receiver | 1 | |
| 66-9918 | INDICATOR - liquid | 1 | ||
| 33-2419 | O-RING | 1 | ||
| 5 | 55-7799 | CLAMP - tank | 1 | |
| 6 | 33-2115 | O-RING | 1 | |
| 7 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 8 | 55-7800 | CLAMP - dehydrator | 1 | |
| 9 | 91-8781 | BRACKET - motor/dehydrator | 1 | |
| 10 | 66-9040 | TUBE - discharge to oil separator | 1 | |
| 11 | 55-6838 | NUT - shoulder | 1 | |
| 55-6837 | SHOULDER | 1 | ||
| 12 | 55-6779 | ADAPTER - discharge | 1 | |
| 13 | 91-6020 | BRACKET - tube support | 1 | |
| 14 | 55-6393 | NUT - adapter | 1 | |
| 15 | 66-9041 | TUBE - tee to solenoid | 1 | |
| 16 | 55-6389 | CLAMP - tube | 1 | |
| 55-2979 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 17 | 66-3693 | VALVE - solenoid (see 64C6) | 1 | |
| 18 | 66-7014 | TUBE - solenoid to adapter | 1 | |
| 19 | 55-6809 | ADAPTER - defrost | 1 | |
| 20 | 91-6021 | BRACKET - tube support | 1 | |
| 21 | 55-6780 | NUT - adapter | 1 | |
| 22 | 33-1015 | O-RING (3/8) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 23 | 33-566 | O-RING (1/2) | 1 | |
| 24 | 44-7991 | SWITCH - condenser fan | 1 | |
| 25 | 41-1502 | SWITCH - hpco (R134a) | 1 | |
| 41-1800 | SWITCH - hpco (R404A) | 1 | ||
| 26 | 55-665 | TEE | 1 | |
| 27 | 11-2886 | VALVE - pressure | 1 | |
| 28 | 11-7777 | CORE - valve | 1 | |
| 29 | 55-5672 | CAP | 1 | |
| 30 | 41-777 | COIL - valve | 1 | |
| 31 | 66-8548 | SEPARATOR - oil (see 152D11) | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 370 ₽ |
|
| 32 | 33-566 | O-RING (1/2) | 2 | |
| 33 | 33-1461 | O-RING (1/4) | 2 | |
| 34 | 66-9042 | HOSE - oil return | 1 | |
| 66-5076 | FITTING - reusable (flare fitting) | 1 | ||
| 66-9389 | FITTING - reusable (o-ring seal fitting) | 1 |
