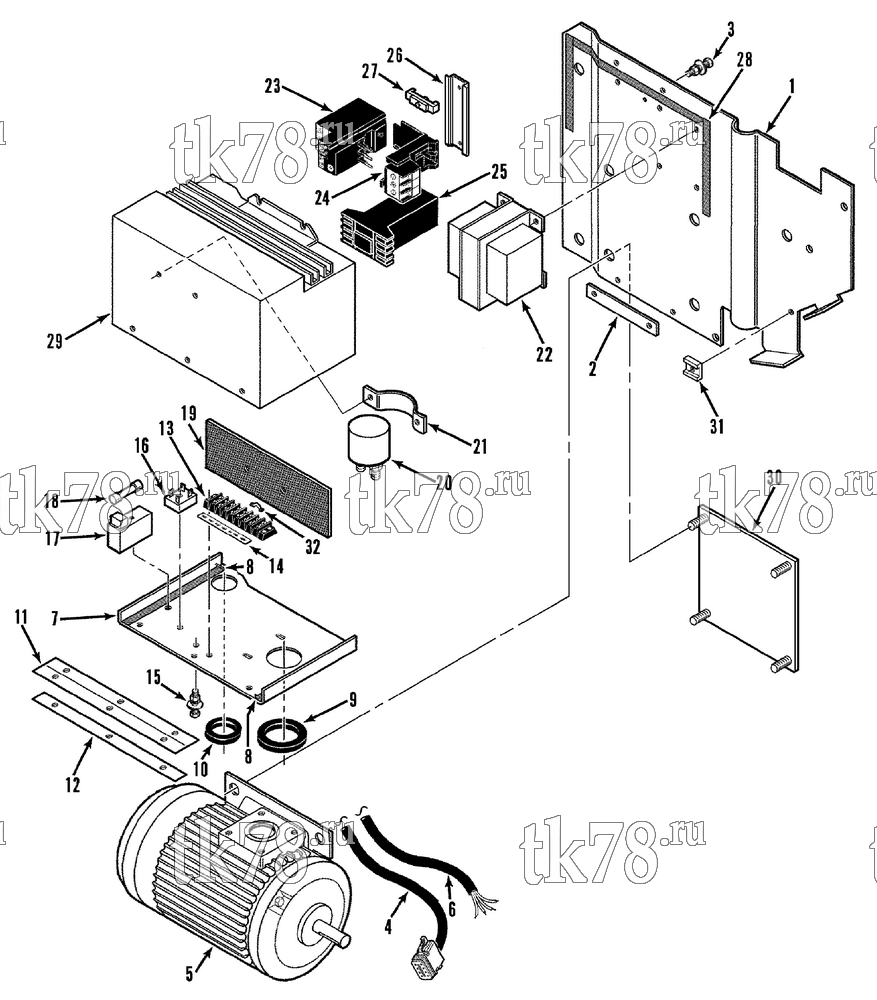

Установкa Thermo King V-250 схема POWER TRAY ASSEMBLY (220-230-400/3/50-60) – 124B8
Обновление от: 5/31/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6452 | TRAY - power (before 1/96) | 1 | |
| 91-7356 | TRAY - power (1/96 & after) | 1 | ||
| 55-8303 | INSERT - threaded | 8 | ||
| 2 | 91-6456 | PLATE - guide (motor) | 2 | |
| 55-3628 | RIVET - plate | 4 | ||
| 3 | 55-4976 | SCREW - ground | 1 | |
| 55-2996 | LOCKWASHER (internal tooth) | 3 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 2 | ||
| 4 | 41-828 | HARNESS - control (high voltage) | 1 | |
| 5 | 104-599 | MOTOR (220-230-400/3/50-60, 1.5hp, see 129B5) | 1 | |
| 55-4955 | NUT - motor | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 6 | 41-847 | CABLE - power (TSA) | 1 | |
| 41-848 | CABLE - power (EMEIA) | 1 | ||
| 7 | 91-6457 | PLATE - high voltage | 1 | |
| 8 | 33-2641 | STRIP (0.25 wide x .125 thk) | A/R | |
| 9 | 33-1275 | GROMMET (1-1/2 id) | 1 | |
| 10 | 33-2642 | GROMMET (1-1/8 id) | 1 | |
| 11 | 91-6458 | HINGE - plastic | 1 | |
| 12 | 91-6459 | PLATE - hinge | 1 | |
| 55-5974 | SCREW - hinge | 3 | ||
| 55-3023 | WASHER - sealing | 3 | ||
| 13 | 44-5057 | BOARD - terminal | 1 | |
| 55-6390 | SCREW - board | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 14 | 91-6474 | MARKSTRIP (220/230V) | 1 | |
| 91-6475 | MARKSTRIP (400V) | 1 | ||
| 15 | 55-3000 | SCREW - ground | 1 | |
| 55-3008 | WASHER - sealing | 1 | ||
| 55-2965 | NUT | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 16 | 41-363 | RECTIFIER (50 amp) | 1 | |
| 203-454 | MASTIC - heat transfer | A/R | ||
| 55-6390 | SCREW - rectifier | 1 | ||
| 55-2998 | LOCKWASHER | 1 | ||
| 55-3013 | FLATWASHER | 1 | ||
| 17 | 40-1004 | HOLDER - fuse | 1 | |
| 55-6773 | SCREW - holder | 1 | ||
| 55-2998 | LOCKWASHER | 1 | ||
| 18 | 44-7909 | FUSE (4 amp) | 1 | |
| 19 | 91-6476 | PAD - capacitor | 1 | |
| 20 | 41-1873 | CAPACITOR (33000 MFD, 25VDC) | 1 | |
| 21 | 91-6521 | CLAMP - capacitor | 1 | |
| 55-8207 | SCREW - clamp | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 22 | 41-1871 | TRANSFORMER (230V) | 1 | |
| 41-1872 | TRANSFORMER (220V) | 1 | ||
| 41-1872 | TRANSFORMER (400V) | 1 | ||
| 55-3842 | SCREW - transformer | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 23 | 41-1690 | RELAY - overload | 1 | |
| 41-732 | RELAY | 1 | ||
| 24 | 41-6096 | ADAPTER - relay | 1 | |
| 25 | 41-5629 | CONTACTOR - motor | 1 | |
| 26 | 91-6464 | CHANNEL - contactor | 1 | |
| 55-3015 | SCREW - channel | 2 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 2 | ||
| 27 | 91-6465 | CLAMP - rail | 1 | |
| 28 | 33-2643 | STRIP (0.5 wide x .25 thk) | A/R | |
| 29 | 91-6466 | COVER - box (before 1/96) | 1 | |
| 91-7357 | COVER - box (1/96 & after) | 1 | ||
| 55-5974 | SCREW - cover to plate | 3 | ||
| 55-4223 | NUT | 3 | ||
| 55-4976 | SCREW - cover to tray | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 30 | 91-6028 | BOLTSTRIP - motor | 1 | |
| 31 | 99-3281 | MOUNT - cable tie | 3 | |
| 55-3628 | RIVET - mount | 3 | ||
| 32 | 44-3579 | STRIP - jumper | 1 |
