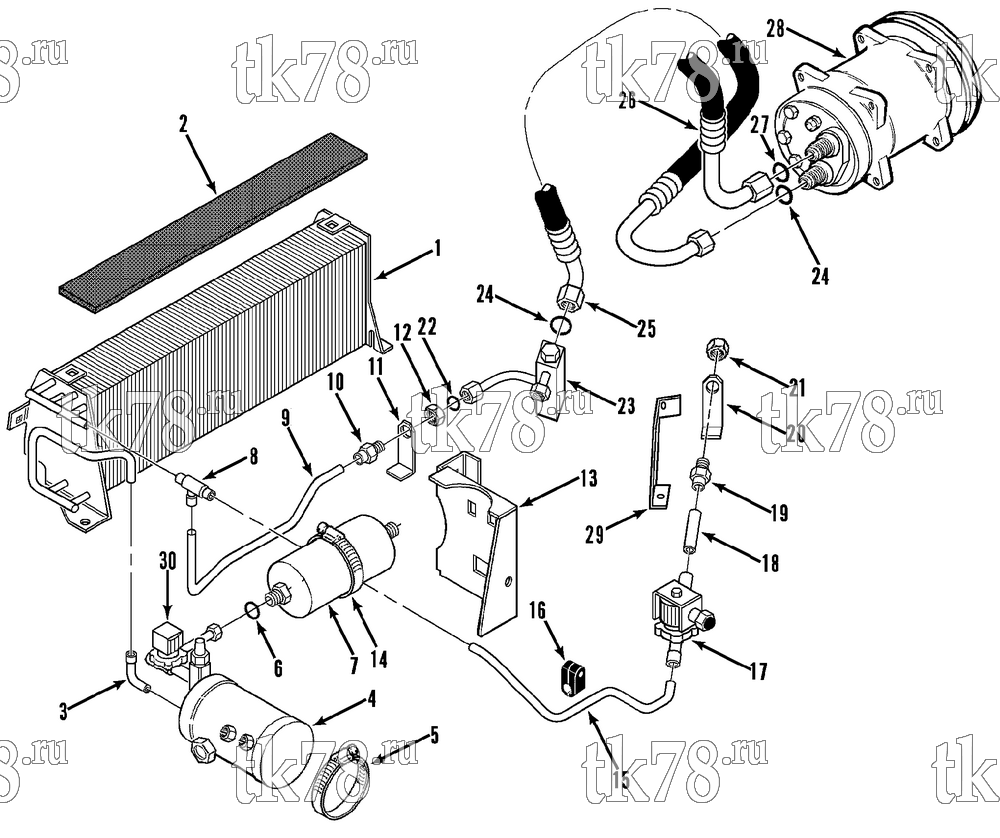

Установкa Thermo King V-250 схема REFRIGERATION - CONDENSER (V-250 20s) – 121G8
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1501 | COIL - condenser (before 8/96) | 1 | |
| 67-1501 | COIL - condenser (w/ oil separator 8/96 & after) | 1 | ||
| 55-2114 | NUT - coil | 1 | ||
| 55-3504 | LOCKWASHER | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 2 | 33-1117 | STRIP - sealing (rubber) | 1 | |
| 3 | 55-1464 | ELBOW | 1 | |
| 4 | 67-1210 | TANK - receiver | 1 | |
| 66-9918 | INDICATOR - liquid | 1 | ||
| 33-2419 | O-RING | 1 | ||
| 5 | 55-7799 | CLAMP - tank | 1 | |
| 6 | 33-2115 | O-RING | 1 | |
| 7 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 8 | 66-5212 | TEE | 1 | |
| 9 | 66-7523 | TUBE - bulkhead to tee | 1 | |
| 10 | 55-6779 | ADAPTER - discharge | 1 | |
| 11 | 91-6019 | BRACKET - motor/dehydrator (see 121G5) | 1 | |
| 91-8781 | BRACKET - motor/dehydrator (see 121G5, V-250+) | 1 | ||
| 12 | 55-6393 | NUT - adapter | 1 | |
| 13 | 91-6020 | BRACKET - tube support | 1 | |
| 14 | 55-7800 | CLAMP - dehydrator | 1 | |
| 15 | 66-7522 | TUBE - tee to solenoid | 1 | |
| 16 | 55-6389 | CLAMP - tube | 1 | |
| 55-2979 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 17 | 66-3693 | VALVE - solenoid (see 64C6) | 1 | |
| 18 | 66-7014 | TUBE - solenoid to adapter | 1 | |
| 19 | 55-6809 | ADAPTER - defrost | 1 | |
| 20 | 91-6021 | BRACKET - tube support | 1 | |
| 21 | 55-6780 | NUT - adapter | 1 | |
| 22 | 33-566 | O-RING | 1 | |
| 23 | 66-7524 | VALVE - check | 1 | |
| 55-2995 | SCREW - valve | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 24 | 33-2350 | O-RING | 2 | |
| 25 | 66-7525 | HOSE - discharge | 1 | |
| 26 | 66-7526 | HOSE - suction | 1 | |
| 27 | 33-672 | O-RING | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 28 | 102-1028 | COMPRESSOR - 15XD (see note, see 135B13) | 1 | |
| 29 | 91-6450 | BRACKET - valve | 1 | |
| 55-2994 | SCREW - bracket | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-8303 | INSERT | 1 | ||
| 30 | 41-777 | COIL - valve | 1 |
