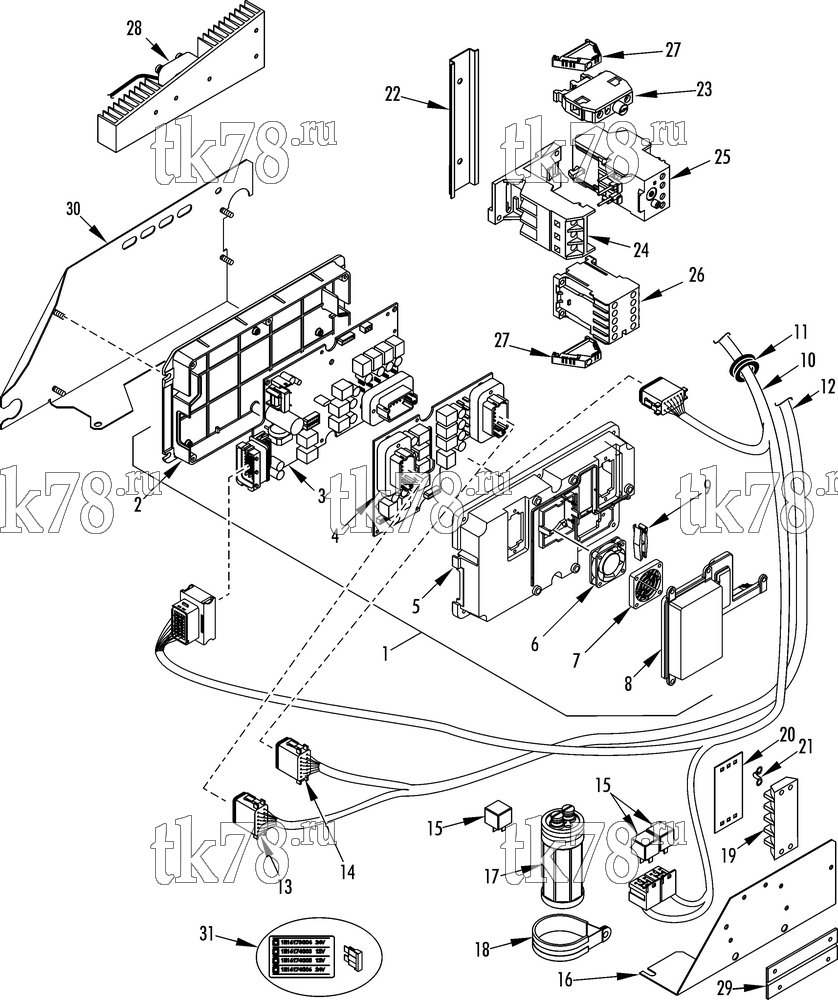

Установкa Thermo King V-200 TC & TCI DSR схема CONTROL BOX (V-200/300 TC 20/50, before 2/12) – 192A5
Обновление от: 5/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2193 | MODULE - control box (requires kit 40-1182 for 24V units) | 1 | |
| 2 | 92-3470 | COVER - rear | 1 | |
| 3 | NSS | BOARD - pc (platform #1) | 1 | |
| 4 | NSS | BOARD - pc (platform #2) | 1 | |
| 5 | 92-3579 | COVER - front (control box) | 1 | |
| 6 | 41-5480 | FAN | 1 | |
| 7 | 92-3472 | FILTER - fan | 1 | |
| 8 | 92-3473 | COVER - fuse access | 1 | |
| 9 | 204-1101 | PULLER - fuse | 1 | |
| 55-7367 | NUT - module | 4 | ||
| 55-9826 | FLATWASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 10 | 41-7697 | HARNESS - condenser (see 240C2) | 1 | |
| 11 | 33-3135 | GROMMET - harness | 1 | |
| 12 | 41-5856 | HARNESS - multi temp | 1 | |
| 13 | 41-5857 | CONNECTOR (12-pin, green) | 1 | |
| 14 | 41-5858 | CONNECTOR (12-pin, drk gray) | 1 | |
| 15 | 41-895 | RELAY - C1R (12V) | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-896 | RELAY - C1R (24V) | 1 | ||
| 41-9313 | RELAY - battery & standby (12V) | 2 | ||
| 41-5793 | RELAY - battery & standby (24V) | 2 | ||
| 16 | 41-5796 | BRACKET - terminal board | 1 | |
| 17 | 41-4941 | CAPACITOR (68000 uF) | 1 | |
| 44-9925 | RESISTOR (2200 ohm) | 1 | ||
| 18 | 92-1690 | CLAMP - capacitor | 1 | |
| 55-8720 | SCREW - clamp | 1 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 19 | 44-4269 | BOARD - terminal | 1 | |
| 20 | 41-5783 | COVER | 1 | |
| 21 | 44-2915 | STRIP - jumper | 3 | |
| 55-9352 | SCREW - board | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 51-798 | NUT | 2 | ||
| 22 | 92-3482 | CHANNEL - din | 1 | |
| 55-9915 | RIVET - channel | 2 | ||
| 23 | 41-942 | TERMINAL - fuse | 1 | |
| 41-3661 | FUSE (4 amp) | 1 | ||
| 41-5863 | FUSE (5 amp) | 1 | ||
| 24 | 41-3099 | SOCKET - overload relay (use with 41-3097 & 41-3422) | 1 | |
| 41-8485 | SOCKET - overload relay (use with 41-8483 & 41-8484) | 1 | ||
| 25 | 41-8480 | RELAY - overload (380/3/50, 4-6 amp) | 1 | |
| 41-8483 | RELAY - overload (220/1-3/60, 5.5-8 amp) | 1 | ||
| 41-3422 | RELAY - overload (220/1/50, 8-12 amp) | 1 | ||
| 41-8484 | RELAY - overload (220/1/50, 7-10 amp) | 1 | ||
| 26 | 42-271 | CONTACTOR (12V) | 1 | |
| 41-1005 | CONTACTOR (24V) | 1 | ||
| 27 | 41-898 | FIXING - end | 2 | |
| 28 | 41-9315 | RECTIFIER & RADIATOR Assembly (12V) | 1 | |
| 41-9316 | RECTIFIER & RADIATOR Assembly (24V) | 1 | ||
| 55-9348 | SCREW - radiator | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 55-7861 | LOCKWASHER | 3 | ||
| 29 | 92-594 | HINGE - panel | 1 | |
| 55-9915 | RIVET - hinge | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 30 | 92-3477 | SUPPORT - control box | 1 | |
| 55-7340 | SCREW - support | 1 | ||
| 55-7370 | LOCKWASHER (internal tooth) | 1 | ||
| 55-9826 | WASHER - special | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 31 | 40-1182 | KIT - fuse & decal | 1 | |
| 41-3080 | FUSE (2 amp, gray) | A/R | ||
| 41-4551 | FUSE (5 amp, tan) | A/R | ||
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4552 | FUSE (7.5 amp, brown) | A/R | ||
| 30-41-4552 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4553 | FUSE (10 amp, red) | A/R | ||
| 41-4554 | FUSE (15 amp, blue) | A/R | ||
| 41-4555 | FUSE (20 amp, yellow) | A/R |
