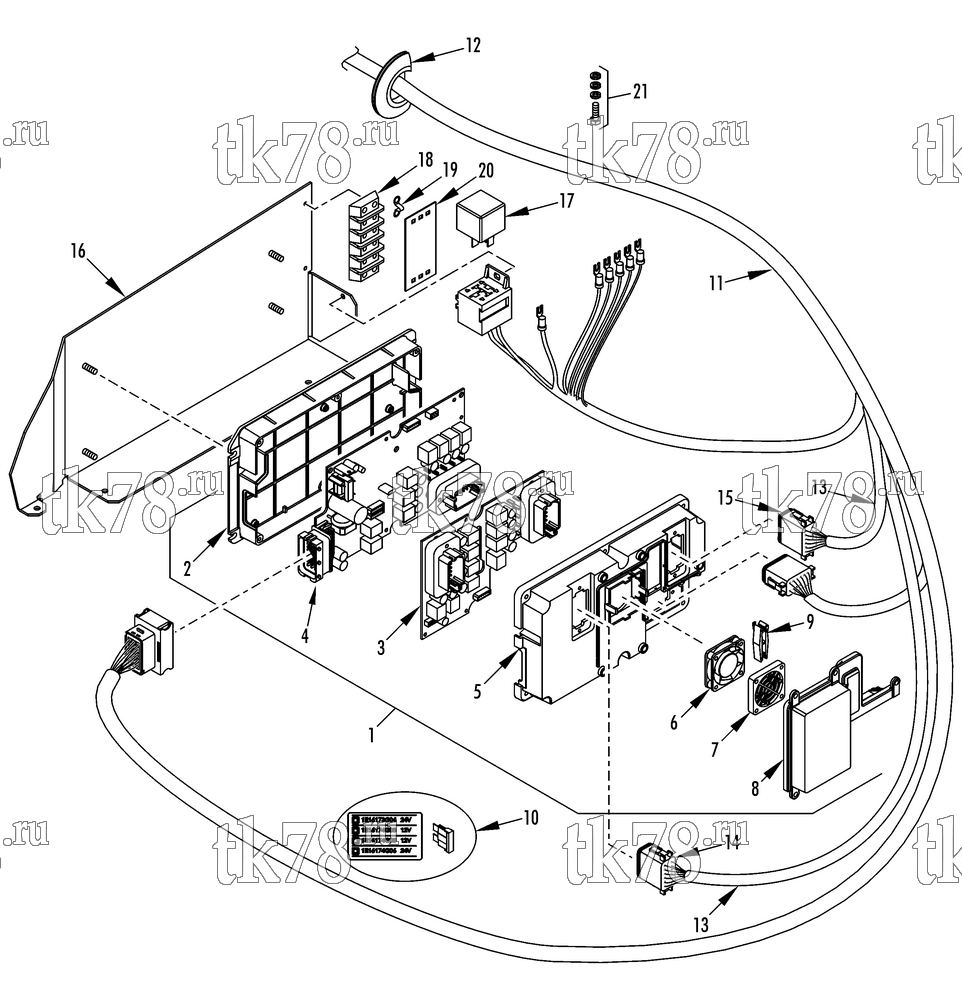

Установкa Thermo King V-200 TC & TCI DSR схема CONTROL BOX (V-200/300 TC 10/30, before 2/12) – 192A4
Обновление от: 5/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2193 | MODULE - control box (requires kit 40-1182 for 24V units) | 1 | |
| 2 | 92-3570 | COVER - front (control box) | 1 | |
| 3 | NSS | BOARD - pc (platform #1) | 1 | |
| 4 | NSS | BOARD - pc (platform #2) | 1 | |
| 5 | 92-3579 | COVER - front | 1 | |
| 6 | 41-5480 | FAN - pc board | 1 | |
| 7 | 92-3472 | FILTER - fan | 1 | |
| 8 | 92-3473 | COVER - fuse access | 1 | |
| 9 | 204-1101 | PULLER - fuse | 1 | |
| 10 | 40-1182 | KIT - fuse & decal | 1 | |
| 41-3080 | FUSE (2 amp, gray) | A/R | ||
| 41-4551 | FUSE (5 amp, tan) | A/R | ||
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4552 | FUSE (7.5 amp, brown) | A/R | ||
| 30-41-4552 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4553 | FUSE (10 amp, red) | A/R | ||
| 41-4554 | FUSE (15 amp, blue) | A/R | ||
| 41-4555 | FUSE (20 amp, yellow) | A/R | ||
| 11 | 41-5859 | HARNESS - condenser | 1 | |
| 12 | 33-2656 | GROMMET - harness | 2 | |
| 13 | 41-5845 | HARNESS - multi temperature | 1 | |
| 14 | 41-5857 | CONNECTOR (12-pin, green) | 1 | |
| 15 | 41-5858 | CONNECTOR (12-pin, dark gray) | 1 | |
| 16 | 92-3464 | PANEL - control box | 1 | |
| 55-7367 | NUT - panel | 3 | ||
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7089 | FLATWASHER | 3 | ||
| 55-7367 | NUT | 1 | ||
| 17 | 41-9313 | RELAY - battery (12V) | 1 | |
| 41-9314 | RELAY - battery (24V) | 1 | ||
| 18 | 44-4269 | BOARD - terminal (4, 30 amp) | 1 | |
| 55-9352 | SCREW - board | 2 | ||
| 19 | 44-2915 | STRIP - jumper | 3 | |
| 20 | 41-5783 | COVER - board | 1 | |
| 21 | 55-7340 | SCREW - ground | 1 | |
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7370 | LOCKWASHER (internal tooth) | 2 | ||
| 55-9826 | WASHER | 1 |
