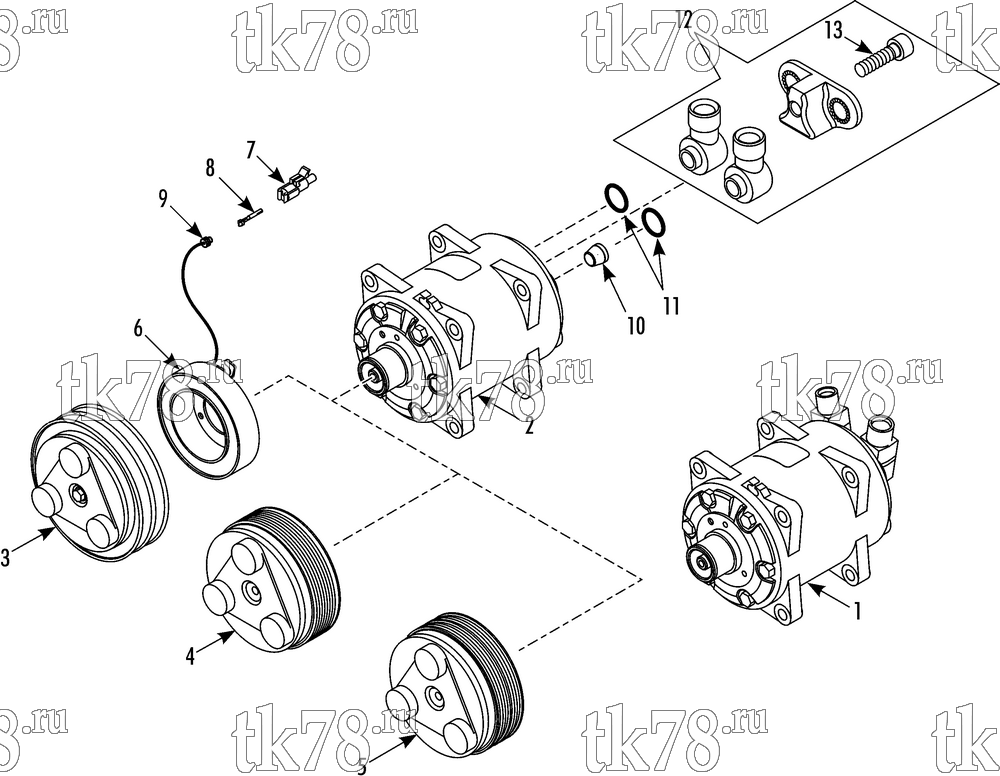

Установкa Thermo King V-200 Series схема COMPRESSOR GROUP (TM08-HD) – 250E5
Обновление от: 8/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-841 | COMPRESSOR - TM08-HD (12V, 5.25 in, double A groove) | 1 | |
| 102-844 | COMPRESSOR - TM08-HD (24V, 5.25 in, double A groove) | 1 | ||
| 102-976 | COMPRESSOR - TM08-HD (12V, 6K poly groove) | 1 | ||
| 102-977 | COMPRESSOR - TM08-HD (24V, 6K poly groove) | 1 | ||
| 2 | 102-1007 | COMPRESSOR - TM08 HD (12V, 8K poly groove) | 1 | |
| 102-1008 | COMPRESSOR - TM08 HD (24V, 8K poly groove) | 1 | ||
| 102-986 | COMPRESSOR - TM08-HD (less clutch) | 1 | ||
| 102-589 | COMPRESSOR - TM08-XD (12V, 5.25 in, double A groove) | 1 | ||
| 203-515 | OIL - compressor (solest 120, 1L) | A/R | ||
| 3 | 107-241 | CLUTCH (12V, 2A groove) | 1 | |
|
10-107-241 | Сцепление/муфта электромагнитная, 2A/12V | 6 470 ₽ |
|
| 107-242 | CLUTCH (24V, 2A groove) | 1 | ||
|
10-107-242 | Сцепление/муфта электромагнитная, 2A/24V | 10 310 ₽ |
|
| 4 | 107-301 | CLUTCH (12V, 6K poly groove) | 1 | |
| 107-314 | CLUTCH (24V, 6K poly groove) | 1 | ||
| 5 | 107-311 | CLUTCH (12V, 8K poly groove) | 1 | |
|
10-107-261 | Муфта электромагнитная, 8PV/12V, TM13/15/16, QP13/15/16 | 7 740 ₽ |
|
| 107-262 | CLUTCH (24V, 8K poly groove) | 1 | ||
|
10-107-262 | Муфта электромагнитная, 8PV/24V, TM13/15/16, QP13/15/16 | 7 740 ₽ |
|
| 6 | 41-593 | COIL (12V) | 1 | |
|
10-41-593 | Катушка муфты сцепления, 12 V | 8 120 ₽ |
|
| 41-594 | COIL (24V) | 1 | ||
|
10-41-594 | Катушка муфты сцепления, 24 V | 8 120 ₽ |
|
| 7 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 8 | 44-5884 | TERMINAL - female (18-20 ga) | 1 | |
| 9 | 44-5885 | SEAL - terminal | 1 | |
| 10 | 22-1263 | FILTER - suction | 1 | |
| 11 | 33-2882 | O-RING | 2 | |
| 12 | 20-193 | KIT - swivel manifold (incl manifold bracket & screw) | 1 | |
| 13 | 51-1652 | SCREW - manifold | 1 |
