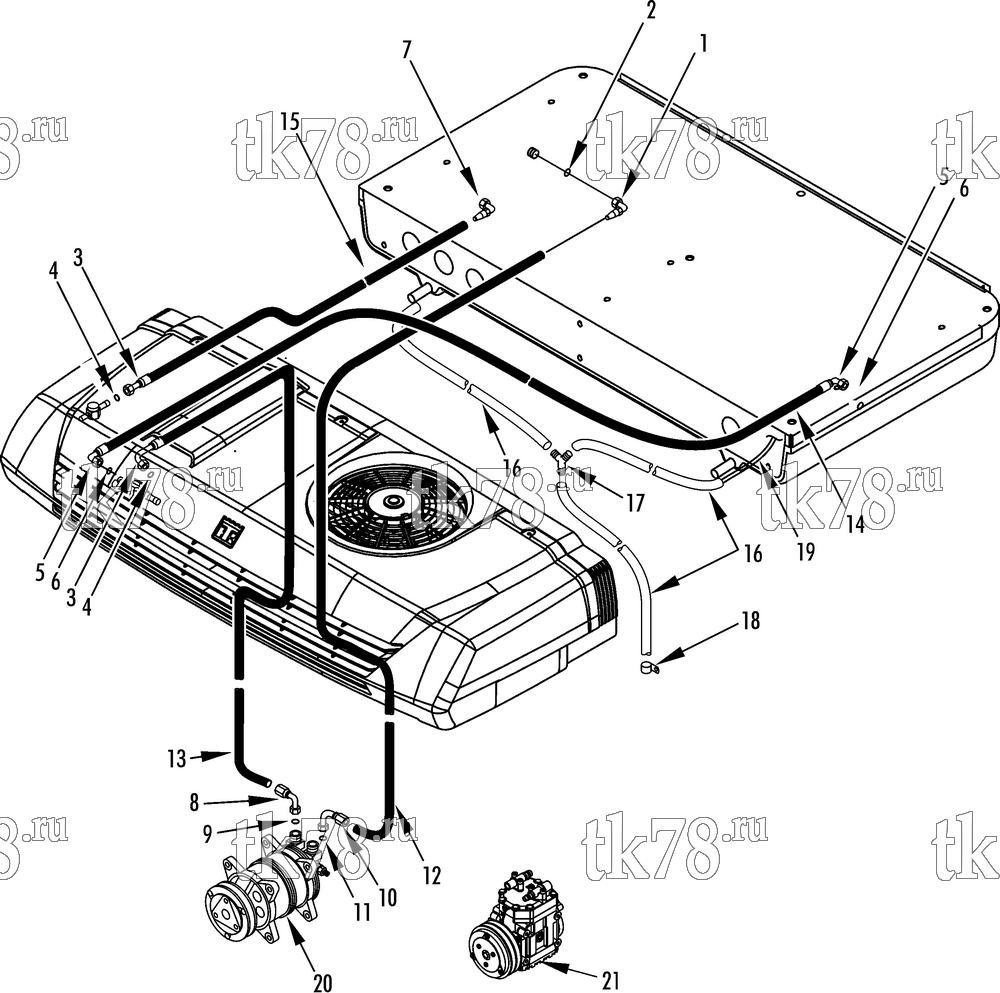

Установкa Thermo King V-200 Series схема REFRIGERATION HOSE CONNECTIONS (TK2000 HOSE, V-200 10) – 171B9
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 51-2495 | FITTING - o-ring seal (45 deg, #10) | 1 | |
| 2 | 33-2115 | O-RING (#10) | 1 | |
| 3 | 51-2441 | FITTING - o-ring seal (#8, see 165D6) | 1 | |
| 4 | 33-566 | O-RING (#8) | 1 | |
| 5 | 51-2436 | FITTING - o-ring seal (#6, see 165D6) | 2 | |
| 6 | 33-1015 | O-RING (#6) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 7 | 51-2492 | FITTING - expansion valve (90 deg, #6) | 1 | |
| 8 | 51-2432 | FITTING - compressor discharge (w/ charging port) | 1 | |
| 9 | 33-2350 | O-RING (#8) | 1 | |
| 10 | 51-2469 | FITTING - compressor suction (w/ charging port) | 1 | |
| 11 | 33-672 | O-RING (#10) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 12 | 67-1710 | HOSE (#10) | 1 | |
| 13 | 67-1709 | HOSE (#8) | 1 | |
| 14 | 67-1708 | HOSE (#6, 3/8) | 1 | |
| 15 | 67-1782 | HOSE (#4, 1/4) | 1 | |
| 16 | 11-9223 | HOSE - drain (15 x 21 x 3.5 m) | 1 | |
| 17 | 55-9258 | HOSE - connection (Y) | 1 | |
| 33-2660 | TAPE - sealant | 3 | ||
| 18 | 55-3359 | CLAMP - hose (.875 dia) | 5 | |
| 55-7147 | CLAMP - hose (1.68 dia) | 5 | ||
| 55-6808 | CLAMP - hose (2.0 dia) | 2 | ||
| 51-346 | SCREW - clamp | 12 | ||
| 19 | 41-9627 | HARNESS - drain tube heater (12V) | 1 | |
| 41-3156 | HARNESS - drain tube heater (24V) | 1 | ||
| 20 | NSS | COMPRESSOR - TM08-HD (see 250E5) | 1 | |
| NSS | COMPRESSOR - TM13-HD (see 189C3) | 1 | ||
| NSS | COMPRESSOR - TM13-HA (see 189C3) | 1 | ||
| NSS | COMPRESSOR - TM15-HD (see 169C2) | 1 | ||
| NSS | COMPRESSOR - TM16-XD (see 179A7) | 1 | ||
| 21 | 102-741 | COMPRESSOR - TK-208R 2A | 1 | |
| 107-328 | CLUTCH - 2A groove (12VDC) | 1 |
