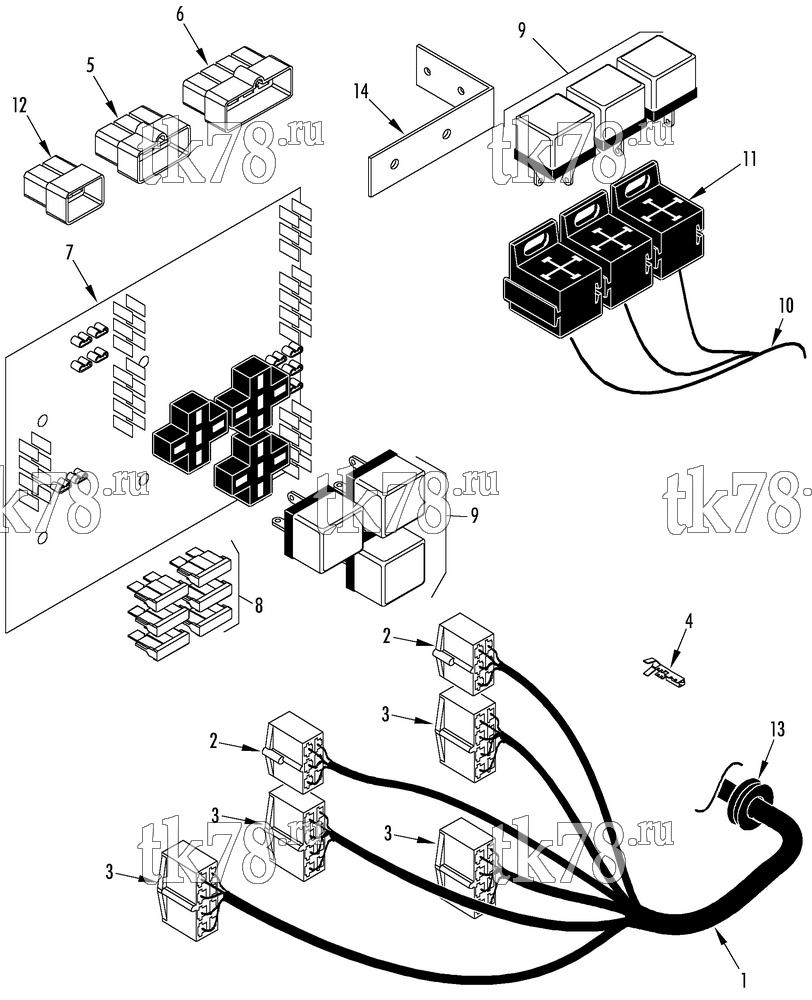

Установкa Thermo King V-200 Series схема ELECTRONIC CONTROLS (V-200/300 10 & 30) – 162A8
Обновление от: 3/18/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3777 | HARNESS - main (before 10/01) | 1 | |
| 41-4514 | HARNESS - main (10/01 - 12/07) | 1 | ||
| 41-8082 | HARNESS - main (12/07 & after, see 250E8) | 1 | ||
| 2 | 41-876 | CONNECTOR (6-pin) | 3 | |
| 3 | 41-946 | CONNECTOR (8-pin) | 4 | |
| 4 | 41-4494 | TERMINAL (female) | A/R | |
| 5 | 41-4520 | CONNECTOR - bridge (6-pin) | 1 | |
| 6 | 41-4519 | CONNECTOR - bridge (8-pin) | 1 | |
| 7 | 41-4258 | BOARD - printed circuit (N9.2) | 1 | |
| 55-7664 | SCREW - pc board | 6 | ||
| 8 | 44-9758 | FUSE (10A) | 2 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15A) | 2 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 41-2978 | FUSE (20A) | 1 | ||
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 41-1259 | FUSE (25A) | 1 | ||
|
10-41-1259 | Предохранитель 25 ампер 10 шт | 1 860 ₽ |
|
| 9 | 41-895 | RELAY (12V) | 3 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-3707 | RELAY (24V) | 3 | ||
| 55-9827 | SCREW - relay | 3 | ||
| 55-7089 | FLATWASHER | 3 | ||
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7367 | NUT | 3 | ||
| 10 | 41-4521 | HARNESS - MAC | 1 | |
| 11 | 44-5537 | SOCKET - relay | 3 | |
| 12 | 41-3771 | CONNECTOR - bridge (2-pin, MAX units) | 1 | |
| 13 | 33-2656 | GROMMET - harness | 1 | |
| 14 | 92-1706 | BRACKET - relay | 1 |
