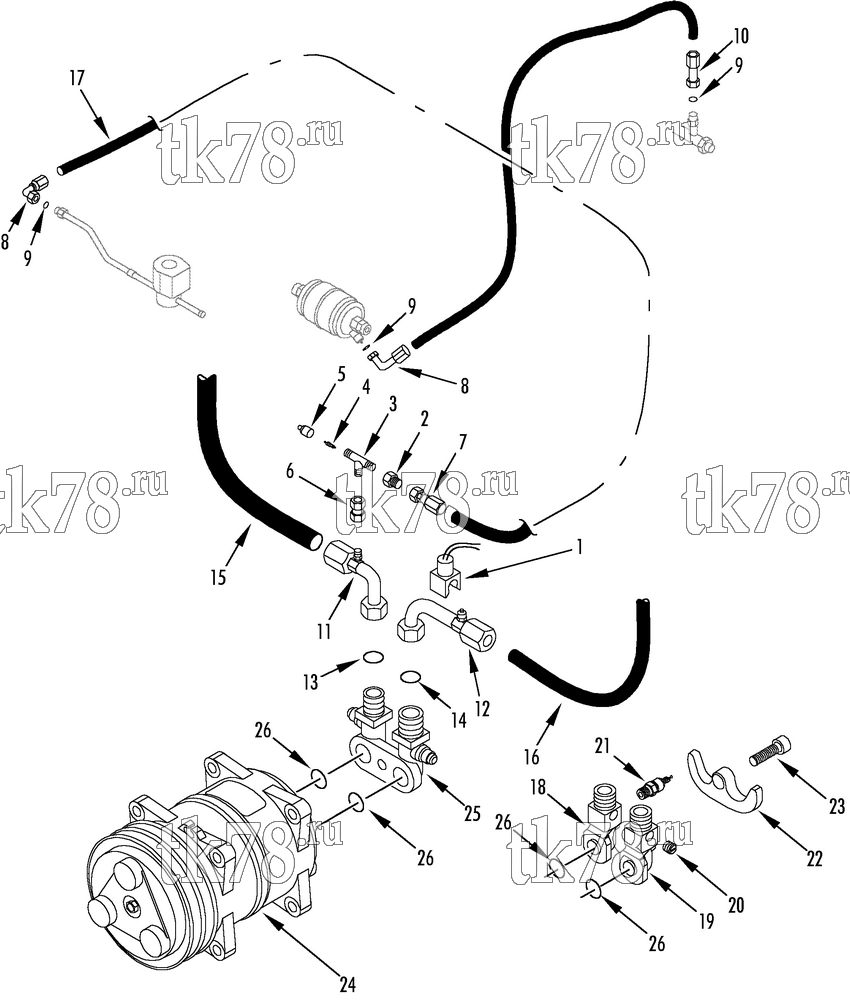

Установкa Thermo King V-200 Series схема JET COOL (V-200 10 & 20) – 162A7
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9020 | SWITCH - thermo (jet cool) | 1 | |
| 2 | 66-5029 | ORIFICE - jet cool | 1 | |
| 3 | 55-9115 | TEE (1/4) | 1 | |
| 4 | 11-7777 | VALVE (Schrader) | 1 | |
| 5 | 66-8183 | CAP - service port | 1 | |
| 6 | 55-9116 | NUT - double (1/4) | 1 | |
| 7 | 55-9513 | FITTING - filter (1/4 in) | 1 | |
| 8 | 55-8158 | FITTING - o-ring seal (90, #4) | 2 | |
| 55-8176 | SLEEVE - fitting (#4) | 3 | ||
| 9 | 33-1461 | O-RING (#4) | 3 | |
| 10 | 55-8148 | FITTING - o-ring seal (straight, #4) | 1 | |
| 11 | 55-8816 | FITTING - discharge (90 deg, #8) | 1 | |
| 11-7777 | VALVE (Schrader) | 1 | ||
| 55-8160 | SLEEVE - fitting (#8) | 1 | ||
| 12 | 55-8242 | FITTING - suction (90, #10) | 1 | |
| 11-7777 | VALVE (Schrader) | 1 | ||
| 55-8163 | SLEEVE - fitting (#10) | 1 | ||
| 13 | 33-2694 | O-RING (#8) | 1 | |
| 14 | 33-2695 | O-RING (#10) | 1 | |
| 15 | 67-944 | HOSE - discharge (#8, 6.0m) | 1 | |
| 16 | 12-679 | HOSE - suction (#10, 6.0m) | 1 | |
| 17 | 11-9066 | HOSE - liquid injection & jet cool | 2 | |
| 18 | 22-1123 | MANIFOLD - discharge | 1 | |
| 19 | 22-1122 | MANIFOLD - suction | 1 | |
| 20 | 55-3364 | PLUG - pipe | 4 | |
| 21 | 11-2886 | VALVE (Schrader) | 2 | |
| 11-7777 | CORE - valve | 1 | ||
| 22 | 22-1121 | BRACKET - manifold | 1 | |
| 23 | 55-9496 | SCREW - bracket | 1 | |
| 55-7000 | LOCKWASHER | 1 | ||
| 24 | 102-1016 | COMPRESSOR - 13XD (12V) | 1 | |
| 102-575 | COMPRESSOR - TM13-XD (24V) | 1 | ||
| 203-513 | OIL - compressor | A/R | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 107-241 | CLUTCH (12V) | 1 | ||
|
10-107-241 | Сцепление/муфта электромагнитная, 2A/12V | 6 470 ₽ |
|
| 107-242 | CLUTCH (24V) | 1 | ||
|
10-107-242 | Сцепление/муфта электромагнитная, 2A/24V | 10 310 ₽ |
|
| 25 | 22-992 | MANIFOLD - compressor | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 26 | 33-2882 | O-RING - manifold | 2 |
