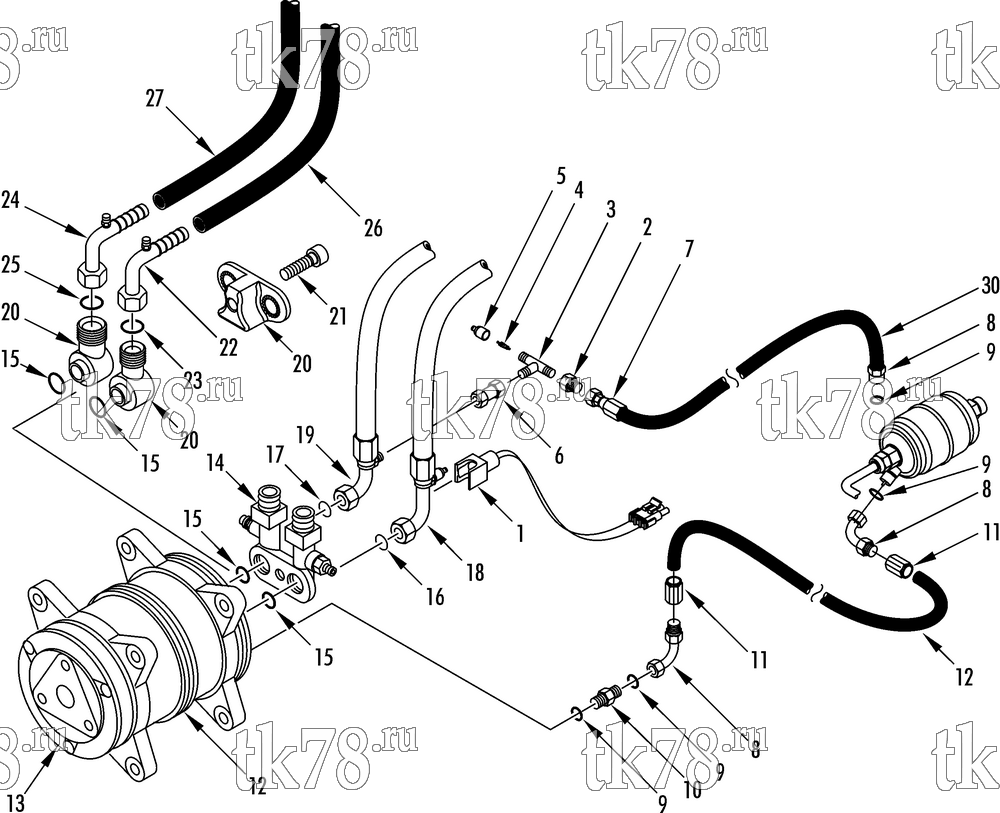

Установкa Thermo King V-200 Series схема COMPRESSOR CONNECTIONS – 155G1
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9020 | SWITCH - thermo (jet cool) | 1 | |
| 2 | 66-5029 | ORIFICE - jet cool | 1 | |
| 66-5028 | FILTER | 1 | ||
| 3 | 55-9115 | TEE (1/4) | 1 | |
| 4 | 11-7777 | VALVE (Schrader) | 1 | |
| 5 | 61-468 | CAP - service port | 1 | |
| 6 | 55-9116 | NUT - double (1/4) | 1 | |
| 7 | 55-9513 | FITTING - filter (1/4 in) | 1 | |
| 51-2417 | FITTING - filter (1/4 in, TK2000 hose) | 1 | ||
| 8 | 55-8158 | FITTING - orifice (#4) | 2 | |
| 9 | 33-1461 | O-RING (#4) | 4 | |
| 10 | 55-8778 | FITTING - o-ring seal (return) | 1 | |
| 11 | 55-8176 | SLEEVE - reusable (#4) | 2 | |
| 12 | 102-1016 | COMPRESSOR - 13XD (12V, see 189C3) | 1 | |
| 102-575 | COMPRESSOR - TM13-XD (24V, see 189C3) | 1 | ||
| 102-1017 | COMPRESSOR - 13HD (12V, 8V groove, see 189C3) | 1 | ||
| 102-577 | COMPRESSOR - TM13-HD (24V, 8V groove, see 189C3) | 1 | ||
| 13 | 107-241 | CLUTCH (12V, 2A groove) | 1 | |
|
10-107-241 | Сцепление/муфта электромагнитная, 2A/12V | 6 470 ₽ |
|
| 107-242 | CLUTCH (24V, 2A groove) | 1 | ||
|
10-107-242 | Сцепление/муфта электромагнитная, 2A/24V | 10 310 ₽ |
|
| 107-311 | CLUTCH (12V, 4.62 in, poly groove, 8V) | 1 | ||
|
10-107-261 | Муфта электромагнитная, 8PV/12V, TM13/15/16, QP13/15/16 | 7 740 ₽ |
|
| 107-262 | CLUTCH (24V, poly groove) | 1 | ||
|
10-107-262 | Муфта электромагнитная, 8PV/24V, TM13/15/16, QP13/15/16 | 7 740 ₽ |
|
| 203-515 | OIL - compressor (1L) | A/R | ||
| 14 | 22-992 | MANIFOLD - compressor | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 15 | 33-2882 | O-RING | 2 | |
| 16 | 33-2695 | O-RING (#10) | 1 | |
| 17 | 33-2694 | O-RING (#8) | 1 | |
| 18 | 55-8242 | FITTING - suction | 1 | |
| 19 | 55-8816 | FITTING - discharge | 1 | |
| 20 | 20-193 | KIT - swivel manifold (incl manifold bracket & screw) | 1 | |
| 21 | 55-9496 | SCREW - bracket | 1 | |
| 22 | 51-2469 | FITTING - compressor suction (#10, see 165D6) | 1 | |
| 23 | 33-2115 | O-RING - suction (#10) | 1 | |
| 24 | 51-2432 | FITTING - compressor discharge (#8, see 165D6) | 1 | |
| 25 | 33-566 | O-RING - discharge (#8) | 1 | |
| 26 | 67-1710 | HOSE - suction (#10, see 165D6) | A/R | |
| 27 | 67-1709 | HOSE - discharge (#8, see 165D6) | A/R |
