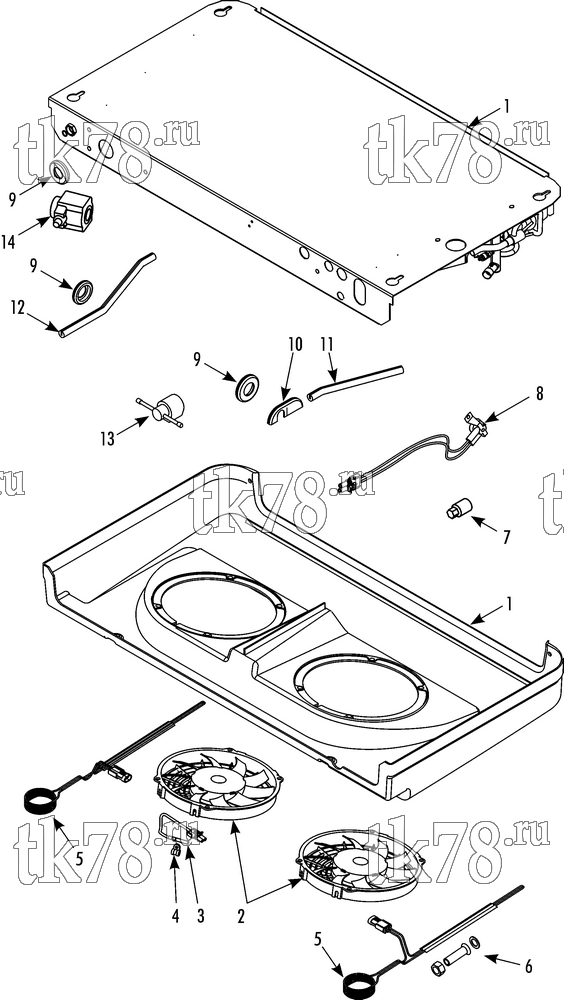

Установкa Thermo King V-200 Series DSR схема EVAPORATOR COVER & ELECTRICAL COMPONENTS ES200 (Jan 12 & after) – 256D9
Обновление от: 4/18/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7890 | COVER - evaporator (ES200) | 1 | |
| 67-2791 | COIL - evaporator (ES200, see 256D8) | 1 | ||
| 51-2010 | SCREW - cover | 6 | ||
| 55-9492 | WASHER - cosmetic | 2 | ||
| 55-9491 | CAP - cosmetic | 2 | ||
| 2 | 78-1373 | FAN - evaporator (12V) | 2 | |
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
| 78-1374 | FAN - evaporator (24V) | 2 | ||
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 470 ₽ |
|
| 51-1808 | RIVET - fan (unscrewing) | 8 | ||
| 3 | 41-5784 | SENSOR - temperature | 1 | |
| 42-3067 OEM | Датчик температуры, V/C-Series | 13 780 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V/C-Series | 9 420 ₽ |
|
|
| 4 | 55-9825 | CLAMP - sensor | 1 | |
| 51-2161 | SCREW - clamp | 1 | ||
| 51-2167 | NUT | 1 | ||
| 5 | 41-3156 | HEATER - drain tube (24V) | 2 | |
| 42-230 | HEATER - drain tube (12V) | 2 | ||
| 6 | 92-3466 | TUBE - defrost drain | 2 | |
| 51-791 | WASHER | 2 | ||
| 51-790 | NUT | 2 | ||
| 7 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 8 | 41-3136 | SWITCH - defrost termination | 1 | |
| 51-2071 | SCREW - switch | 2 | ||
| 9 | 33-3135 | GROMMET (35 mm) | 3 | |
| 10 | 33-4590 | GROMMET (35 X 65 mm) | 1 | |
| 11 | 33-4899 | SEAL - rubber (186MM) | 1 | |
| 12 | 33-4900 | SEAL - rubber (284MM) | 1 | |
| 13 | 61-6116 | VALVE - solenoid (jet cool, see 269A7) | 1 | |
| 14 | 61-6110 | VALVE - solenoid (hot gas, see 269A7) | 1 |
