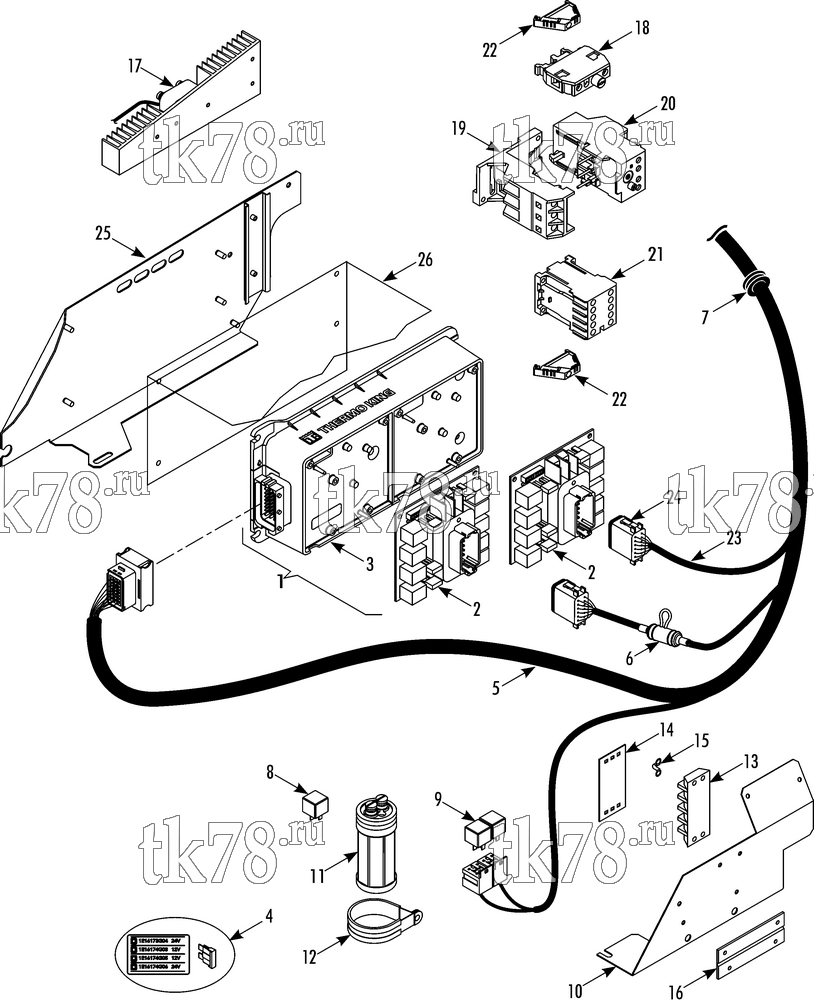

Установкa Thermo King V-200 SPECTRUM схема CONTROL BOX (SPECTRUM 50 w/ DSR III) – 267F4
Обновление от: 8/24/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2476 | MODULE - control box (12V DSR III, 24V) | 1 | |
| 2 | 42-589 | BOARD - power | 1 | |
| 3 | 92-9931 | COVER | 1 | |
| 55-7367 | NUT - module | 4 | ||
| 55-9826 | FLATWASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 4 | 40-1182 | KIT - fuses | 1 | |
| 41-3080 | FUSE (2 amp, gray) | 2 | ||
| 41-4554 | FUSE (15 amp, blue) | 4 | ||
| 41-4555 | FUSE (20 amp, yellow) | 2 | ||
| 5 | 42-852 | HARNESS - condenser (see 240C2) | 1 | |
| 6 | 42-962 | HOLDER - fuse | 1 | |
| 42-964 | FUSE - (16 amp) | 1 | ||
| 42-963 | FUSE - (10 amp) | 1 | ||
| 7 | 33-3135 | GROMMET - harness | 1 | |
| 8 | 41-895 | RELAY - C1R (12V) | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-896 | RELAY - C1R (24V) | 1 | ||
| 9 | 41-9313 | RELAY - battery & standby (12V) | 2 | |
| 41-9314 | RELAY - battery & standby (24V) | 2 | ||
| 10 | 42-965 | BRACKET - terminal board | 1 | |
| 51-2010 | SCREW - support | 1 | ||
| 11 | 41-4941 | CAPACITOR (68000 uF) | 1 | |
| 44-9925 | RESISTOR (2200 ohm) | 1 | ||
| 12 | 92-1690 | CLAMP - capacitor | 1 | |
| 51-2011 | SCREW - clamp | 1 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 13 | 44-4269 | BOARD - terminal | 1 | |
| 14 | 41-5783 | COVER - board | 1 | |
| 15 | 44-2915 | STRIP - jumper | 3 | |
| 55-9352 | SCREW - board | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 51-798 | NUT | 2 | ||
| 16 | 92-594 | HINGE - panel | 1 | |
| 55-9915 | RIVET - hinge | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 17 | 41-9315 | RECTIFIER & RADIATOR Assembly (12V) | 1 | |
| 41-9316 | RECTIFIER & RADIATOR Assembly (24V) | 1 | ||
| 55-9348 | SCREW - radiator | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 55-7861 | LOCKWASHER | 3 | ||
| 18 | 41-942 | TERMINAL - fuse | 1 | |
| 41-5863 | FUSE (5 amp) | 1 | ||
| 19 | 41-8485 | SOCKET - overload relay (use with 41-8483 & 41-8484) | 1 | |
| 20 | 41-8480 | RELAY - overload (380/3/50, 4-6 amp) | 1 | |
| 41-8483 | RELAY - overload (220/1-3/60, 5.5-8 amp) | 1 | ||
| 41-3422 | RELAY - overload (220/1/50, 8-12 amp) | 1 | ||
| 41-8484 | RELAY - overload (220/1/50, 7-10 amp) | 1 | ||
| 21 | 42-271 | CONTACTOR (12V) | 1 | |
| 41-1005 | CONTACTOR (24V) | 1 | ||
| 22 | 41-898 | FIXING - end | 2 | |
| 23 | 42-1067 | HARNESS - multi temperature | 1 | |
| 24 | 44-9600 | PLUG (12-pin, w/ seal, see 112D9) | 1 | |
| 25 | 93-553 | SUPPORT - control box | 1 | |
| 26 | 92-9932 | GUARD - splash | 1 |
