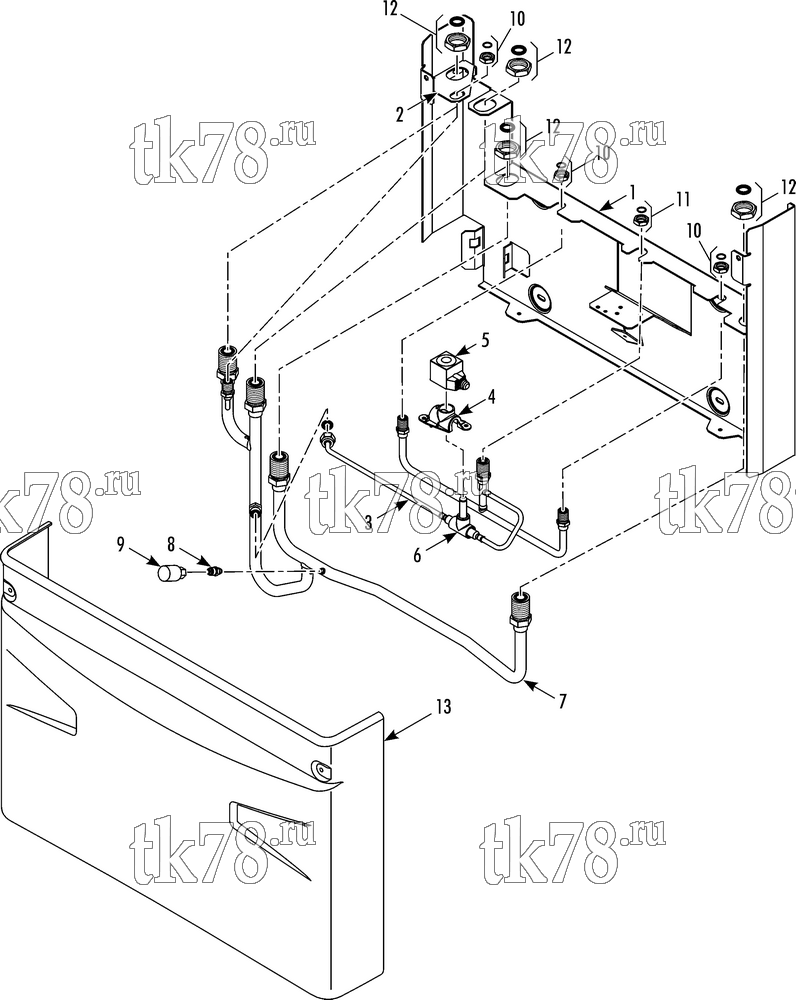

Установкa Thermo King V-200 SPECTRUM схема MT GROUP (SPECTRUM) – 259H2
Обновление от: 4/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8514 | FRAME | 1 | |
| 55-7172 | SCREW - frame to trailer | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 55-7042 | NUT | 4 | ||
| 2 | 92-1577 | BRACKET - left | 1 | |
| 51-1601 | RIVET - bracket | 2 | ||
| 3 | 61-6117 | TUBE - liquid | 1 | |
| 4 | 92-9925 | BRACKET - solenoid | 1 | |
| 51-2010 | SCREW - bracket | 2 | ||
| 51-2012 | NUT | 2 | ||
| 5 | 42-764 | COIL - 12V | 1 | |
| 42-765 | COIL - 24V | 1 | ||
| 6 | 61-6116 | VALVE - solenoid (jet cool, see 269a7) | 1 | |
| 7 | 61-6118 | TUBE - suction (SPECTRUM 30) | 1 | |
| 61-6119 | TUBE - suction (SPECTRUM 50) | 1 | ||
| 33-2115 | O-RING (#10) | 4 | ||
| 8 | 61-2504 | VALVE - service port | 1 | |
| 11-7777 | VALVE (Schrader) | 1 | ||
| 9 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 10 | 33-1461 | O-RING (#4) | 3 | |
| 55-9926 | NUT - ORS (#4) | 3 | ||
| 11 | 33-1015 | O-RING (#6) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 55-9836 | NUT - ORS (#6) | 1 | ||
| 12 | 33-2115 | O-RING (#10) | 3 | |
| 55-9929 | NUT - ORS (#10) | 3 | ||
| 13 | 98-6170 | COVER | 1 | |
| 55-9505 | CLIP - threaded (M5) | 2 | ||
| 51-2010 | SCREW - cover | 2 | ||
| 55-9492 | WASHER - cosmetic | 2 | ||
| 55-9490 | LOCKWASHER | 2 | ||
| 55-9491 | CAP - cosmetic | 2 | ||
| 51-1601 | RIVET - cover | 2 | ||
| 55-9921 | PAD - foot (rubber) | 2 |
