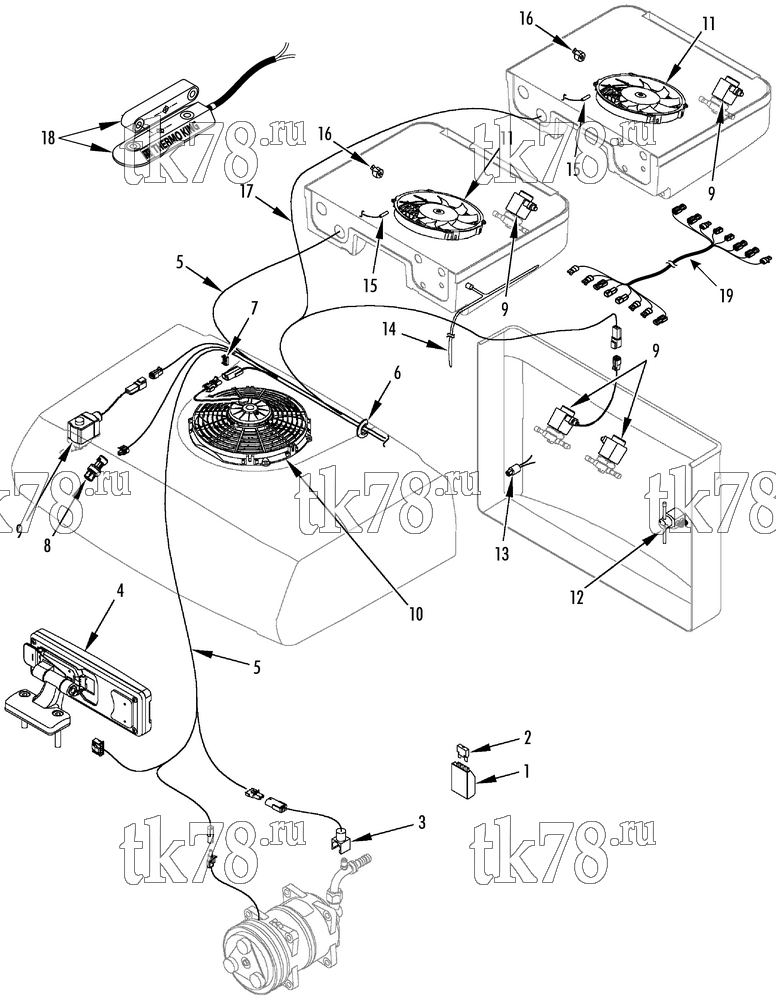

Установкa Thermo King V-200 SPECTRUM схема ELECTRIC COMPONENTS (V-200/300 SPECTRUM 30) – 259G9
Обновление от: 6/14/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5785 | HOLDER - fuse | 1 | |
| 44-2792 | TERMINAL (#10) | 2 | ||
| 2 | 41-5786 | FUSE (40 amp) | 1 | |
| 3 | 44-9020 | SWITCH - thermo (jet cool) | 1 | |
| 4 | 45-2072 | CONTROLLER - in-cab | 1 | |
| 5 | 41-5859 | HARNESS - condenser (see 236F5) | 1 | |
| 42-961 | HARNESS - condenser (w/ fuse, see 236F5) | 1 | ||
| 6 | 33-2656 | GROMMET - harness | 2 | |
| 7 | 55-8212 | HOLDER - bandwrap | 2 | |
| 55-9915 | RIVET - holder | 2 | ||
| 55-2330 | BANDWRAP (3/4 dia) | 2 | ||
| 51-757 | BANDWRAP (4 dia) | 7 | ||
| 8 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 9 | NSS | VALVE - solenoid (before Jul 12, see 193A5) | 5 | |
| NSS | VALVE - solenoid (Jul 12 & after, see 269A7) | 5 | ||
| 204-1074 | TOOL - coil magnet | A/R | ||
| 10 | 78-1375 | FAN - condenser (12V, draw) | 1 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 690 ₽ |
|
|
| 78-1376 | FAN - condenser (24V, draw) | 1 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 11 | 78-1373 | FAN - evaporator (12V, blow) | 2 | |
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
| 78-1374 | FAN - evaporator (24V, blow) | 2 | ||
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 470 ₽ |
|
| 12 | 61-6116 | VALVE - solenoid (jet cool, see 269A7) | 1 | |
| 13 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 14 | 42-230 | HEATER - drain tube (12V) | 1 | |
| 41-3156 | HEATER - drain tube (24V) | 1 | ||
| 15 | 41-5784 | SENSOR - temperature | 2 | |
| 42-3067 OEM | Датчик температуры, V/C-Series | 13 780 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V/C-Series | 9 420 ₽ |
|
|
| 16 | 41-3136 | SWITCH - defrost termination | 2 | |
| 51-2071 | SCREW - switch | 2 | ||
| 17 | 41-5845 | HARNESS - multi temperature (DSR II, 10/30) | 1 | |
| 42-1067 | HARNESS - multi temperature (DSR III, 10/30) | 1 | ||
| 18 | 40-907 | SWITCH - door | 1 | |
| 19 | 41-9911 | HARNESS - evaporator extension (2M) | 1 | |
| 42-984 | HARNESS - evaporator extension (5M) | 1 |
