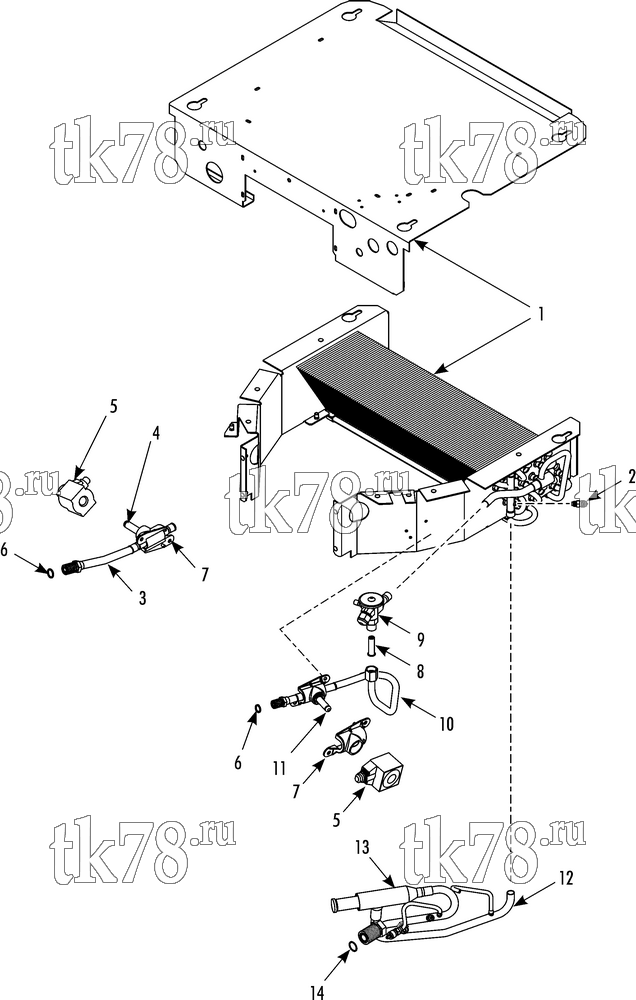

Установкa Thermo King V-200 SPECTRUM схема EVAPORATOR REFRIGERATION ES100 – 259G8
Обновление от: 4/11/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2754 | COIL - evaporator | 1 | |
| 2 | 61-403 | VALVE - service port | 1 | |
| 3 | 61-6109 | TUBE - hot gas | 1 | |
| 4 | 61-6110 | VALVE - solenoid (see 269A7) | 1 | |
| 5 | 42-764 | COIL - valve (12V) | 1 | |
| 42-765 | COIL - valve (24V) | 1 | ||
| 6 | 33-1015 | O-RING (3/8 id, #6) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 7 | 92-9925 | BRACKET- solenoid | 2 | |
| 51-2011 | SCREW - valve | 2 | ||
| 8 | 61-1297 | FILTER - expansion | 1 | |
| 9 | 66-9314 | BODY - expansion valve (R404A) | 1 | |
|
66-9314 OEM | ТРВ, V/VM-Series MAX (R404A) | 31 890 ₽ |
|
| 203-534 | TAPE - insulating | A/R | ||
| 10 | 61-6111 | TUBE - liquid | 1 | |
| 11 | 61-6110 | VALVE - solenoid (see 269A7) | 1 | |
| 12 | 61-5813 | TUBE - suction (w/ KLV) | 1 | |
| 13 | 22-1356 | VALVE - suction pressure regulator (KLV) | 1 | |
| 61-468 | CAP - service port | 1 | ||
| 14 | 33-2115 | O-RING (5/8 id, #10) | 1 |
