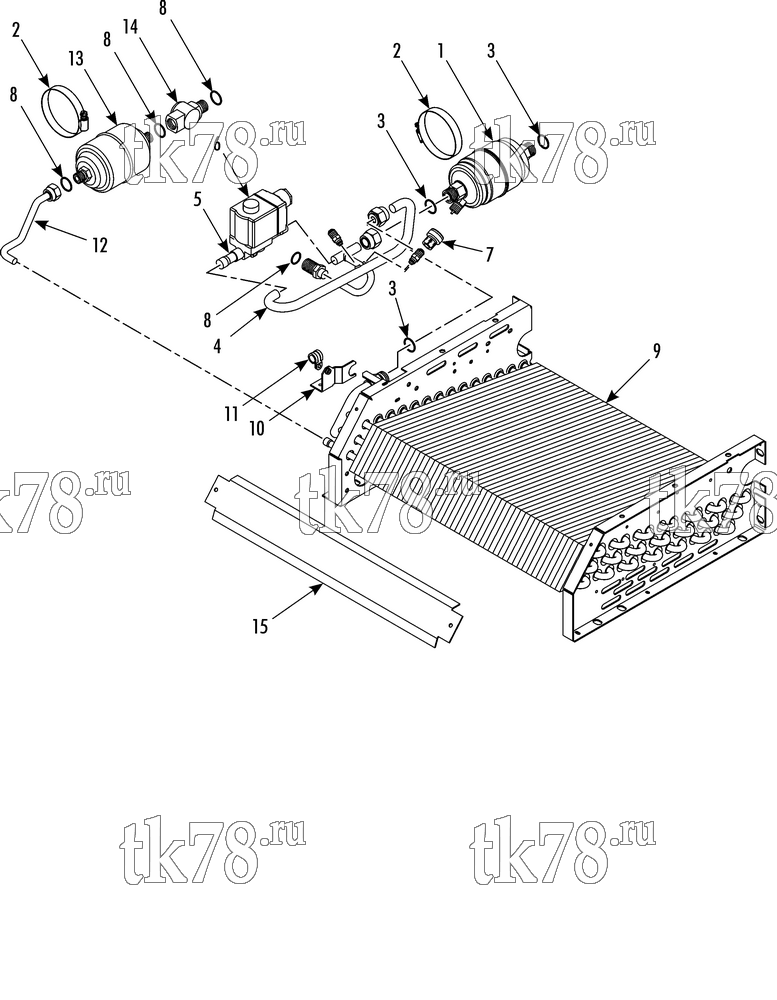

Установкa Thermo King V-200 SPECTRUM схема CONDENSER REFRIGERATION (V-200/300 MAX 30 SPECTRUM) – 259G7
Обновление от: 10/16/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 870 ₽ |
|
| 2 | 55-6225 | CLAMP - filter | 2 | |
| 3 | 33-566 | O-RING - discharge (#8) | 3 | |
| 4 | 61-2505 | TUBE - discharge | 1 | |
| 5 | 66-9032 | SOLENOID - hot gas (see 193A5) | 1 | |
| 6 | 41-5789 | COIL (12V) | 1 | |
| 41-5791 | COIL (24V) | 1 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 760 ₽ |
|
| PP-41-5791 | Катушка соленоида 24V, V-Series | 1 830 ₽ |
|
|
| 7 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 8 | 33-1015 | O-RING - defrost/liquid (#6) | 4 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 9 | 67-1982 | COIL - condenser (V-200) | 1 | |
| 67-1763 | COIL - condenser (V-300) | 1 | ||
| 55-9898 | RIVET - coil | 12 | ||
| 10 | 92-3463 | BRACKET - tube | 1 | |
| 55-9898 | RIVET - bracket | 2 | ||
| 11 | 92-1501 | CLAMP - tube | 1 | |
| 51-2010 | SCREW - clamp | 1 | ||
| 12 | 61-5117 | TUBE - liquid | 1 | |
| 13 | 61-3852 | DEHYDRATOR | 1 | |
|
10-61-3852 | Дегидратор, V-Series/C-Series | 1 690 ₽ |
|
| 14 | 61-5144 | SIGHT GLASS (#6) | 1 | |
| 15 | 92-1714 | PANEL - deflector | 1 |
