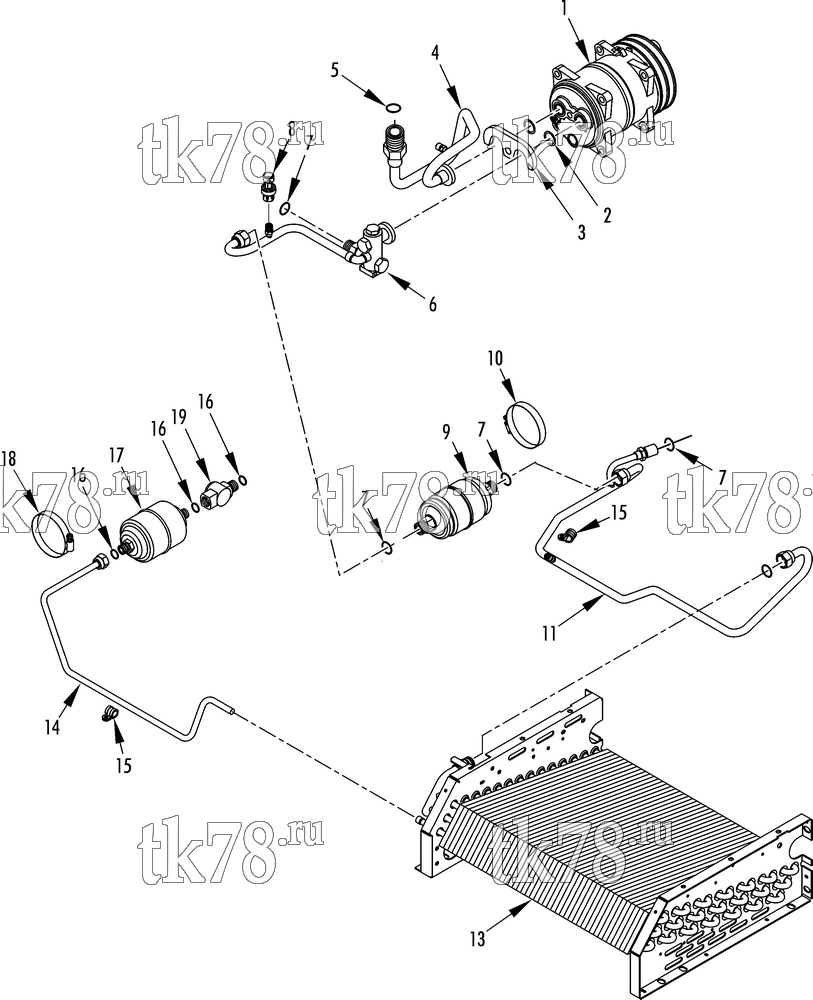

Установкa Thermo King V-200 SPECTRUM схема CONDENSER REFRIGERATION (V-200/300 20/50, Jan 12 & after) – 259D2
Обновление от: 2/10/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR - SD5L14 (see 191C2) | 1 | |
| 2 | 33-5051 | O-RING - manifold | 2 | |
| 3 | 22-1120 | BRACKET - manifold holddown | 1 | |
| 55-9484 | SCREW - bracket | 1 | ||
| 4 | 61-5902 | TUBE - suction | 1 | |
| 11-7777 | VALVE (Schrader) | 1 | ||
| 61-468 | CAP - valve | 1 | ||
| 5 | 33-2115 | O-RING - suction (#10) | 1 | |
| 6 | 61-6335 | TUBE & CHECK VALVE | 1 | |
| 61-6336 | VALVE - double check | 1 | ||
| 7 | 33-566 | O-RING (#8) | 5 | |
| 8 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 9 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 870 ₽ |
|
| 10 | 55-6225 | CLAMP - separator | 2 | |
| 11 | 98-8399 | TUBE - discharge (non MAX units) | 1 | |
| 61-6120 | TUBE - discharge (MAX units) | 1 | ||
| 12 | 66-9032 | SOLENOID - hot gas (see 193A5) | 1 | |
| 13 | 67-1982 | COIL - condenser (V-200) | 1 | |
| 67-1763 | COIL - condenser (V-300) | 1 | ||
| 55-9915 | RIVET - coil | 10 | ||
| 14 | 61-4896 | TUBE - liquid | 1 | |
| 15 | 92-1502 | CLAMP - tube (10 mm) | 1 | |
| 92-1501 | CLAMP - tube (12 mm) | 2 | ||
| 51-375 | CLAMP - tube (15 mm) | 1 | ||
| 51-2010 | SCREW - clamp | 4 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 16 | 33-1015 | O-RING (#6) | 3 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 17 | 61-3852 | DEHYDRATOR | 1 | |
|
10-61-3852 | Дегидратор, V-Series/C-Series | 1 690 ₽ |
|
| 18 | 55-3991 | CLAMP - dehydrator | 1 | |
| 19 | 61-5144 | SIGHT GLASS | 1 |
