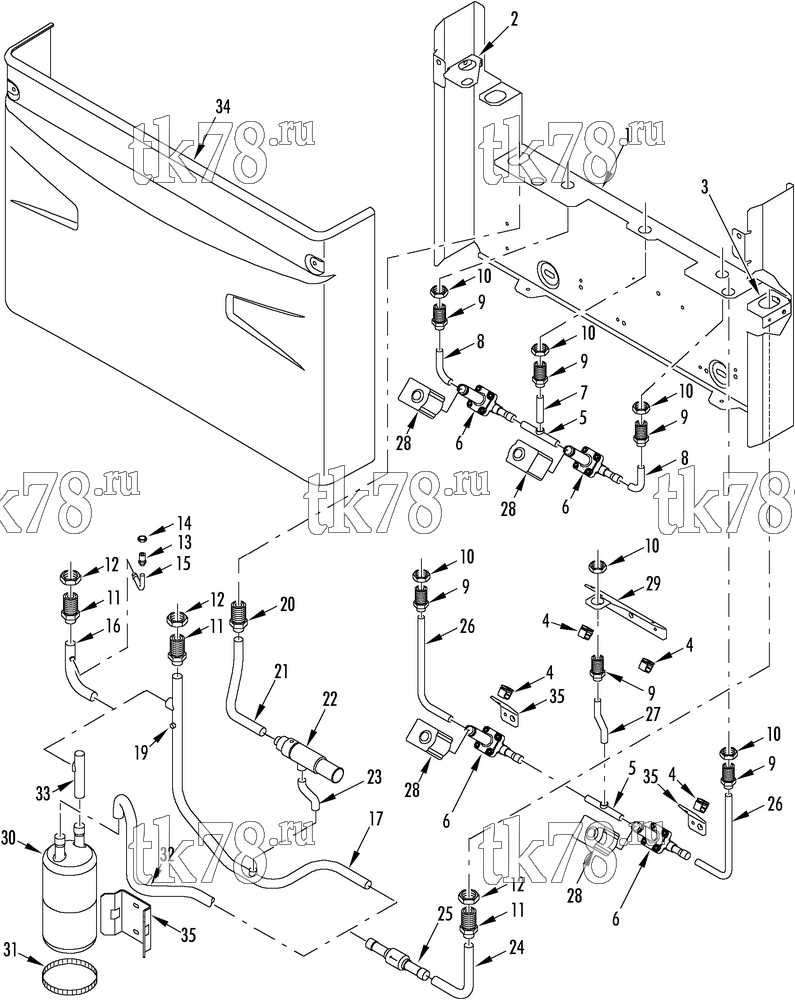

Установкa Thermo King V-200 MAX TC схема MTC & MTCH GROUP – 170H9
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6169 | FRAME | 1 | |
| 55-7739 | SCREW - frame to trailer | 4 | ||
| 55-8570 | WASHER | 4 | ||
| 55-7042 | NUT | 4 | ||
| 2 | 92-1577 | BRACKET - left | 1 | |
| 3 | 92-1578 | BRACKET - right | 1 | |
| 55-9898 | RIVET - bracket | 8 | ||
| 4 | 92-1580 | SADDLE - tube routing (1/2 in) | 4 | |
| 55-9898 | RIVET - saddle | 4 | ||
| 5 | 61-1263 | TUBE - tee | 1 | |
| 6 | 66-7878 | VALVE - solenoid | 4 | |
| 7 | 61-1264 | TUBE - fitting to tee | 1 | |
| 8 | 61-1150 | TUBE - valve to fitting | 2 | |
| 9 | 61-434 | FITTING - o-ring seal (#6) | 6 | |
| 10 | 55-9836 | NUT - fitting (#6) | 6 | |
| 11 | 61-432 | FITTING - o-ring seal (#10) | 3 | |
| 12 | 55-8295 | NUT - fitting (#10) | 3 | |
| 13 | 66-7711 | FITTING - o-ring seal (#4) | 1 | |
| 14 | 55-8218 | NUT - fitting (#8) | 1 | |
| 15 | 61-1151 | TUBE - oil return | 1 | |
| 16 | 61-1152 | TUBE - suction | 1 | |
| 17 | 61-1295 | TUBE - valve to adapter | 1 | |
| 18 | 61-1264 | TUBE - tee | 1 | |
| 19 | 55-9506 | ADAPTER - flare (1/4) | 1 | |
| 20 | 61-1228 | FITTING - o-ring seal (#10) | 1 | |
| 21 | 61-1271 | TUBE - fitting to valve | 1 | |
| 22 | 61-414 | VALVE - pressure regulator | 1 | |
| 23 | 61-1265 | TUBE - valve to tee | 1 | |
| 24 | 61-1266 | TUBE - check valve to tee | 1 | |
| 25 | 61-413 | VALVE - check | 1 | |
| 26 | 61-1267 | TUBE - valve to fitting (hot gas) | 1 | |
| 27 | 61-1268 | TUBE - fitting to tee (hot gas) | 1 | |
| 28 | 41-5047 | COIL - valve (12V) | 4 | |
| 41-5051 | COIL - valve (24V) | 4 | ||
| 204-1074 | TOOL - coil magnet | A/R | ||
| 29 | 92-1707 | BRACKET - fitting | 1 | |
| 30 | 67-1693 | TANK - accumulator (heat option) | 1 | |
| 31 | 55-9486 | BAND - tank | 1 | |
| 91-9987 | CLAMP - band | 1 | ||
| 32 | 61-1270 | TUBE - valve to tank (suction) | 1 | |
| 33 | 61-1153 | TUBE - tank to fitting | 1 | |
| 34 | 98-6170 | COVER | 1 | |
| 55-9505 | CLIP - cover | 2 | ||
| 55-7407 | SCREW - cover | 2 | ||
| 55-9492 | WASHER - cosmetic | 2 | ||
| 55-9490 | LOCKWASHER | 2 | ||
| 55-9491 | CAP - cosmetic | 2 | ||
| 55-9837 | SCREW - cover | 2 | ||
| 35 | 92-1579 | BRACKET - tank | 1 | |
| 55-9898 | RIVET - bracket | 2 |
