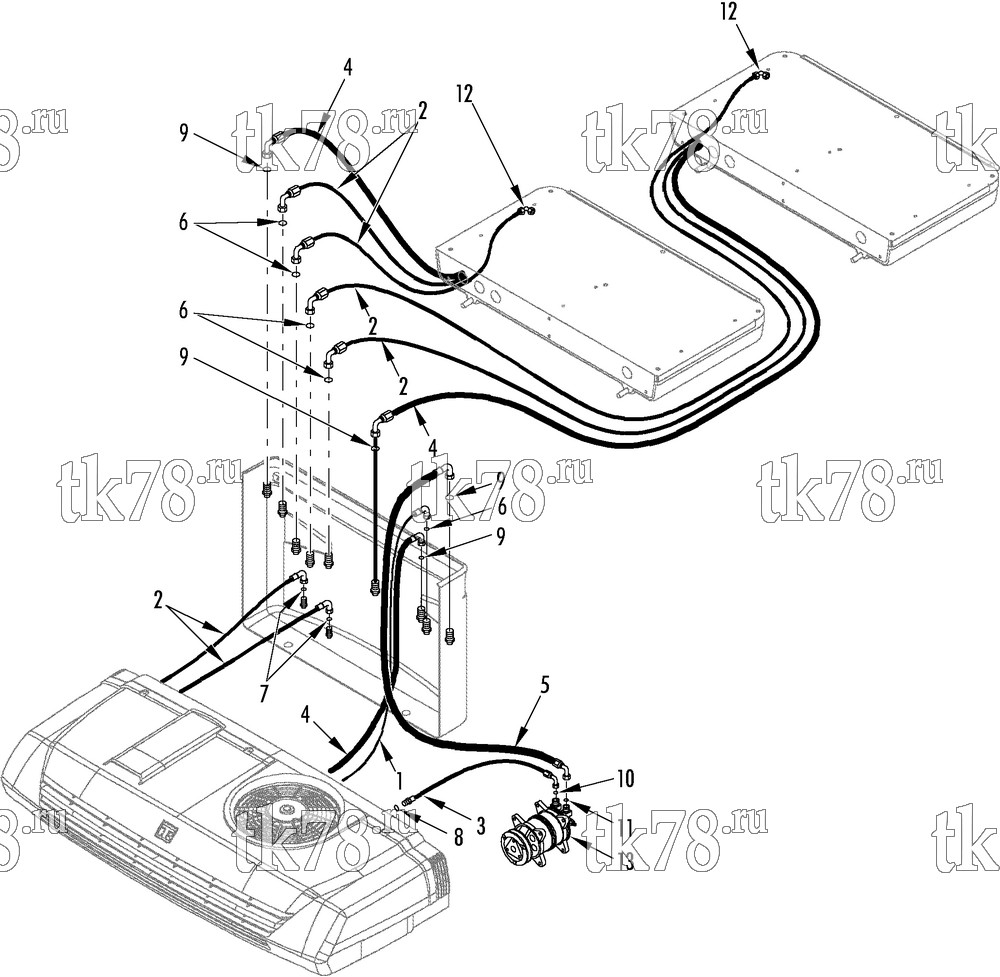

Установкa Thermo King V-200 MAX TC схема HOSE CONNECTIONS (TK2000 HOSES) – 170H5
Обновление от: 5/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1782 | HOSE - refrigeration (#4) | A/R | |
| 2 | 67-1708 | HOSE - refrigeration (#6) | A/R | |
| 3 | 67-1709 | HOSE - refrigeration (#8) | A/R | |
| 4 | 67-1710 | HOSE - refrigeration (#10) | A/R | |
| 5 | 67-1711 | HOSE - refrigeration (#12) | A/R | |
| 6 | 33-1461 | O-RING (5/16, #4 hose) | 2 | |
| 7 | 33-1015 | O-RING (3/8 id, #6 hose) | 3 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 8 | 33-566 | O-RING (5/8 id, #8 hose) | 1 | |
| 9 | 33-2115 | O-RING (7/16 id, #10 hose) | 1 | |
| 10 | 33-2350 | O-RING (7/16 id, #8, tube-O fitting) | 1 | |
| 11 | 33-672 | O-RING (9/16 id, #10, tube-O fitting) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 12 | 51-2417 | FITTING - expansion valve | 2 | |
| 13 | NSS | COMPRESSOR (see 169C2) | 1 |
