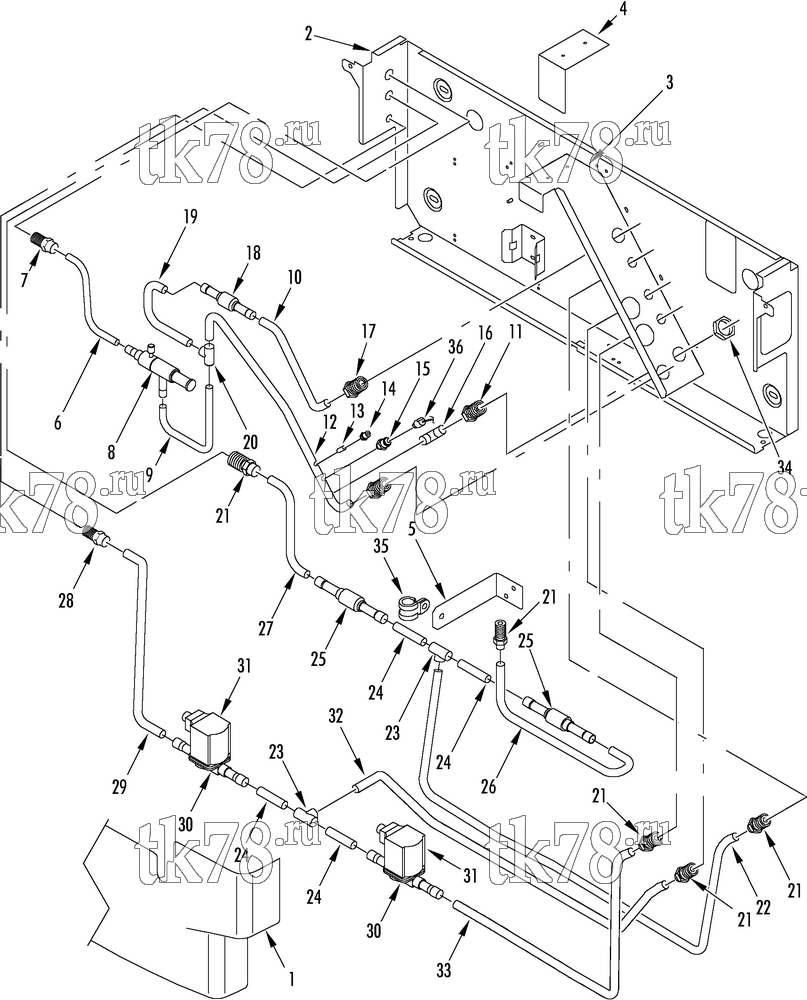

Установкa Thermo King V-200 MAX TC схема MULTI-TEMP CONNECTIONS (718253) – 163C7
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5834 | COVER - evaporator (tc/heat) | 1 | |
| 55-7407 | SCREW - cover | 5 | ||
| 55-9492 | WASHER - cosmetic | 5 | ||
| 55-9490 | WASHER - spring | 5 | ||
| 55-9491 | CAP - cosmetic | 5 | ||
| 55-9505 | CLIP | 5 | ||
| 2 | 98-5835 | FRAME - heat | 1 | |
| 55-7739 | SCREW - frame | 5 | ||
| 55-8570 | WASHER | 8 | ||
| 55-7042 | NUT | 4 | ||
| 3 | 92-633 | BRACKET - frame | 1 | |
| 4 | 92-634 | BRACKET - frame | 1 | |
| 5 | 92-635 | BRACKET - tube | 1 | |
| 55-8213 | RIVET - bracket | 9 | ||
| 6 | 61-559 | TUBE - inlet | 1 | |
| 7 | 55-8354 | FITTING - inlet | 1 | |
| 8 | 61-414 | REGULATOR - pressure | 1 | |
| 9 | 61-560 | TUBE - regulator to tee | 1 | |
| 10 | 61-561 | TUBE - fitting to check valve | 1 | |
| 11 | 61-422 | FITTING - o-ring seal (w/ nut) | 1 | |
| 12 | 61-563 | TUBE - suction (tank outlet) | 1 | |
| 13 | 61-424 | TUBE | 1 | |
| 14 | 66-7711 | FITTING (#4, o-ring) | 1 | |
| 15 | 55-9506 | ADAPTER - flare (1/4) | 1 | |
| 16 | 61-425 | TUBE - suction | 1 | |
| 17 | 61-432 | FITTING - o-ring seal (#10) | 2 | |
| 18 | 61-413 | VALVE - check | 1 | |
| 19 | 61-562 | TUBE - check valve to tee | 1 | |
| 20 | 55-904 | TEE | 1 | |
| 21 | 61-434 | FITTING - o-ring seal (#6) | 5 | |
| 22 | 61-565 | TUBE - fitting to tee | 1 | |
| 23 | 55-3251 | TEE | 2 | |
| 24 | 66-9214 | TUBE | 2 | |
| 25 | 61-412 | VALVE - check | 2 | |
| 26 | 61-566 | TUBE - fitting to check valve | 1 | |
| 27 | 61-564 | TUBE - fitting to check valve | 1 | |
| 28 | 61-570 | FITTING - o-ring seal (liquid, #4) | 1 | |
| 29 | 61-576 | TUBE - fitting to valve | 1 | |
| 30 | 66-7878 | VALVE - solenoid | 2 | |
| 31 | 41-5047 | COIL - valve (12V) | 2 | |
| 41-5051 | COIL - valve (24V) | 2 | ||
| 32 | 61-568 | TUBE - tee to fitting | 1 | |
| 33 | 61-569 | TUBE - valve to fitting | 1 | |
| 34 | 55-8295 | NUT - o-ring seal (#10) | 3 | |
| 55-8293 | NUT - o-ring seal (#8) | 5 | ||
| 55-8218 | NUT - o-ring seal (#4) | 1 | ||
| 35 | 92-1502 | CLAMP - tube | 2 | |
| 36 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
