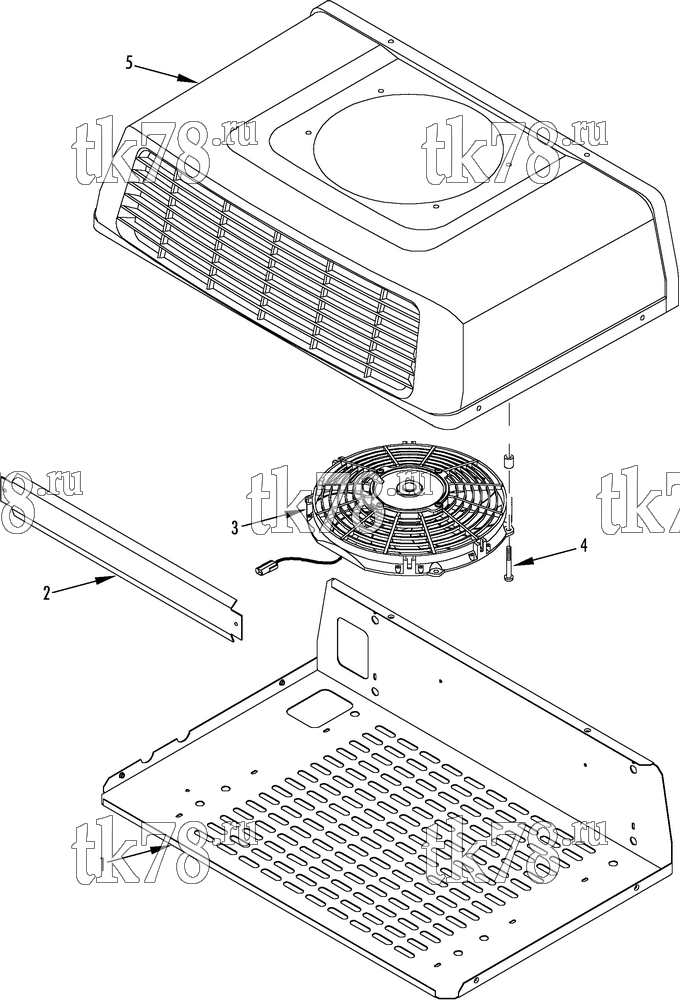

Установкa Thermo King V-190 & V-190 MAX схема CONDENSER COMPONENTS (V-190 & V-190 MAX) – 170E1
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6204 | FRAME - condenser | 1 | |
| 33-2656 | GROMMET (65 mm od) | 1 | ||
| 2 | 92-1714 | PANEL - deflector | 1 | |
| 55-7035 | SCREW - panel | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 3 | 78-1185 | MOTOR & FAN (12V) | 1 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 690 ₽ |
|
|
| 78-1186 | MOTOR & FAN (24V) | 1 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 4 | 55-7387 | SCREW - fan | 4 | |
| 55-7089 | FLATWASHER | 4 | ||
| 92-1715 | SPACER - fan | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7367 | NUT | 4 | ||
| 5 | 92-7231 | COVER - condenser | 1 | |
| 55-7407 | SCREW - cover | 6 | ||
| 55-7404 | LOCKWASHER | 6 | ||
| 55-7089 | FLATWASHER | 6 |
