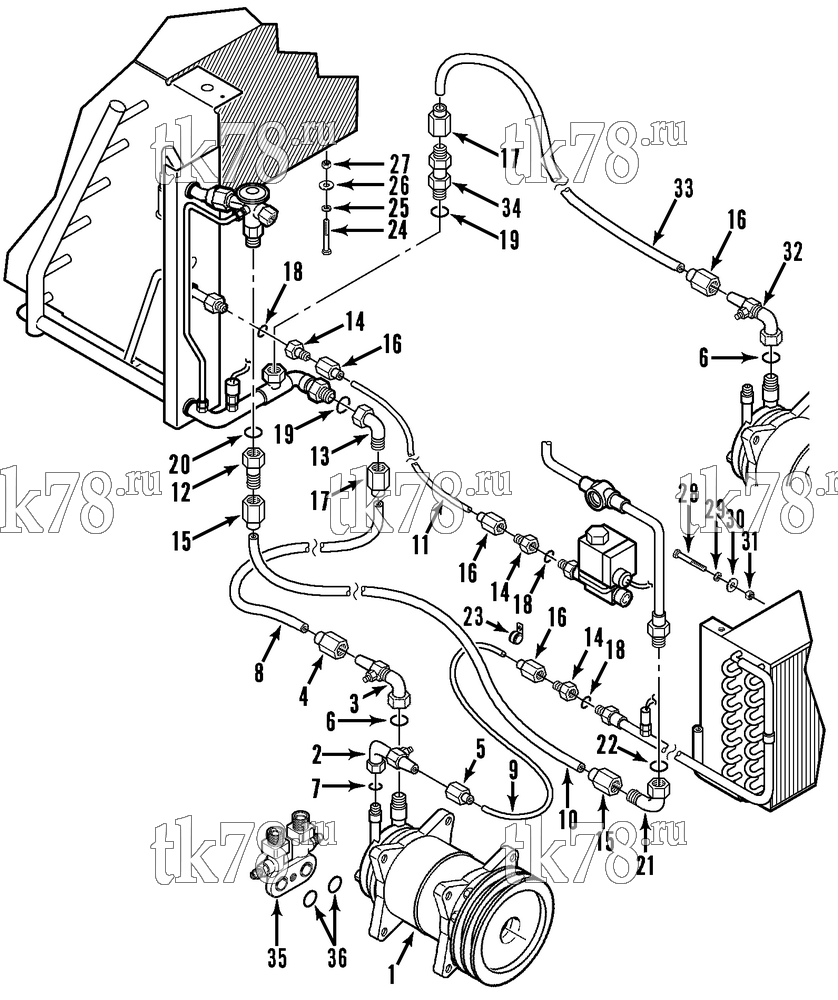

Установкa Thermo King V-170 & V-175 схема INSTALLATION GROUP (V-175) – 130B8
Обновление от: 6/3/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-560 | COMPRESSOR (12V, R134a) | 1 | |
| 102-839 | COMPRESSOR - TM15-XD (12V, R134a, see note) | 1 | ||
| 2 | 55-8816 | FITTING - elbow (#8, discharge) | 1 | |
| 3 | 55-8242 | FITTING - elbow (suction, #8) | 1 | |
| 4 | 55-8163 | SLEEVE - nut (#10) | 1 | |
| 5 | 55-8160 | SLEEVE - nut (#8) | 1 | |
| 6 | 33-2695 | O-RING (#10) | 1 | |
| 7 | 33-2694 | O-RING (#8) | 1 | |
| 8 | 67-945 | HOSE - suction (#10) | 1 | |
| 9 | 67-944 | HOSE - discharge (#8) | 1 | |
| 10 | 12-680 | HOSE - liquid (#8) | 1 | |
| 11 | 12-693 | HOSE - defrost (#6) | 1 | |
| 12 | 55-8198 | FITTING - straight (#6) | 1 | |
| 13 | 55-8149 | FITTING - elbow (#10) | 1 | |
| 14 | 55-8170 | FITTING - straight (#8) | 1 | |
| 15 | 55-8159 | SLEEVE - nut (#6) | 1 | |
| 16 | 55-8160 | SLEEVE - nut (#8) | 1 | |
| 17 | 55-8163 | SLEEVE - nut (#10) | 1 | |
| 18 | 33-566 | O-RING (#8) | 1 | |
| 19 | 33-2115 | O-RING (#10) | 1 | |
| 20 | 55-8240 | WASHER (#6) | 1 | |
| 21 | 55-8166 | FITTING - elbow (liquid, #6) | 1 | |
| 22 | 33-1015 | O-RING (#6) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 23 | 92-1690 | CLAMP (50/15) | 1 | |
| 91-6692 | CLAMP (45/15) | 1 | ||
| 91-6690 | CLAMP (22/15) | 1 | ||
| 24 | 55-8248 | SCREW - evaporator | 4 | |
| 25 | 55-8250 | LOCKWASHER | 4 | |
| 26 | 55-7085 | FLATWASHER | 4 | |
| 27 | 55-8251 | NUT - evaporator | 4 | |
| 28 | 55-8534 | SCREW - condenser | 4 | |
| 29 | 55-8537 | LOCKWASHER | 4 | |
| 30 | 55-8536 | FLATWASHER | 4 | |
| 31 | 55-7348 | NUT - condenser | 4 | |
| 32 | 55-8147 | FITTING - elbow (suction, #10) | 1 | |
| 33 | 12-679 | HOSE - suction (#10) | 1 | |
| 34 | 55-8171 | FITTING - straight (suction, #10) | 1 | |
| 35 | 22-992 | MANIFOLD - compressor (90 deg, w/ o-rings) | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 36 | 33-2882 | O-RING | 2 |
