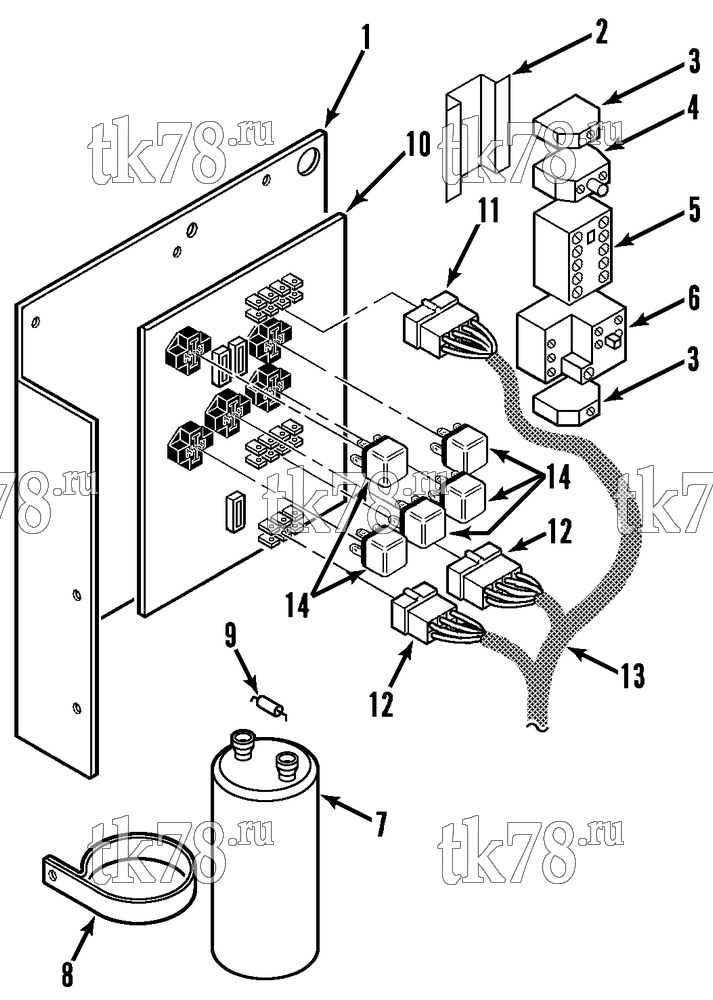

Установкa Thermo King V-170 & V-175 схема CONTROL BOX (V-175) – 130B6
Обновление от: 5/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1666 | BOX - control (complete, 12V) | 1 | ||
| 45-1667 | BOX - control (complete, 24V) | 1 | ||
| 1 | 91-6380 | BRACKET - control box | 1 | |
| 55-7340 | SCREW - bracket | 2 | ||
| 55-7036 | SCREW - bracket | 1 | ||
| 55-8556 | SCREW - bracket | 1 | ||
| 55-7075 | LOCKWASHER | 1 | ||
| 41-3661 | FUSE (4 amp) | |||
| 55-8250 | FLATWASHER | 1 | ||
| 55-7354 | NUT | 1 | ||
| 2 | 91-6317 | BRACKET - connector | 1 | |
| 55-8557 | SCREW - bracket | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 3 | 41-898 | CONNECTOR - end | 2 | |
| 4 | 41-942 | CONNECTOR - fuse | 1 | |
| 41-3661 | FUSE (4 amp) | 1 | ||
| 5 | 42-271 | CONTACTOR (12V) | 1 | |
| 41-1005 | CONTACTOR (24V) | 1 | ||
| 6 | 41-951 | RELAY - overload (1ph) | 1 | |
| 41-936 | RELAY - overload (3 ph) | 1 | ||
| 41-953 | SOCKET - relay (1ph) | 1 | ||
| 41-950 | SOCKET - relay (3ph) | 1 | ||
| 7 | 41-3787 | KIT - capacitor | 1 | |
| 41-912 | CAPACITOR (24V) | 1 | ||
| 8 | 91-7168 | CLAMP - capacitor | 1 | |
| 9 | 41-947 | RESISTOR | 1 | |
| 10 | 41-4260 | BOARD - printed circuit (12V, 1ph, 24V) | 1 | |
| 41-1042 | BOARD - printed circuit (12V, 3ph) | 1 | ||
| 41-4259 | BOARD - printed circuit (12V, 3ph) | 1 | ||
| 41-950 | SOCKET - relay (3ph) | 5 | ||
| 55-8214 | SCREW - board | 2 | ||
| 55-7354 | LOCKWASHER | 5 | ||
| 55-7075 | FLATWASHER | 7 | ||
| 55-7354 | NUT | 5 | ||
| 11 | 41-876 | CONNECTOR (6-pin) | 1 | |
| 12 | 41-946 | CONNECTOR (8-pin) | 2 | |
| 55-8226 | SCREW - connector (nylon) | 3 | ||
| 13 | 45-1659 | HARNESS - control box | 1 | |
| 14 | 41-895 | RELAY (12V) | 5 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-3707 | RELAY (24V) | 5 |
