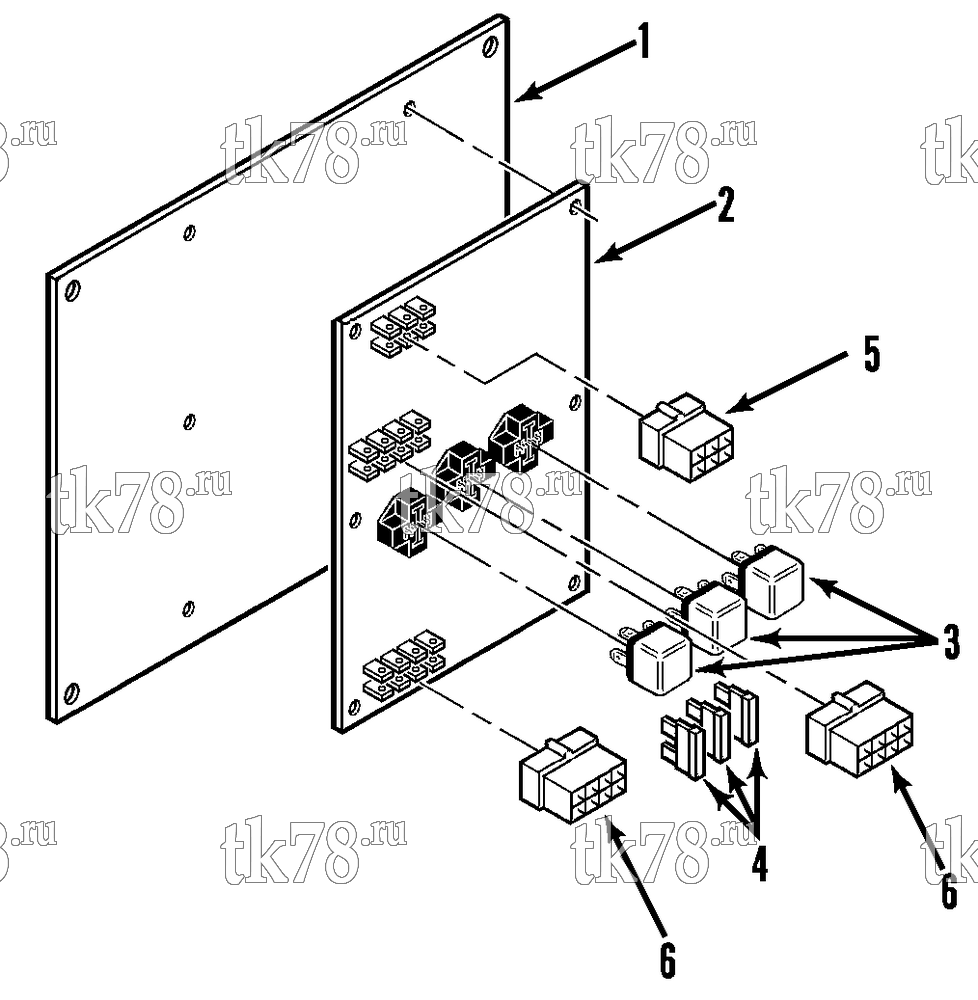

Установкa Thermo King V-170 & V-175 схема CONTROL BOX (V-170) – 130A10
Обновление от: 9/24/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6368 | BRACKET - control box | 1 | |
| 55-8214 | SCREW - bracket | 3 | ||
| 55-8550 | SCREW - bracket | 1 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7354 | NUT | 8 | ||
| 2 | 41-4258 | BOARD - printed circuit (12V) | 1 | |
| 55-8551 | SCREW - board | 6 | ||
| 3 | 41-895 | RELAY (12V) | 3 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-3707 | RELAY (24V) | 3 | ||
| 4 | 44-9758 | FUSE (12V, 3/1, 3/2, 3/3) | 3 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 41-1022 | FUSE (24V 3/1, 3/2, 3/3) | 3 | ||
| 5 | 41-876 | CONNECTOR (6-pin) | 1 | |
| 6 | 41-946 | CONNECTOR (8-pin) | 2 | |
| 55-8552 | SCREW - connector (nylon) | 1 |
