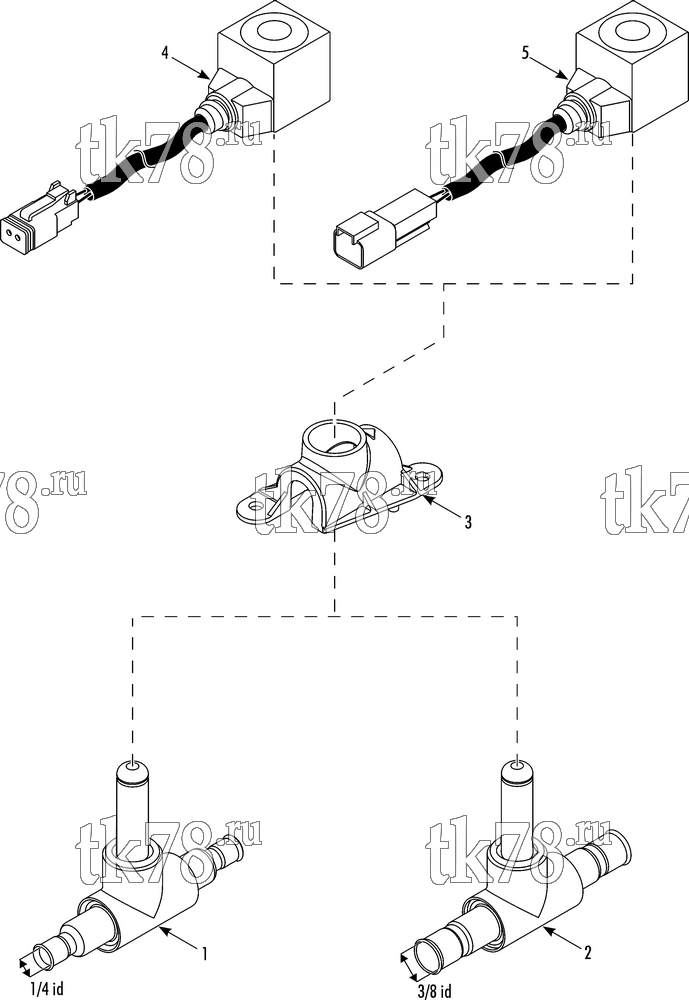

Установкa Thermo King V-100 Series DSR схема SOLENOID VALVE – 269A7
Обновление от: 4/10/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-6116 | VALVE - solenoid (1/4 id, see note) | 1 | |
| 2 | 61-6110 | VALVE - solenoid (3/8 id, see note) | 1 | |
| 3 | 92-9925 | BRACKET - valve | 1 | |
| 51-2010 | SCREW - bracket | 2 | ||
| 51-2012 | NUT | 2 | ||
| 4 | 42-581 | COIL - valve (12V) | 1 | |
| 42-582 | COIL - valve (24V) | 1 | ||
| 44-9585 | PLUG (2 pin) | 1 | ||
| 44-9586 | WEDGE (2 pin) | 1 | ||
| 5 | 42-764 | COIL - valve (12V) | 1 | |
| 42-765 | COIL - valve (24V) | 1 | ||
| 44-9589 | RECEPTACLE (2 pin) | 1 | ||
| 44-9590 | WEDGE (2 pin) | 1 |
