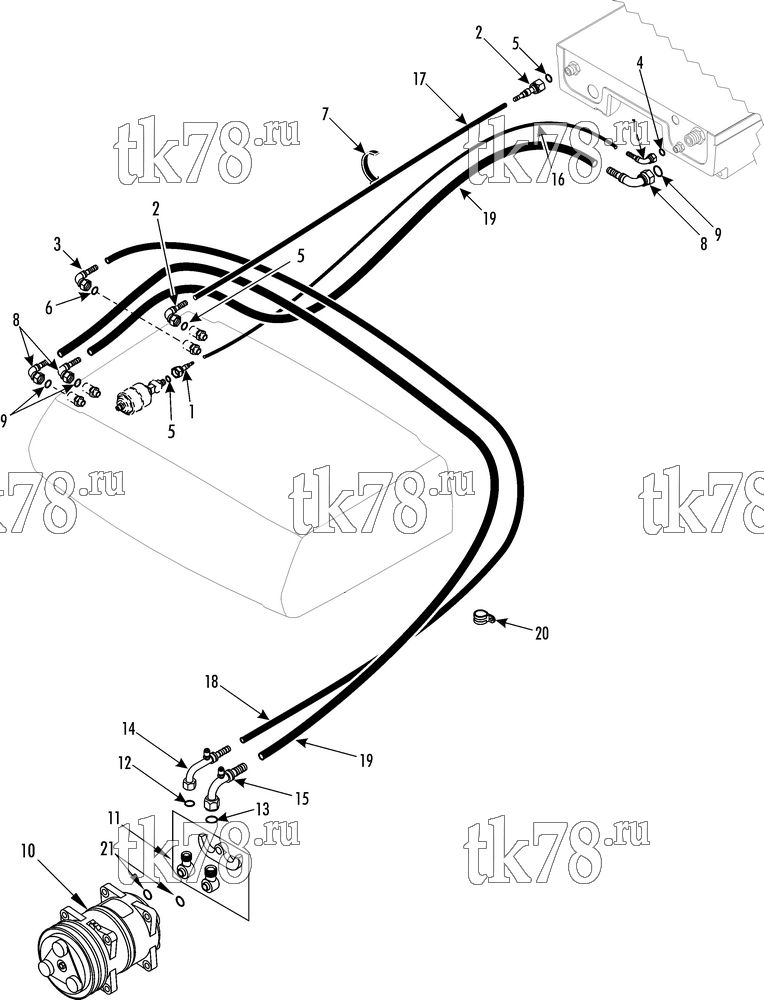

Установкa Thermo King V-100 Series DSR схема HOSE CONNECTIONS (V-100 20, 50 after 10/11) – 231A6
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 51-2437 | FITTING - liquid/oil return (90 deg, #4) | 1 | |
| 61-3969 | FITTING - straight (#4 hose x 6 fitting) | 1 | ||
| 2 | 51-2436 | FITTING - hot gas (90 deg, #6) | 2 | |
| 51-2482 | FITTING - hot gas (straight, #6) | 1 | ||
| 3 | 51-2423 | FITTING - discharge (90 deg, #8) | 1 | |
| 4 | 33-1461 | O-RING (#4) | 1 | |
| 5 | 33-1015 | O-RING (#6) | 3 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 6 | 33-566 | O-RING - discharge (#8) | 1 | |
| 7 | 33-1216 | EXTRUSION - hoses (bulkhead insulation) | 1 | |
| 8 | 51-2448 | FITTING - suction (90 deg, #10) | 3 | |
| 9 | 33-2115 | O-RING - suction (#10) | 3 | |
| 10 | NSS | COMPRESSOR - TM08-HD (see 250E5) | 1 | |
| 203-548 | OIL - compressor (1 liter) | A/R | ||
| 11 | 20-193 | KIT - swivel manifold (incl manifold bracket & screw) | 1 | |
| 51-1652 | SCREW - manifold | 1 | ||
| 12 | 33-2350 | O-RING - discharge (7/16 id) | 1 | |
| 13 | 33-672 | O-RING - suction (9/16 id) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 14 | 51-2432 | FITTING - discharge (90 deg, #8) | 1 | |
| 15 | 51-2469 | FITTING - suction (90 deg, #10) | 1 | |
| 16 | 67-1782 | HOSE (TK2000, #4 x 50 ft) | A/R | |
| 17 | 61-617 | HOSE (TK2000, #6 x 50 ft) | A/R | |
| 18 | 61-627 | HOSE (TK2000, #8 x 50 ft) | A/R | |
| 19 | 61-637 | HOSE (TK2000, #10 x 50 ft) | A/R | |
| 20 | 92-1903 | CLAMP - hose (22 mm) | 5 | |
| 91-6692 | CLAMP - hose (45 mm) | 5 | ||
| 92-1690 | CLAMP - hose (50 mm) | 2 | ||
| 51-792 | SCREW - clamp | 12 | ||
| 21 | 33-2882 | O-RING | 2 |
