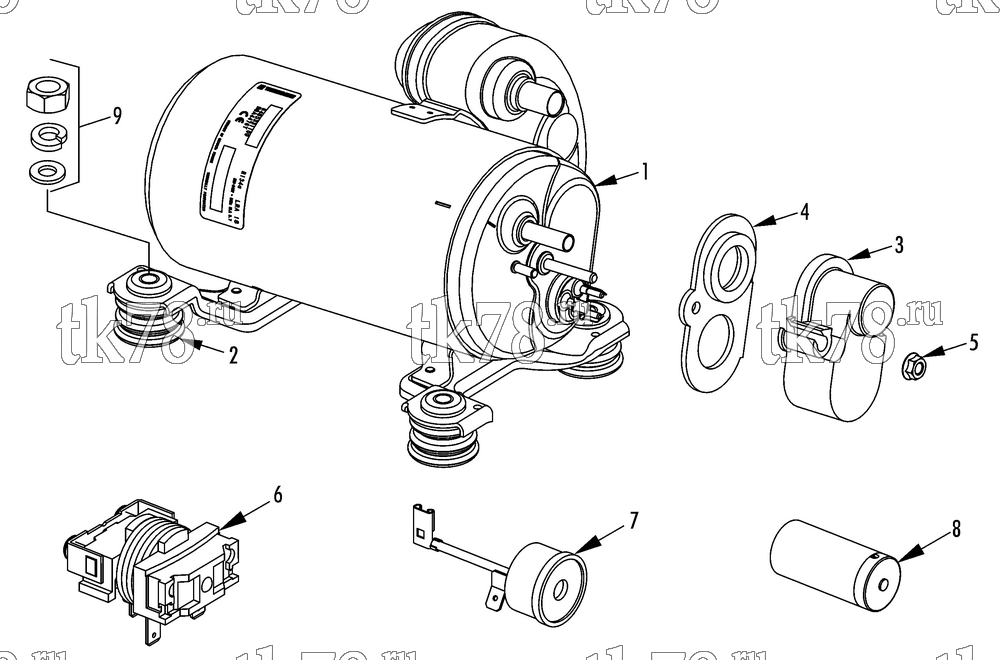

Установкa Thermo King V-100 Series DSR схема HERMETIC COMPRESSOR - R134a – 231A5
Обновление от: 8/5/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-923 | COMPRESSOR - hermetic (R134a, 220-240/1/50) | 1 | |
| 203-548 | OIL - compressor (1 liter) | A/R | ||
| 2 | 92-7169 | MOUNT - compressor | 4 | |
| 3 | 92-3609 | COVER - electrical | 1 | |
| 4 | 33-3947 | GASKET - cover | 1 | |
| 5 | 51-829 | NUT - cover | 1 | |
| 6 | 41-8337 | RELAY - compressor start | 1 | |
| 7 | 41-8338 | SWITCH - overload | 1 | |
| 8 | 41-8339 | CAPACITOR (50uF) | 1 | |
| 9 | 55-7825 | NUT - compressor | 4 | |
| 55-7066 | LOCKWASHER | 4 | ||
| 55-8548 | FLATWASHER | 4 |
