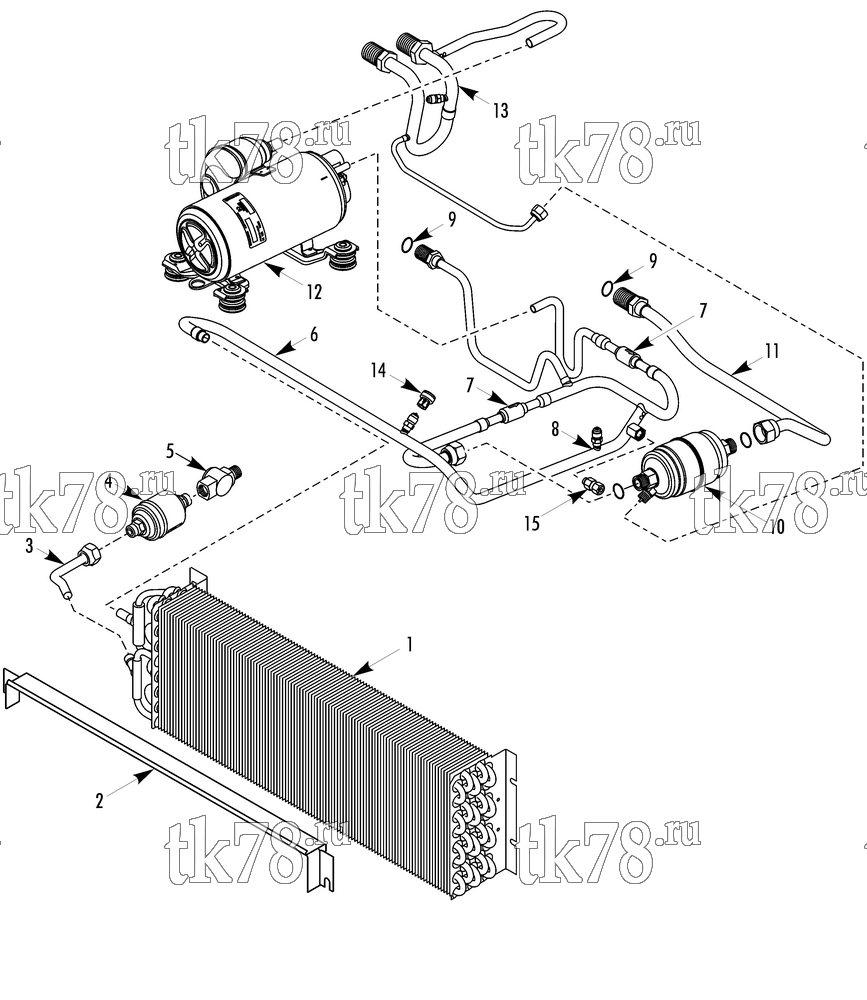

Установкa Thermo King V-100 Series DSR схема REFRIGERATION CONDENSER (20) – 231A4
Обновление от: 8/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2306 | COIL - condenser | 1 | |
| 33-4369 | SEALER - side | A/R | ||
| 55-9481 | SCREW - coil | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-9826 | FLATWASHER | 4 | ||
| 2 | 98-7802 | CANALIZER - condenser | 1 | |
| 55-7340 | SCREW - canalizer | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-9826 | WASHER | 2 | ||
| 3 | 61-4394 | TUBE - liquid | 1 | |
| 4 | 61-3852 | DEHYDRATOR | 1 | |
|
10-61-3852 | Дегидратор, V-Series/C-Series | 1 690 ₽ |
|
| 33-1015 | O-RING (3/8 id) | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 55-3991 | CLAMP | 1 | ||
| 5 | 61-5144 | SIGHT GLASS (#6) | 1 | |
| 6 | 61-4395 | TUBE - discharge | 1 | |
| 7 | 61-2748 | VALVE - check | 2 | |
| 8 | 61-2504 | PORT - valve | 2 | |
| 11-7777 | VALVE - insert | 1 | ||
| 9 | 33-566 | O-RING (1/2 id) | 2 | |
| 10 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 370 ₽ |
|
| 55-6225 | CLAMP - oil separator | 1 | ||
| 11 | 61-4396 | TUBE - bulkhead to oil separator | 1 | |
| 12 | 102-923 | COMPRESSOR (R134a, 220-240/1/50, see 231A5) | 1 | |
| 102-924 | COMPRESSOR (R404A, 220-240/1/50, see 231B0) | 1 | ||
| 13 | 61-4397 | TUBE - suction | 1 | |
| 203-534 | TAPE - sealer | A/R | ||
| 14 | 41-5781 | TRANSDUCER - discharge | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 15 | 61-1193 | VALVE - relief | 1 |
