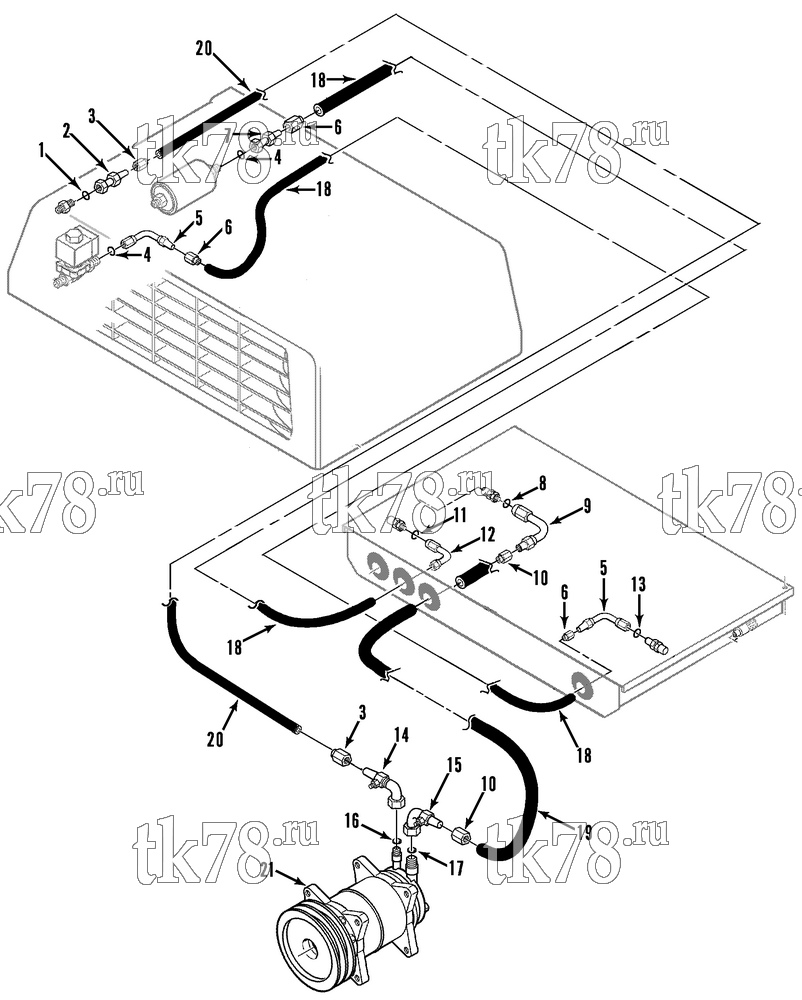

Установкa Thermo King V-090, 90E, 90H, 90 MAX, 90T & 95 схема INSTALLATION COMPONENTS (V-090 MAX 12V R404A) – 140A5
Обновление от: 2/13/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-566 | O-RING (#8) | 1 | |
| 2 | 55-8170 | FITTING - straight (#8) | 1 | |
| 3 | 55-8160 | NUT - fitting (#8) | 2 | |
| 4 | 33-1015 | O-RING (#6) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 5 | 55-8155 | FITTING - elbow (#6) | 2 | |
| 6 | 55-8159 | NUT - fitting (#6) | 3 | |
| 7 | 55-8149 | FITTING - straight (#6) | 1 | |
| 8 | 33-2115 | O-RING (#10) | 1 | |
| 9 | 55-8832 | FITTING - elbow (45, #10) | 1 | |
| 10 | 55-8163 | NUT - fitting (#10) | 2 | |
| 11 | 55-8240 | GASKET - flare | 1 | |
| 12 | 55-8197 | ELBOW (3/8) | 1 | |
| 13 | 33-1015 | O-RING (#6) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 14 | 55-8816 | FITTING - elbow (#8, discharge) | 1 | |
| 15 | 55-8242 | FITTING - elbow (#10, suction) | 1 | |
| 16 | 33-2694 | O-RING (#8, discharge) | 1 | |
| 17 | 33-2695 | O-RING (#10, suction) | 1 | |
| 18 | 12-693 | HOSE - refrigerant (#6) | 2 | |
| 19 | 67-945 | HOSE - refrigerant (#10) | 1 | |
| 20 | 67-944 | HOSE - refrigerant (#8) | 1 | |
| 21 | 102-588 | COMPRESSOR - TM13-HA (12V, see 189C3) | 1 |
