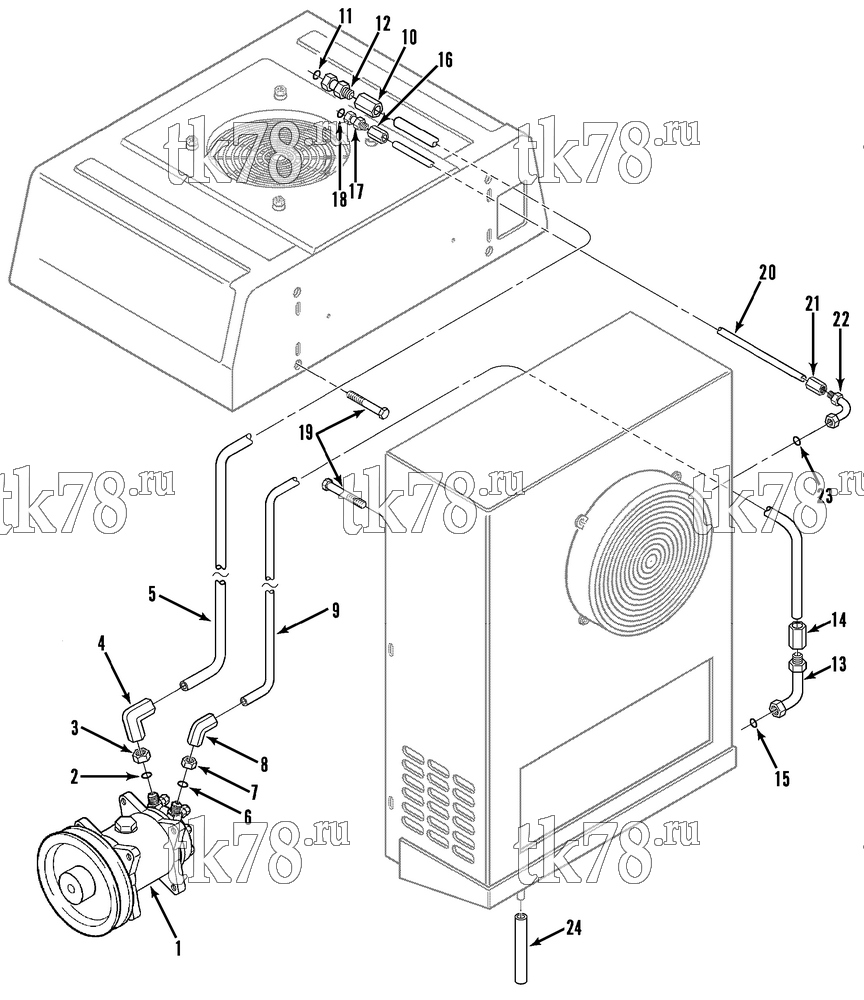

Установкa Thermo King V-090, 90E, 90H, 90 MAX, 90T & 95 схема INSTALLATION COMPONENTS (V-090E) – 129A8
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1016 | COMPRESSOR - 13XD (R134a, see 189C3) | 1 | |
| 203-513 | OIL - compressor | 1 | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 203-518 | KIT - acid test (polyol ester kit) | 1 | ||
| 2 | 33-2694 | O-RING (#8) | 1 | |
| 3 | 55-8160 | NUT (#8) | 1 | |
| 4 | 55-8816 | ELBOW (#8) | 1 | |
| 5 | 67-944 | HOSE - discharge (#8, 6m) | 1 | |
| 6 | 33-2695 | O-RING (#10) | 1 | |
| 7 | 55-8163 | NUT (#10) | 1 | |
| 8 | 55-8242 | ELBOW (#10) | 1 | |
| 9 | 67-945 | HOSE - suction (#10, 6 m) | 1 | |
| 10 | 55-8160 | NUT (#8) | 1 | |
| 11 | 33-566 | O-RING (#8) | 1 | |
| 12 | 55-8170 | FITTING - straight (#8) | 1 | |
| 13 | 55-8147 | ELBOW (#10) | 1 | |
| 14 | 55-8163 | NUT (#10) | 1 | |
| 15 | 33-2115 | O-RING (#10) | 1 | |
| 16 | 55-8176 | NUT (#4) | 1 | |
| 17 | 55-8148 | FITTING - straight (#4) | 1 | |
| 18 | 33-1461 | O-RING (#4) | 1 | |
| 19 | 55-8248 | SCREW - unit mounting | 8 | |
| 55-7085 | FLATWASHER | 16 | ||
| 55-8250 | LOCKWASHER | 8 | ||
| 55-8251 | NUT | 8 | ||
| 20 | 12-825 | HOSE - liquid (#4, 1.5 m) | 1 | |
| 21 | 55-8176 | NUT (#4) | 1 | |
| 22 | 55-8239 | ELBOW (#4) | 1 | |
| 23 | 55-8240 | SEAL | 1 | |
| 24 | 11-8259 | TUBE - drain | 2 |
