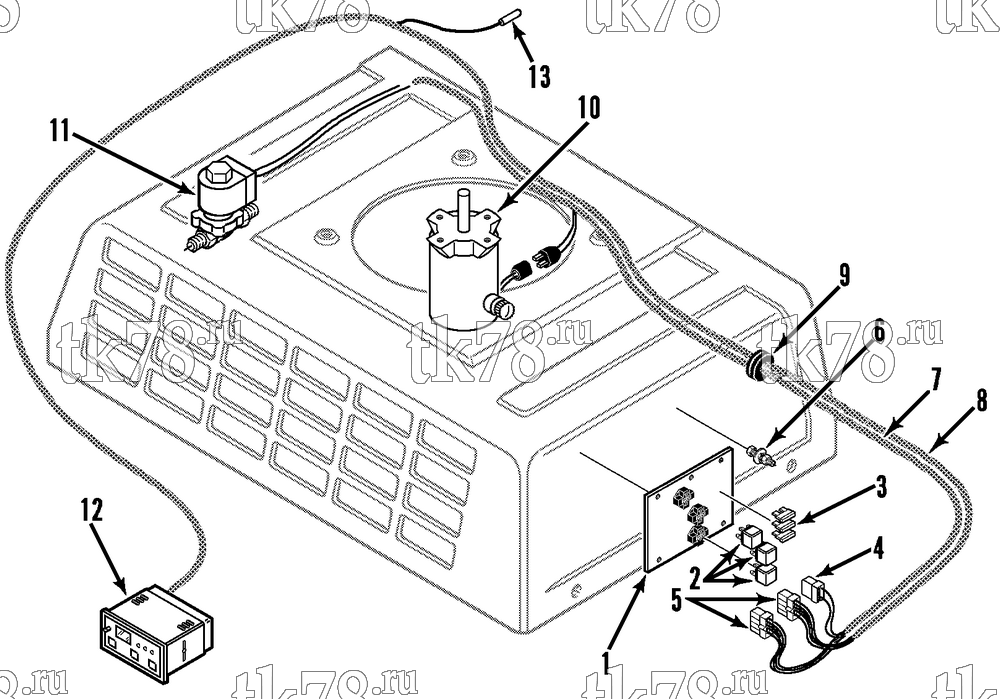

Установкa Thermo King V-090, 90E, 90H, 90 MAX, 90T & 95 схема ELECTRICAL COMPONENTS (V-090) – 125A8
Обновление от: 9/24/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-1064 | BOARD - printed circuit (12V, V-090H) | 1 | |
| 41-1066 | BOARD - printed circuit (24V, V-090H) | 1 | ||
| 41-1061 | BOARD - printed circuit (24V, V-090) | 1 | ||
| 41-1062 | BOARD - printed circuit (12V, V-090) | 1 | ||
| 55-8227 | SCREW - board | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 55-7861 | LOCKWASHER | 6 | ||
| 55-7698 | NUT | 6 | ||
| 2 | 41-895 | RELAY (12V) | 3 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-3707 | RELAY (24V) | 3 | ||
| 91-6508 | NAMEPLATE - D | 1 | ||
| 91-6509 | NAMEPLATE - FR | 1 | ||
| 91-6510 | NAMEPLATE - PR | 1 | ||
| 3 | 44-9758 | FUSE (12V) | 3 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 41-1022 | FUSE (24V) | 3 | ||
| 4 | 41-876 | CONNECTOR (6-pin) | 2 | |
| 5 | 41-946 | CONNECTOR (8-pin) | 2 | |
| 6 | 55-8214 | SCREW - ground | 1 | |
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 7 | 45-1628 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 8 | 45-1618 | HARNESS - cab control box | 1 | |
| 9 | 33-2656 | GROMMET | 1 | |
| 10 | 78-1185 | MOTOR (12V, see 125A1) | 1 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 870 ₽ |
|
|
| 41-2282 | MOTOR (24V, see 125A1) | 1 | ||
| 91-8008 | SPACER | 4 | ||
| 11 | 41-980 | COIL - solenoid (12V) | 1 | |
| 41-981 | COIL - solenoid (24V) | 1 | ||
| 12 | 45-1771 | BOX - cab control | 1 |
