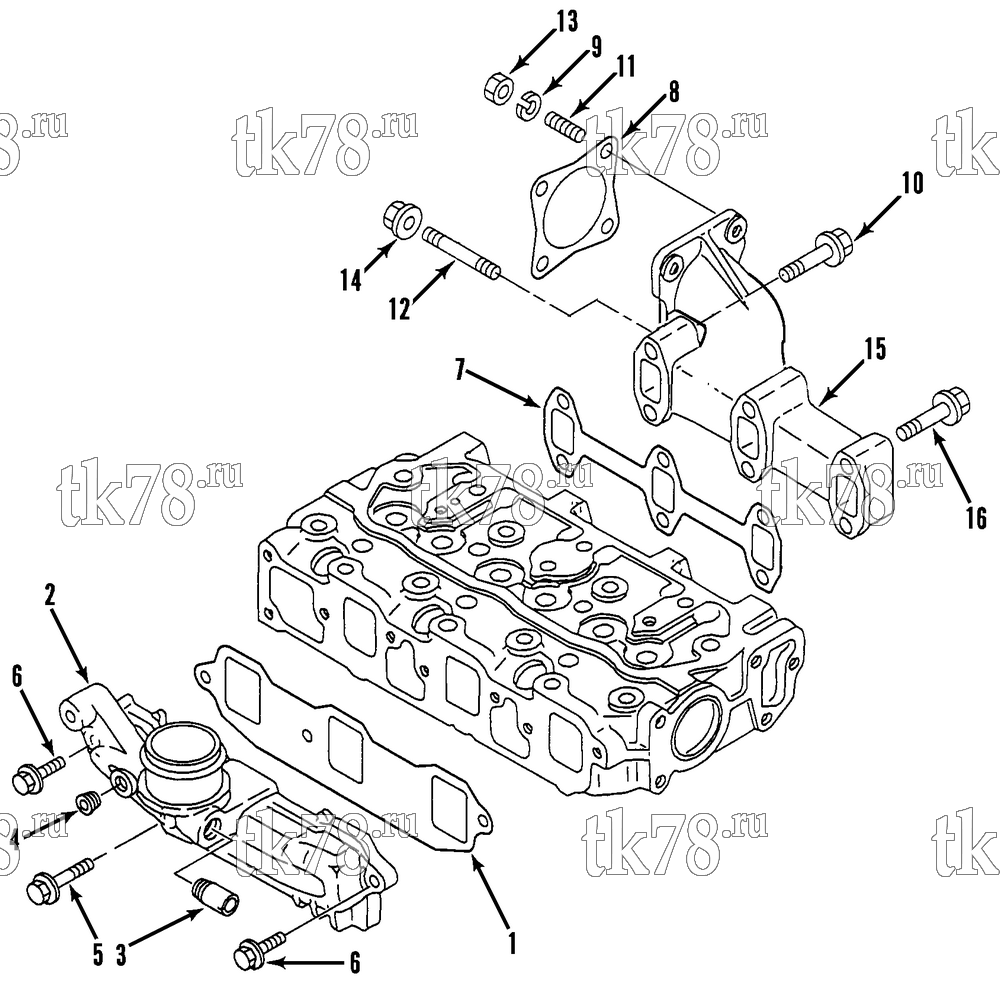

Установкa Thermo King UTS схема INTAKE & EXHAUST MANIFOLD – 134F7
Обновление от: 10/12/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-1905 | GASKET - intake | 1 | |
|
33-1905 OEM | Прокладка впускного коллектора, Yanmar 3.88 / 3.95 | 1 900 ₽ |
|
| 2 | 11-6586 | MANIFOLD - intake | 1 | |
| 3 | 11-8792 | JOINT - breather | 1 | |
| 4 | 55-5763 | PLUG (npt 1/8) | 1 | |
| 5 | 55-5988 | SCREW - manifold (45 mm lg) | 1 | |
| 6 | 55-5786 | SCREW (16 mm lg) | 2 | |
| 7 | 33-1906 | GASKET - exhaust | 1 | |
|
33-1906 OEM | Прокладка выпускного коллектора, Yanmar 3.88 / 3.95 | 1 920 ₽ |
|
| 8 | 33-1907 | GASKET - muffler | 1 | |
|
10-33-1907 | Прокладка глушителя, Yanmar 388 / 395 | 1 070 ₽ |
|
| 9 | 55-6183 | LOCKWASHER (M8) | 4 | |
| 10 | 55-8717 | SCREW (80 mm lg) | 4 | |
| 11 | 55-6184 | STUD - exhaust elbow | 4 | |
| 12 | 55-6383 | STUD - manifold | 2 | |
| 13 | 55-6186 | NUT | 4 | |
| 14 | 55-5791 | NUT | 2 | |
| 15 | 11-8864 | MANIFOLD - exhaust | 1 | |
| 16 | 55-6191 | SCREW - manifold (35 mm lg) | 2 | |
| 30-236 | KIT - gasket (see 132C13) | 1 | ||
|
10-30-236 | Набор прокладок, Yanmar 395, RD-II/TD-II/URD-III/ TS-500/600 | 40 700 ₽ |
|
|
PP-30-236 | Набор прокладок, Yanmar 395, RD-II/TD-II/URD-III/ TS-500/600 | 16 730 ₽ |
|
