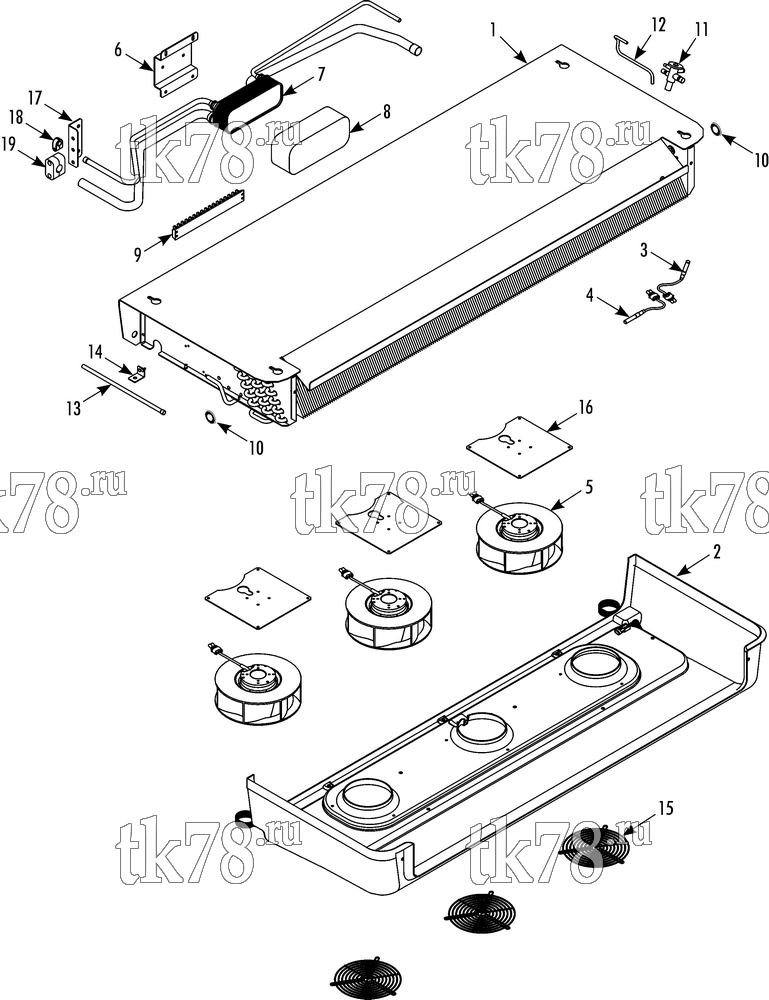

Установкa Thermo King UT-800 схема EVAPORATOR ASSEMBLY (ES800) – 259G2
Обновление от: 6/5/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2480 | COIL - evaporator | 1 | |
| 55-8375 | NUT - captive | 19 | ||
| 2 | 98-8897 | COVER - evaporator | 1 | |
| 51-2010 | SCREW - cover | 9 | ||
| 55-9492 | WASHER - cosmetic | 2 | ||
| 55-9491 | CAP - cosmetic | 2 | ||
| 92-3466 | TUBE - drain | 2 | ||
| 51-791 | WASHER - tube | 2 | ||
| 51-790 | NUT - tube | 2 | ||
| 3 | 42-527 | SENSOR - coil | 1 | |
| 4 | 42-528 | SENSOR - discharge | 1 | |
| 33-4957 | EXTRUSION - rubber | 2 | ||
| 55-2239 | CLAMP - sensor | 2 | ||
| 51-2010 | SCREW - clamp | 2 | ||
| 51-2270 | NUT | 2 | ||
| 5 | 78-1554 | BLOWER - evaporator (12V) | 3 | |
|
10-78-1362 | Вентилятор испарителя, Spectrum | 19 200 ₽ |
|
| 51-250 | SCREW - blower | 12 | ||
| 55-7861 | LOCKWASHER | 12 | ||
| 55-7697 | FLATWASHER | 12 | ||
| 6 | 92-9948 | BRACKET - heat exchanger | 1 | |
| 7 | 61-2527 | HEAT EXCHANGER | 1 | |
| 8 | 33-3444 | INSULATION - heat exchanger | 1 | |
| 9 | 44-6110 | BOARD - terminal | 1 | |
| 44-2915 | JUMPER | 2 | ||
| 51-2284 | SCREW - board | 4 | ||
| 55-7698 | NUT | 4 | ||
| 10 | 33-2923 | GROMMET (35 mm) | 2 | |
| 11 | 61-975 | VALVE - expansion (R404A) | 1 | |
| 203-534 | TAPE - insulating | A/R | ||
| 12 | 61-6141 | TUBE - equalizer | 1 | |
| 13 | 61-6074 | TUBE - serpentine | 1 | |
| 14 | 92-9949 | BRACKET - defrost tube | 2 | |
| 15 | 92-9519 | GRILLE - blower | 3 | |
| 51-1808 | RIVET - grille (unscrewing) | 9 | ||
| 16 | 92-9892 | PLATE - blower | 3 | |
| 17 | 92-9950 | BRACKET - tube | 1 | |
| 18 | 91-759 | CLAMP - liquid tube | 1 | |
| 19 | 91-2487 | CLAMP - suction tube | 2 | |
| 55-8464 | SCREW - clamp (35mm) | 1 | ||
| 55-7029 | SCREW - clamp (65mm) | 2 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 55-7170 | LOCKWASHER | 3 | ||
| 51-2270 | NUT | 3 |
