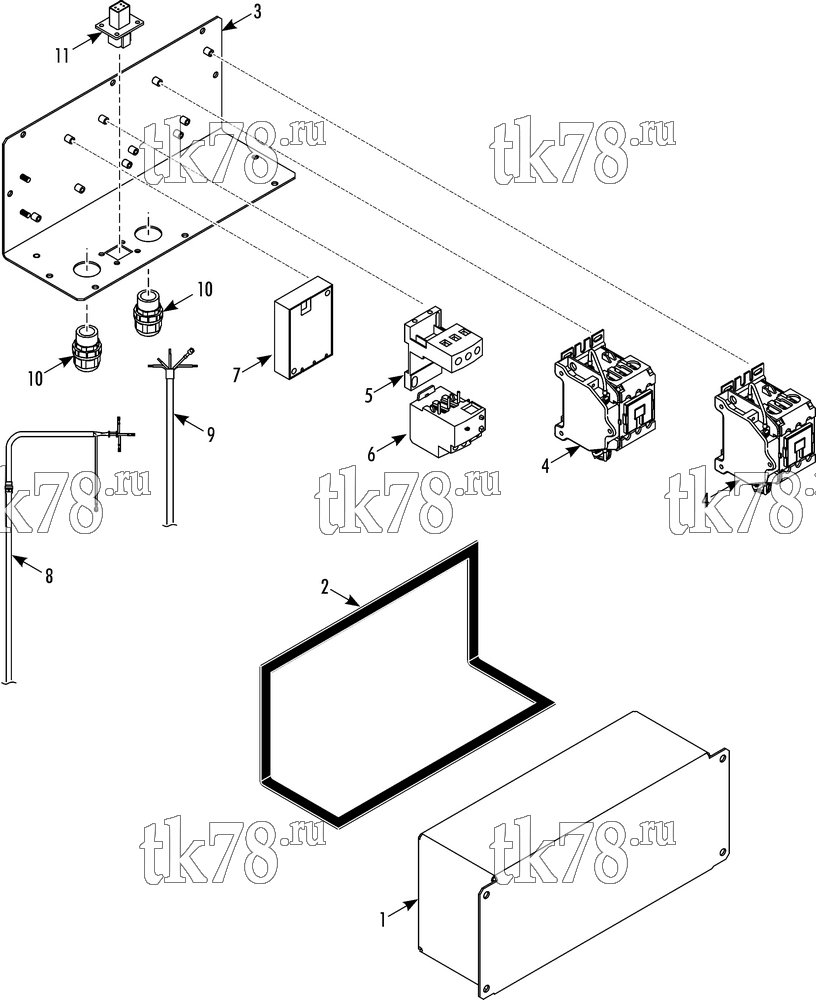

Установкa Thermo King UT-800 схема HIGH VOLTAGE BOX – 256G7
Обновление от: 6/1/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9471 | BOX - high voltage | 1 | |
| 55-8752 | INSERT - threaded | 10 | ||
| 2 | 33-4846 | GASKET - cover | 1 | |
| 3 | 92-9472 | TRAY - high voltage (cover) | 1 | |
| 4 | 41-9391 | CONTACTOR | 2 | |
| 55-9966 | SCREW - contactor | 8 | ||
| 5 | 41-6096 | ADAPTER - relay | 1 | |
| 6 | 41-6315 | RELAY - overload | 1 | |
| 55-8723 | SCREW - relay | 2 | ||
| 7 | 42-792 | SELECTOR - phase | 1 | |
| 8 | 42-346 | CABLE - power | 1 | |
| 9 | 42-347 | CABLE - motor | 1 | |
| 10 | 51-2177 | CONNECTOR - cable grip | 2 | |
| 11 | 41-7510 | RECEPTACLE - 9-pin | 1 |
