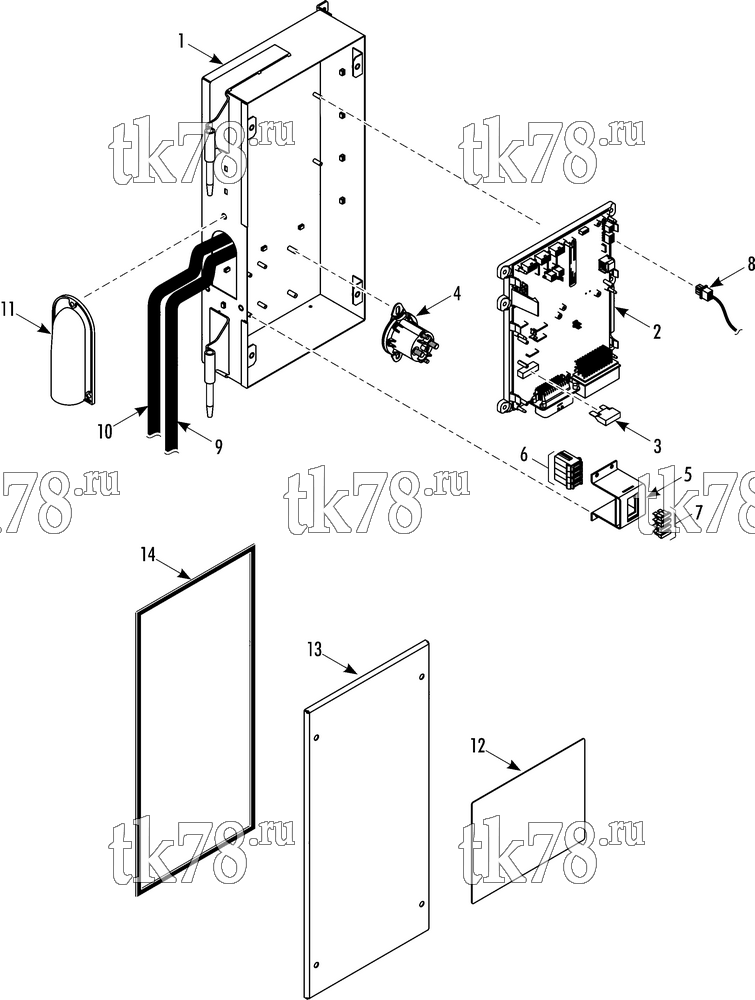

Установкa Thermo King UT-800 схема CONTROL BOX – 256G6
Обновление от: 5/10/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8866 | BOX - control | 1 | |
| 2 | 45-2361 | BOARD - controller (SR-3, see 250B2) | 1 | |
| 51-717 | NUT - board | 12 | ||
| 3 | 41-5786 | FUSE (40 amp) | 1 | |
| 4 | 41-7872 | SOLENOID - fan | 1 | |
|
10-41-7872 | Реле вентилятора, UT-800/1200 / UTS | 5 400 ₽ |
|
| 55-2086 | FLATWASHER | 2 | ||
| 5 | 92-9468 | BRACKET - fuse holder | 1 | |
| 6 | 41-8886 | HOLDER - fuse | 4 | |
| 7 | 41-2978 | FUSE (20 amp) | 4 | |
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 8 | 41-8742 | HARNESS-HMI | 1 | |
| 10-41-8742 | Проводка пульта управления, T-Series | 17 800 ₽ |
|
|
| 9 | 42-348 | HARNESS - evaporator | 1 | |
| 10 | 42-345 | HARNESS - main | 1 | |
| 41-8737 | SWITCH - on/off | 1 | ||
| 11 | 92-9470 | COVER - harness | 1 | |
| 51-718 | SCREW - cover | 3 | ||
| 12 | 92-8824 | NAMEPLATE - relay board | 1 | |
| 13 | 92-9469 | COVER - control box | 1 | |
| 14 | 33-4845 | GASKET - cover | 1 | |
| 55-9761 | SCREW - cover | 4 | ||
| 55-9144 | WASHER - sealing | 4 | ||
| 55-8782 | WASHER | 4 |
