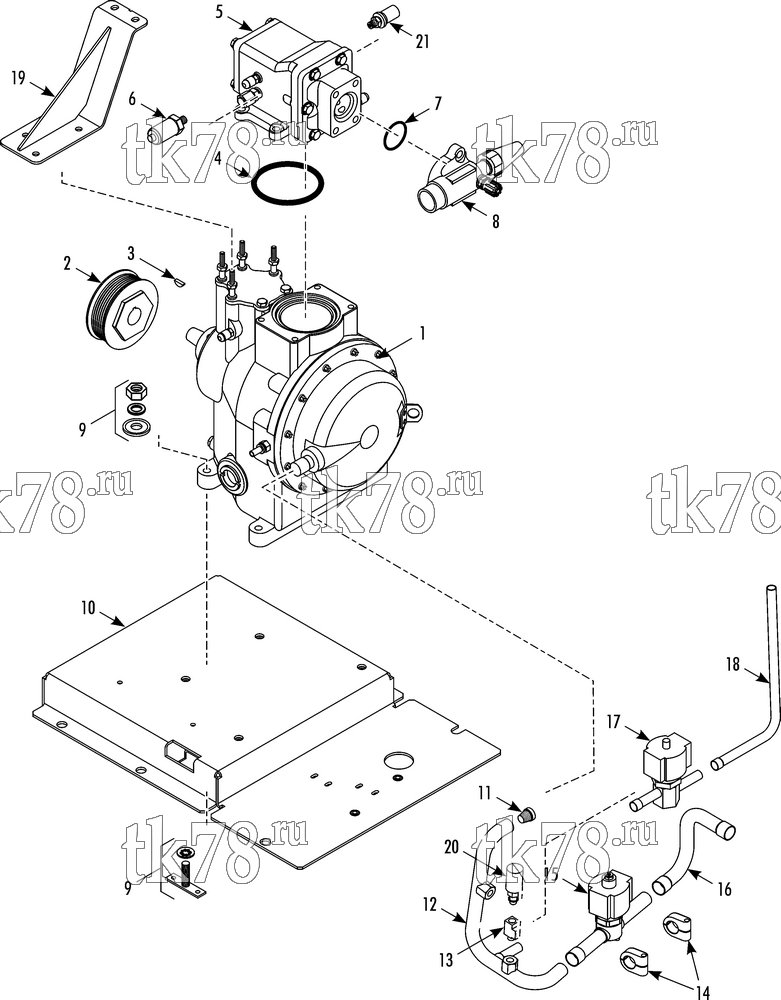

Установкa Thermo King UT-800 схема COMPRESSOR GROUP – 256F8
Обновление от: 6/1/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-951 | COMPRESSOR - scroll (see 191C1) | 1 | |
| 203-516 | OIL - compressor (1 liter) | A/R | ||
| 2 | 77-2633 | PULLEY - compressor (see 221E3) | 1 | |
| 55-1769 | SCREW - pulley | 1 | ||
| 55-8423 | WASHER - belleville | 1 | ||
| 55-4923 | WASHER | 1 | ||
| 3 | 55-5371 | KEY - pulley | 1 | |
| 4 | 33-1221 | O-RING - throttling valve | 1 | |
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 5 | 61-2462 | VALVE - throttling (38 psi, see 139E9) | 1 | |
| 55-129 | SCREW - valve | 4 | ||
| 55-896 | FLATWASHER | 4 | ||
| 6 | 41-7963 | TRANSDUCER - suction (200 psi) | 1 | |
| 10-42-1313 | Трансдюсер, T-Series | 6 050 ₽ |
|
|
| PP-42-1313 | Трансдюсер, T-Series | 1 990 ₽ |
|
|
| 7 | 33-230 | O-RING - suction valve | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 8 | 66-5492 | VALVE - suction | 1 | |
| 66-3015 | CAP - valve (brass, incl gasket) | 1 | ||
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| 33-350 | GASKET - cap | 1 | ||
| 55-129 | SCREW - valve | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-896 | FLATWASHER | 2 | ||
| 9 | 91-9469 | BOLTSTRIP | 4 | |
| 55-9439 | WASHER - retainer | 4 | ||
| 55-7122 | WASHER - Bellville | 4 | ||
| 55-5667 | WASHER | 4 | ||
| 55-8658 | NUT | 4 | ||
| 10 | 92-9460 | BRACKET - compressor | 1 | |
| 55-5022 | SCREW - bracket to frame | 2 | ||
| 55-7727 | LOCKWASHER | 4 | ||
| 55-7069 | FLATWASHER | 2 | ||
| 55-8471 | NUT | 4 | ||
| 11 | 61-5823 | STRAINER - in-line | 1 | |
| 12 | 61-5824 | TUBE compressor to CIS | 1 | |
| 66-6996 | FITTING - saddle | 1 | ||
| 13 | 55-665 | TEE | 1 | |
| 14 | 91-372 | CLAMP - tube | 2 | |
| 55-8993 | SCREW - clamp | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7170 | FLATWASHER | 2 | ||
| 15 | 61-4861 | VALVE - condenser inlet | 1 | |
| 16 | 61-5826 | TUBE - solenoid to coil | 1 | |
| 17 | 61-3401 | VALVE | 1 | |
|
10-61-9093 | Соленоид горячего газа, MD-II/RD-II/SB-III/SMX/UTS / T/UT-Series | 19 380 ₽ |
|
| 18 | 61-5825 | TUBE - solenoid to DPR | 1 | |
| 19 | 92-9461 | BRACKET - compressor | 1 | |
| 20 | 41-3846 | SWITCH - high pressure cutout | 1 | |
| 21 | 41-5246 | SWITCH - low pressure cutout | 1 |
