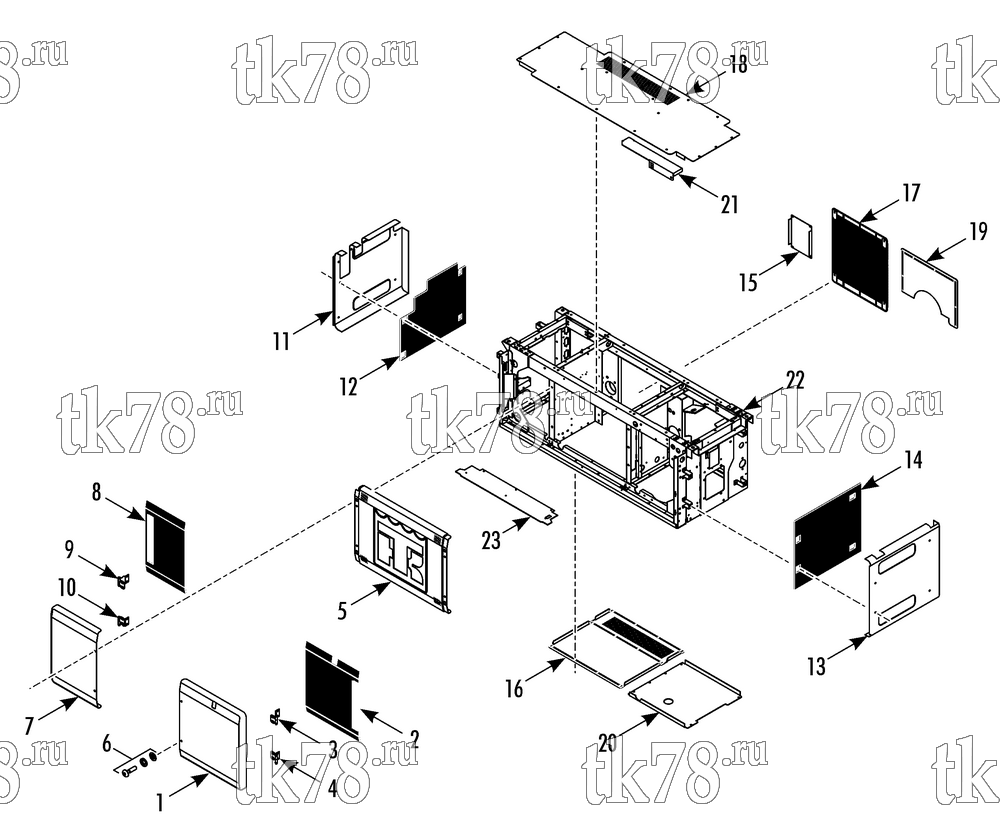

Установкa Thermo King UT-800 схема FRAME & PANEL GROUP – 256F7
Обновление от: 6/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8867 | DOOR - side (engine) | 1 | |
| 2 | 33-4847 | SOUND FOAM (engine door) | 1 | |
| 3 | 92-9473 | HINGE - door (engine side, top) | 1 | |
| 4 | 92-9474 | HINGE - door (engine side, bottom) | 1 | |
| 51-718 | SCREW - hinge | 4 | ||
| 5 | 98-8868 | DOOR - center | 1 | |
| 51-2178 | NUT | 2 | ||
| 51-2178 | RIVET - nut | 4 | ||
| 6 | 51-2282 | FASTNER - front door | 4 | |
| 51-1927 | SPRING - fastener | 4 | ||
| 51-2294 | RETAINER - fastener | 4 | ||
| 7 | 98-8869 | DOOR - side (compressor) | 1 | |
| 8 | 33-4850 | SOUND FOAM (compressor door) | 1 | |
| 9 | 92-9475 | HINGE - door (compressor side, top) | 1 | |
| 10 | 92-9476 | HINGE - door (compressor side, bottom) | 1 | |
| 51-718 | SCREW - hinge | 4 | ||
| 11 | 98-8871 | PANEL - compressor end | 1 | |
| 12 | 33-4849 | SOUND FOAM (compressor door, end) | 1 | |
| 13 | 98-8870 | PANEL - engine end | 1 | |
| 14 | 33-4848 | SOUND FOAM (engine door, end) | 1 | |
| 55-9761 | SCREW - end panels | 15 | ||
| 15 | 92-7138 | PANEL - compressor | 1 | |
| 16 | 98-8873 | PANEL - condenser (bottom) | 1 | |
| 17 | 98-7749 | SCREEN - rear | 1 | |
| 18 | 98-8875 | PANEL - top, front | 1 | |
| 19 | 98-8872 | PANEL - engine (rear) | 1 | |
| 20 | 98-8874 | PANEL - engine (bottom) | 1 | |
| 21 | 98-8876 | PANEL - top front | 1 | |
| 55-7035 | SCREW - panels | 66 | ||
| 55-7170 | LOCKWASHER | 66 | ||
| 55-7075 | FLATWASHER | 66 | ||
| 22 | 98-8865 | FRAME - condenser | 1 | |
| 55-9084 | INSERT - threaded | 80 | ||
| 33-489 | GROMMET (1.250 id) | 2 | ||
| 33-1371 | GROMMET (1.7 id) | 2 | ||
| 33-451 | GROMMET (.375 id) | 1 | ||
| 33-1770 | GROMMET (1.5 id) | 1 | ||
| 33-429 | GROMMET (.88 id) | 2 | ||
| 23 | 33-4851 | MAT - bottom | 1 |
