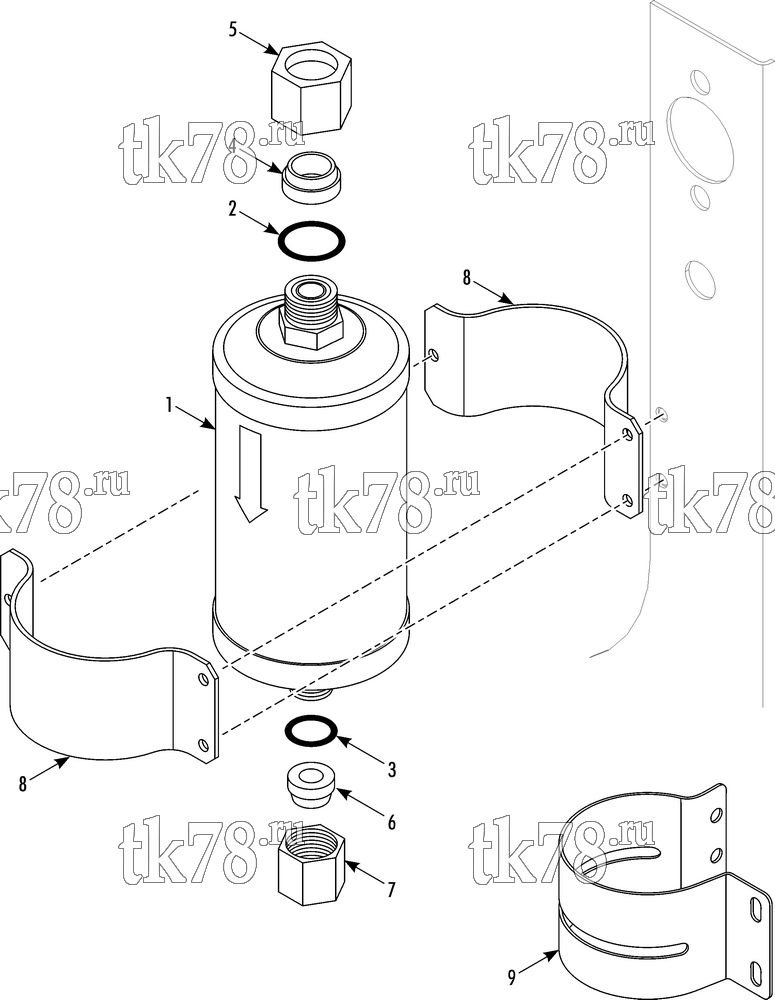

Установкa Thermo King UT-800 схема DRIER GROUP – 221E6
Обновление от: 5/1/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-600 | DEHYDRATOR (incl o-rings, #2 & 3) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 2 | 33-2115 | O-RING (5/8 id) | 1 | |
| 3 | 33-566 | O-RING (1/2 od) | 1 | |
| 4 | 55-6356 | SHOULDER (o-ring seal) | 1 | |
| 5 | 55-6396 | NUT (5/8) | 1 | |
| 6 | 55-6837 | SHOULDER (o-ring seal) | 1 | |
| 7 | 55-6838 | NUT (5/8) | 1 | |
| 8 | 92-6143 | SUPPORT - dehydrator | 2 | |
| 55-3098 | SCREW - bracket | 3 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 1 | ||
| 9 | 92-9481 | BRACKET - dehydrator (UT-1200/800) | 1 | |
| 51-718 | SCREW - bracket | 2 | ||
| 51-717 | NUT | 2 |
