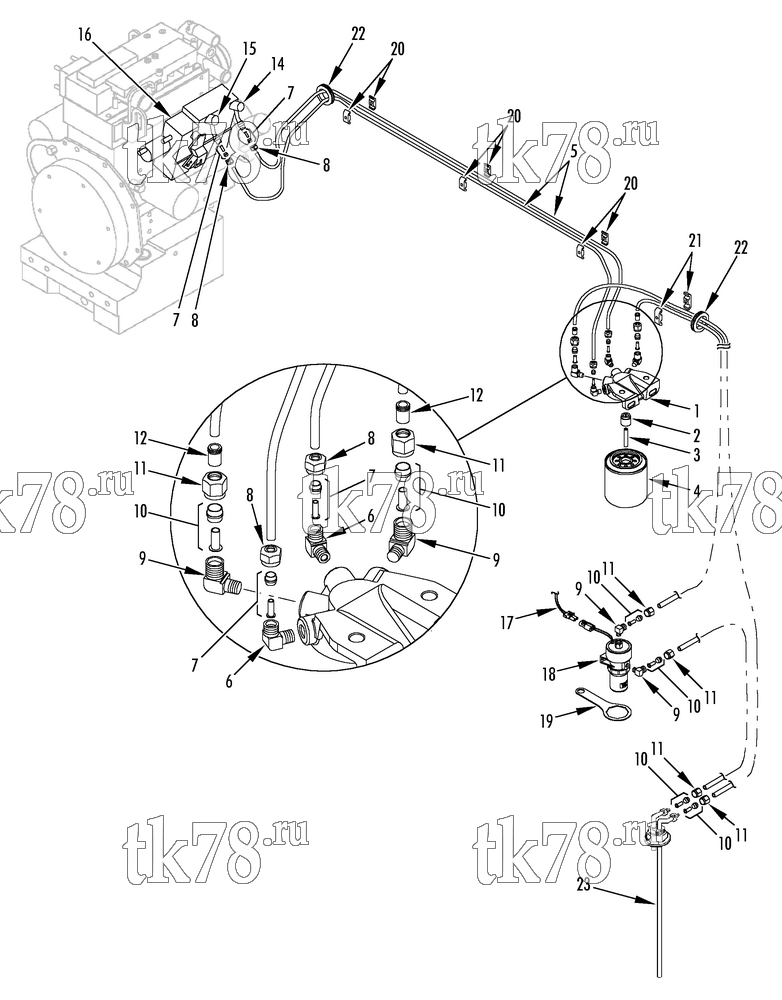

Установкa Thermo King UT-800 схема FUEL FILTER GROUP – 221B0
Обновление от: 5/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9015 | HEAD - filter | 1 | |
| 55-7828 | SCREW - head | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 2 | 11-9017 | SPUD - filter | 1 | |
| 3 | 11-9016 | SHAFT - water bleed | 1 | |
| 203-393 | SEALER - thread | A/R | ||
| 4 | 11-9342 | FILTER - fuel | 1 | |
|
US-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 1 740 ₽ |
|
|
10-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 690 ₽ |
|
|
11-9342 OEM | Фильтр топливный EMI 3000, SL/SLe/SLX/SLXe | по запросу |
|
| 5 | 11-9030 | HOSE - fuel (1/4 od x 35 ft lg) | A/R | |
| 6 | 11-5320 | ELBOW - hose (1/4) | 2 | |
| 7 | 10-243 | KIT - sleeve & eyelet (1/4) | A/R | |
| 8 | 11-4841 | NUT (1/4) | A/R | |
| 9 | 11-4380 | ELBOW - hose (3/8) | 1 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 10 | 10-242 | KIT - sleeve & eyelet (3/8) | 1 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 11 | 11-4941 | NUT (3/8) | 1 | |
| 12 | 11-8655 | FITTING 3/8 | 2 | |
| 13 | 11-4372 | HOSE - fuel (3/8 x 35 ft) | A/R | |
| 14 | 13-433 | JOINT - fuel (in, see 185F0) | 1 | |
| 15 | 13-434 | JOINT - fuel (return, see 185F0) | 1 | |
| 16 | 101-352 | PUMP - fuel injection (see 185F0) | 1 | |
| 17 | 41-3664 | HARNESS - fuel pump | 1 | |
| 18 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 850 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 9 870 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 9 460 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 19 | 204-1166 | WRENCH - fuel bowl | 1 | |
| 20 | 55-7119 | CLAMP - hose (1/4 x 1/4) | 6 | |
| 55-8464 | SCREW - clamp | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 21 | 91-2686 | CLAMP - hose (1/4 x 3/8) | 2 | |
| 22 | 33-489 | GROMMET | 2 | |
| 23 | 11-9279 | TUBE - fuel pickup | 1 | |
| 33-4402 | GASKET - fuel pickup (rubber) | 1 |
